CyberPower PDU30MVT24F 24-Outlets 1U Rackmount
Condition:New
Availability:Backorder

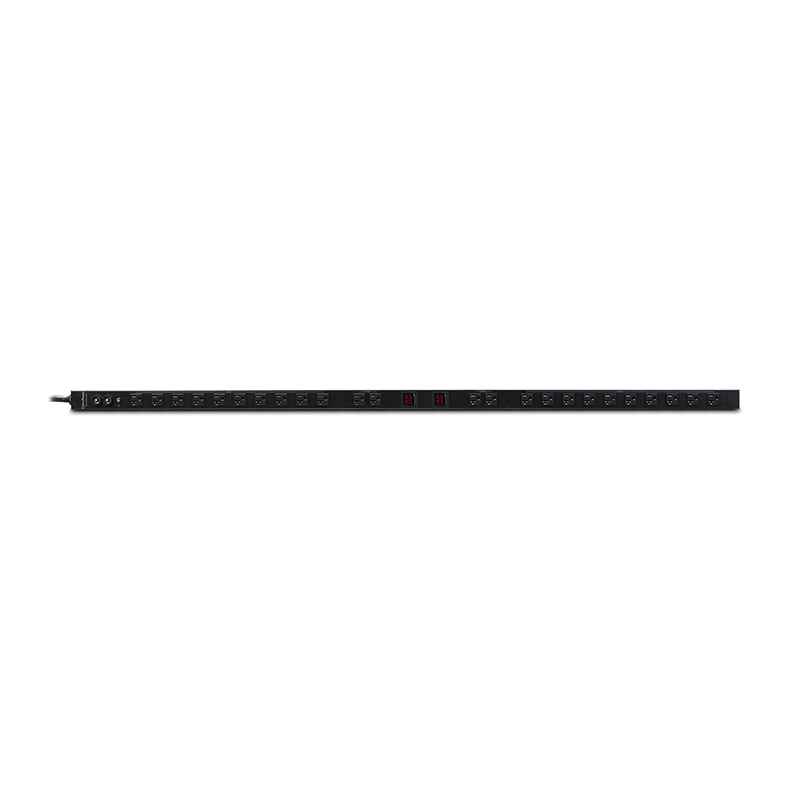

The CyberPower 24-outlet (24 Front) 0U vertical rack mount metered power distribution unit (PDU30MVT24F) provides 120V 30A output. It distributes power to 24 NEMA 5-20R receptacles from a single NEMA L5-30P twist lock plug, with unfiltered electrical pass-through. The current draw for connected equipment is displayed in amps on the front of two LCDs for real-time load monitoring.
Designed for datacenters and other electrically demanding applications, this unit has a rugged, industrial-grade metal housing and a 10-foot AC power cord. It supports vertical, horizontal and wall mount installation, includes a cord retention tray and is ETL/RoHS certified.
A Lifetime Warranty ensures that this PDU is free of defects in design, assembly, material and workmanship.
Typical Applications
- Servers
- Network Devices
- Telecom Equipment
FEATURES
- Metered PDU
- Real-Time Load Monitoring
- Industrial-Grade Metal Housing
- Lifetime Warranty
Certifications | |
Environmental | RoHS Compliant |
Safety | UL60950_1 certified by ETL.CSA C22.2 |
Environmental | |
Maximum Operating Elevation | 10,000 ft (3,000 m) |
Maximum Storage Elevation | 50,000 ft (15,000 m) |
Operating Humidity | 0 - 95% (non-condensing) |
Operating Temperature | 32 - 95 |
Storage Temperature | 5 - 113 |
Input | |
Cord Length | 10 ft |
Frequency | 50/60 Hz |
Maximum Current | 30A (derated to 24A) |
Plug Style | Straight, Twist Lock |
Plug Type | NEMA L5-30P |
Voltage | 100 - 125 V |
Output | |
Meter Readout | (2) Amperage |
Nominal Output Voltage | 100 - 125 V |
Outlet Type | NEMA 5-20R |
Outlets - Front | 24 |
Outlets - Total | 24 |
Overload Protection | 20A x 2 |
Physical | |
Adjustable Mounting Brackets | 3 sets (L-short, L-long, flat) |
Cord Retention Tray/Cord Organizers | Yes |
External Site Ground Pin | Yes |
Form Factors Supported | Vertical or horizontal mounting supported in wallmount applications racks and a variety of other surface types |
Rack Size | 0U |
Style | Rackmount, Vertical Rackmount Wallmount/Under-Counter |
Weight (lbs) | 11.4 lbs |
Warranty | |
Product Warranty | Limited lifetime |
