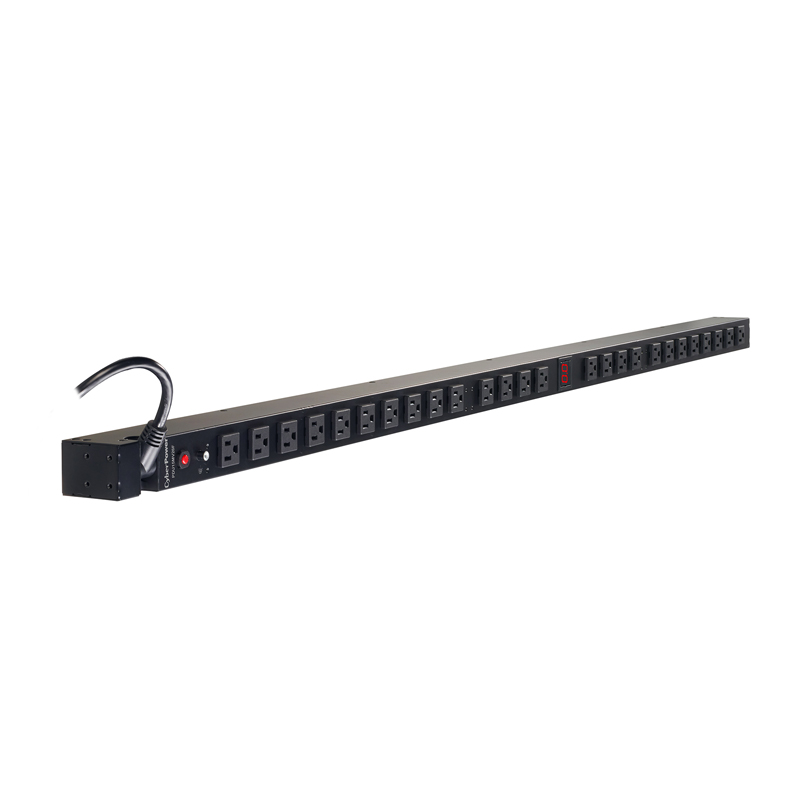

The CyberPower 26-outlet (26 Front) 0U vertical rack mount metered power distribution unit (PDU15MV26F) provides 120V 15A output. It distributes power to 26 NEMA 5-15R receptacles from a single NEMA 5-15P plug, with unfiltered electrical pass-through. The current draw for connected equipment is displayed in amps on the front LCD for real-time load monitoring.
Designed for datacenters and other electrically demanding applications, this unit has a rugged, industrial-grade metal housing and a 10-foot AC power cord. It supports vertical, horizontal and wall mount installation, includes a cord retention tray and is ETL/RoHS certified.
A Lifetime Warranty ensures that this PDU is free of defects in design, assembly, material and workmanship.
Typical Applications
Servers Network Devices Telecom Equipment FEATURES
- Metered PDU
- Real-Time Load Monitoring
- Industrial-Grade Metal Housing
- Lifetime Warranty
Download PDF datasheet for detailed product information
Certifications |
Environmental |
RoHS Compliant |
Safety |
UL1363 certified by ETL. CSA C22.2 |
Environmental |
Maximum Operating Elevation |
10,000 ft (3,000 m) |
Maximum Storage Elevation |
50,000 ft (15,000 m) |
Operating Humidity |
0 - 95% (non-condensing) |
Operating Temperature |
32 - 95 |
Storage Temperature |
5 - 113 |
Input |
Cord Length |
10 ft |
Frequency |
50/60 Hz |
Maximum Current |
15A (derated to 12A) |
Plug Style |
Straight |
Plug Type |
NEMA 5-15P |
Voltage |
100 - 125 V |
Output |
Meter Readout |
Amperage |
Nominal Output Voltage |
100 - 125 V |
Outlet Type |
NEMA 5-15R |
Outlets - Front |
26 |
Outlets - Total |
26 |
Overload Protection |
15A |
Physical |
Adjustable Mounting Brackets |
3 sets (L-short, L-long, flat) |
Cord Retention Tray/Cord Organizers |
Yes |
External Site Ground Pin |
Yes |
Form Factors Supported |
Vertical or horizontal mounting supported in wallmount applications racks and a variety of other surface types |
Rack Size |
0U |
Style |
Rackmount, Vertical Rackmount, Wallmount/Under-Counter |
Weight (lbs) |
9.5 lbs |
Warranty |
Product Warranty |
Limited lifetime |
