CyberPower PDU20M2F12R 14-Outlets 1U Rackmount Metered

CyberPower PDU20M2F12R 14-Outlets 1U Rackmount

Use coupon techie for a 5% discount

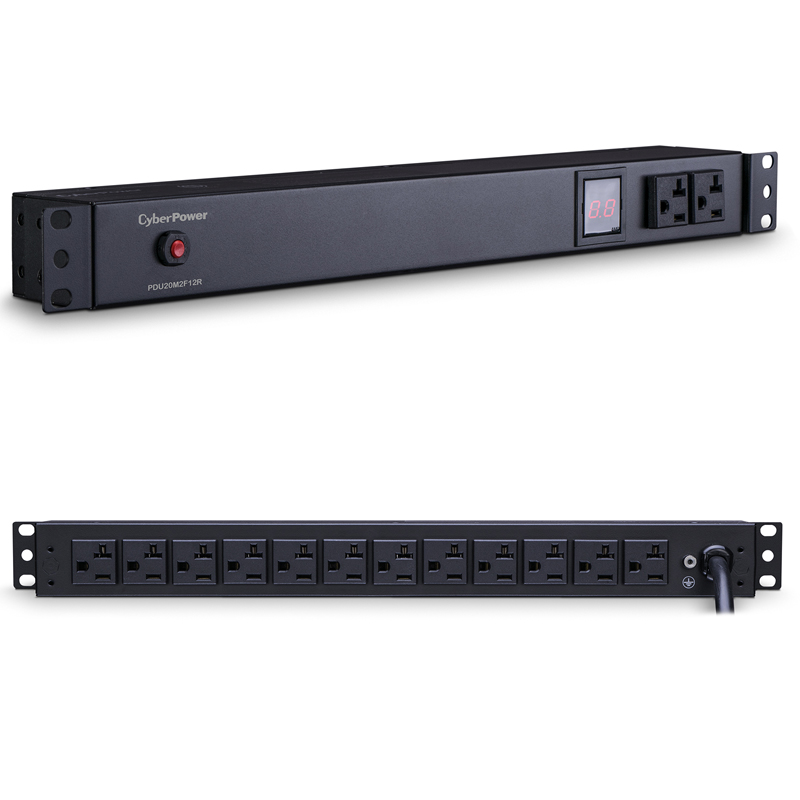

The CyberPower 14-outlet (2 Front and 12 Rear) rack mount metered power distribution unit (PDU20M2F12R) provides 120V 20A output. It distributes power to 14 NEMA 5-20R receptacles from a single NEMA 5-20P input, with unfiltered electrical pass-through. The current draw for connected equipment is displayed in amps on the front LCD for real-time load monitoring.

Designed for datacenters and other electrically demanding applications, this unit has a rugged, industrial-grade metal housing and a 15-foot AC power cord. It can be mounted either horizontally or vertically, includes a cord retention tray and is ETL/RoHS certified.

A Lifetime Warranty ensures that this PDU is free of defects in design, assembly, material and workmanship.

Typical Applications

  • Servers
  • Network Devices
  • Telecom Equipment

    • Metered PDU
    • Real-Time Load Monitoring
    • Industrial-Grade Metal Housing
    • Lifetime Warranty
    Download PDF datasheet for detailed product information
    Environmental RoHS Compliant
    Safety UL1363 certified by ETL, CSA C22.2
    Maximum Operating Elevation 10,000 ft (3,000 m)
    Maximum Storage Elevation 50,000 ft (15,000 m)
    Operating Humidity 0 - 95% (non-condensing)
    Operating Temperature 32 - 95
    Storage Temperature 5 - 113
    Cord Length 15 ft
    Frequency 50/60 Hz
    Maximum Current 20A (derated to 16A)
    Plug Style Straight
    Plug Type NEMA 5-20P
    Voltage 100 - 125 V
    Meter Readout Amperage
    Nominal Output Voltage 100 - 125 V
    Outlet Type NEMA 5-20R
    Outlets - Front 2
    Outlets - Rear 12
    Outlets - Total 14
    Overload Protection 20A
    Adjustable Mounting Brackets 2 sets (L-short, L-long)
    Cord Retention Tray/Cord Organizers Yes
    External Site Ground Pin Yes
    Form Factors Supported 1U rackmount, 0U vertical rackmount, undercounter installation supported
    Style Rackmount, Vertical Rackmount, Under-Counter
    Weight (lbs) 5.0 lbs
    Product Warranty Limited lifetime
