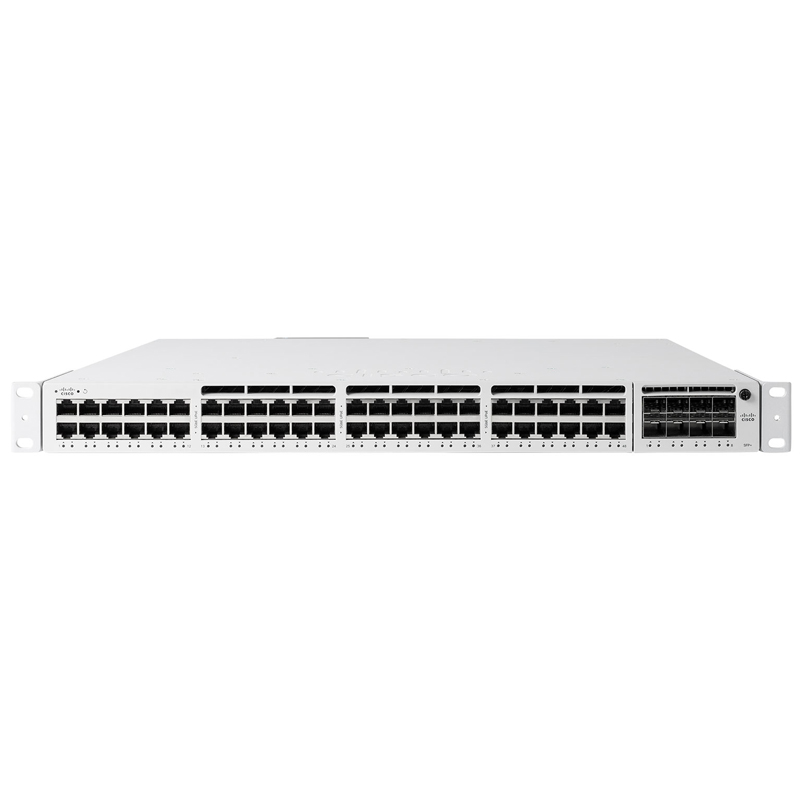

The Meraki MS390 addresses the most demanding enterprise applications by combining the simplicity of the Meraki dashboard with powerful switching hardware. To satisfy high-bandwidth applications and the deployment of high-speed 802.11ax/wifi-6 access points, the MS390 provides multigigabit ports, 480G stacking, and modular 10/40G uplinks. The MS390 delivers resiliency with fast stack convergence and StackPower. The MS390 provides Adaptive Policy using an overthe-wire tag which segments traffic into security groups to deliver scalable security. The MS390 is integrated under the Meraki dashboard to provide a simply powerful solution to the most demanding wired access applications.
Adaptive Policy provides simple & scalable security policies to segment traffic using Security Groups. Security Groups are created in the dashboard using natural language such as "IOT device" & "Guest." The security policy intent (e.g., Permit or Deny) is then simply provisioned between Security Groups which results in the segmentation of each group
Download PDF datasheet for detailed product information
| Features |
| 120G Hardware Stack Port |
2 |
| Dedicated Management Interface |
1 |
| Interfaces |
48 x 1GbE RJ45 |
| PoE/ UPoE Capabilities |
N/A |
| Uplink 10/40GbE (SFP+, QSFP+) |
Modular |
| Package Contents |
| In The Box |
1 x Power Supply (MA-PWR-350WAC), Rack mount brackets and screw kit, 3 x Pre-Installed Fans, Cable guide |
| Performance |
| Forwarding Rate |
190.48 Mpps |
| Stacking Bandwidth |
480 Gbps |
| Switching Capacity |
256 Gbps |
| Physical Specifications |
| Humidity |
5 to 90% |
| Dimensions (h X W X D) W/ Default Power Supply |
1.73 |
| Mount Type |
1U Rack Mount |
| Operating Temperature |
-5C to 45C |
| Weight |
16.43 lb (7.45 kg) |
| Power Options & Specifications |
| Available PoE W/ Primary PS |
N/A |
| Available PoE W/ Secondary PS*** |
N/A |
| Default Power Supply |
MA-PWR-350WAC |
| Hot Swap Power Supply |
Yes, Dual |
| MTBF Rating At 25C |
305870 |
| Power Load (idle/max) |
83.9 / 109.9W |
| Regulations and Compliance |
| Compatibility Certifications |
61000-3-2, EN61000-3-3, KN 32, TCVN 7189 Class A, EN 55032 , CISPR 32 Class A, V-2/2015.04, V-3/2015.04, VCCI-CISPR 32,Class A, CISPR24, EN 300 386 V1.6.1, EN 55024, KN35, TCVN 7317 |
| Electromagnetic |
FCC Part 15 (CFR 47) Class A, ICES-003 Class A, CISPR22 Class A, CNS13438, EN 300 386 V1.6.1, EN 55022 Class A, EN |
| Environmental |
Reduction of Hazardous Substances (RoHS) |
| Safety |
CAN/CSA-C22.2 No. 60950-1, UL 60950-1, EN 60950-1, IEC 60950-1, AS/NZS 60950.1 |
| Warranty |
Full Lifetime Hardware Warranty with next-day advanced replacement included |
