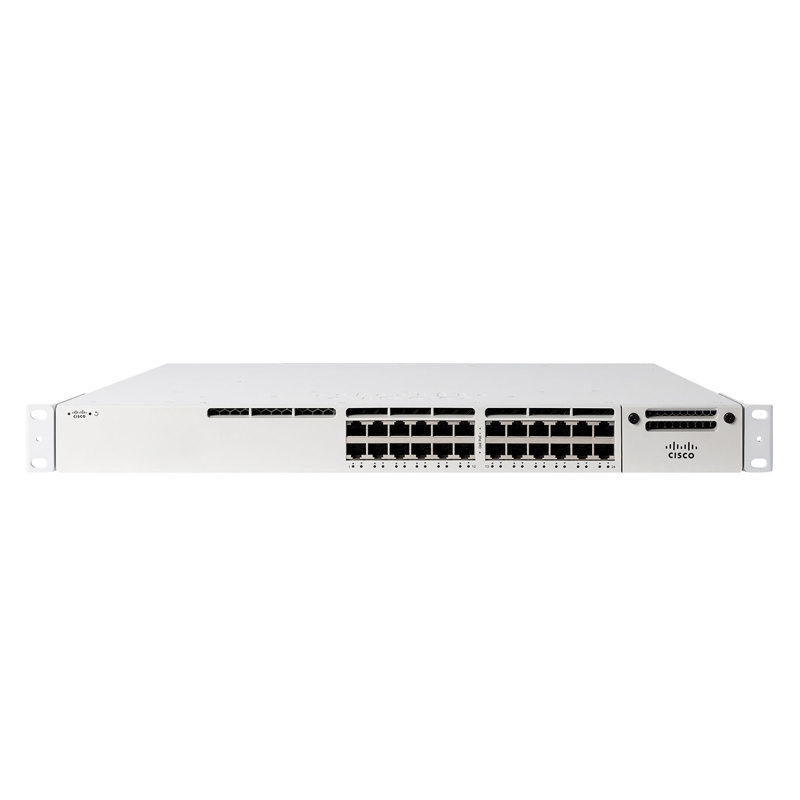

Meraki MS390 24GE L3 Switch (POE+) Appliances

Meraki MS390 24GE L3 Switch (POE+)

Use coupon getmeraki for a 10% discount on Meraki orders of $10,000 or more
Availability:In Stock

The Meraki MS390 addresses the most demanding enterprise applications by combining the simplicity of the Meraki dashboard with powerful switching hardware. To satisfy high-bandwidth applications and the deployment of high-speed 802.11ax/wifi-6 access points, the MS390 provides multigigabit ports, 480G stacking, and modular 10/40G uplinks. The MS390 delivers resiliency with fast stack convergence and StackPower. The MS390 provides Adaptive Policy using an overthe-wire tag which segments traffic into security groups to deliver scalable security. The MS390 is integrated under the Meraki dashboard to provide a simply powerful solution to the most demanding wired access applications.

Adaptive Policy provides simple & scalable security policies to segment traffic using Security Groups. Security Groups are created in the dashboard using natural language such as "IOT device" & "Guest." The security policy intent (e.g., Permit or Deny) is then simply provisioned between Security Groups which results in the segmentation of each group

Download PDF datasheet for detailed product information
120G Hardware Stack Port 2
Dedicated Management Interface 1
Interfaces 24 x 1GbE RJ45
PoE/ UPoE Capabilities PoE
Uplink 10/40GbE (SFP+, QSFP+) Modular
Package Contents
In The Box 1 x Power Supply (MA-PWR-350WAC), Rack mount brackets and screw kit, 3 x Pre-Installed Fans, Cable guide 1 x Power Supply (MA-PWR-715WAC), Rack mount brackets and screw kit, 3 x Pre-Installed Fans, Cable guide
Forwarding Rate 154.76 Mpps
Stacking Bandwidth 480 Gbps
Switching Capacity 208 Gbps
Physical Specifications
Humidity 5 to 90%
Dimensions (h X W X D) W/ Default Power Supply 1.73
Mount Type 1U Rack Mount
Operating Temperature -5C to 45C
Weight 16.33 lb (7.4 kg)
Power Options & Specifications
Available PoE W/ Primary PS 445W
Available PoE W/ Secondary PS*** 720W
Default Power Supply MA-PWR-715WAC
Hot Swap Power Supply Yes, Dual
MTBF Rating At 25C 299000
Power Load (idle/max) 84.1 / 554.4W
Regulations and Compliance
Compatibility Certifications 61000-3-2, EN61000-3-3, KN 32, TCVN 7189 Class A, EN 55032 , CISPR 32 Class A, V-2/2015.04, V-3/2015.04, VCCI-CISPR 32,Class A, CISPR24, EN 300 386 V1.6.1, EN 55024, KN35, TCVN 7317
Electromagnetic FCC Part 15 (CFR 47) Class A, ICES-003 Class A, CISPR22 Class A, CNS13438, EN 300 386 V1.6.1, EN 55022 Class A, EN
Environmental Reduction of Hazardous Substances (RoHS)
Safety CAN/CSA-C22.2 No. 60950-1, UL 60950-1, EN 60950-1, IEC 60950-1, AS/NZS 60950.1
Warranty Full Lifetime Hardware Warranty with next-day advanced replacement included
