Meraki MS120-8 1G L2 Cloud Managed 8x GigE Switch Appliances

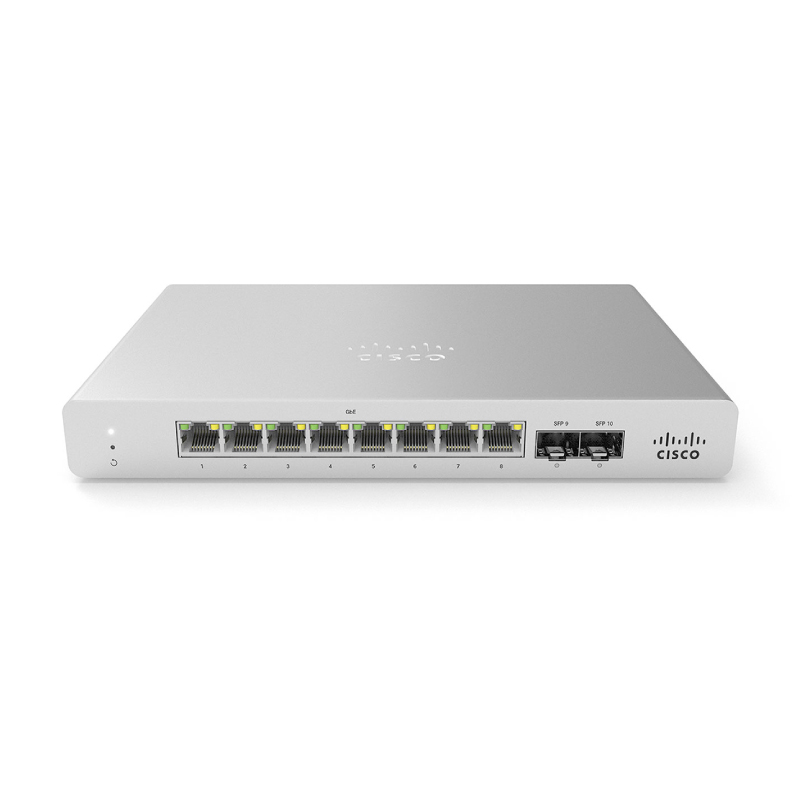

Meraki MS120-8 1G L2 Cloud Managed 8x GigE Switch

Use coupon getmeraki for a 10% discount on Meraki orders of $10,000 or more
Availability:In Stock

Available Options

Cisco Meraki MS120-8 compact switches provide Layer 2 access switching in a fanless, compact form factor. All models include 1GbE SFP ports for fiber uplink, integrated mounting brackets, and a Kensington security slot, making them ideal for rapid and secure deployment to branch location.

Cisco Meraki switches are built from the ground-up to be easily managed without compromising any of the power and flexibility traditionally found in enterprise-class switches.

Meraki switches are managed through an elegant, intuitive cloud interface, rather than through command line. To set up a Meraki switch, just plug it in; there's no need for complicated configuration files or even direct physical access to the switch.

Meraki's centralized management gives administrators deep visibility into the network and how it's used. For example, you can quickly see which switches are near capacity across hundreds of sites, or find all configuration changes made by a member of the team with instant search.

Operating Temperature 32 °F to 104 °F (0 °C to 40 °C), 45 °C, Humidity- 5 to 95% non-condensing, Fanless operation
Ethernet switching capabilities
Ethernet Switching Capabilities 802.1p Quality of Service, 8 queues and configurable DSCP to CoS mapping, 802.1Q VLAN and trunking support for up to 4,094 VLANs, 802.1w, 802.1D Rapid Spanning Tree Protocol (RSTP, STP), Broadcast storm control, IGMP Snooping, 802.1ab Link Layer Discovery Protocol (LLDP) and Cisco Discovery Protocol (CDP), 802.3ad Link aggregation with up to 8 ports per aggregate, Port mirroring, MAC forwarding entries- 16,000
Flexible stacking
Flexible Stacking Virtual Stacking supports thousands of switch ports in a single logical stack for unified management, monitoring, and configuration
Interface 8 x 10/100/1000BASE-T Ethernet RJ45 with auto negotiation and crossover detection (auto-MDIX crossover), 2 x SFP 1GbE uplink
Management Managed via the web with the Meraki cloud management platform, Integrated with Meraki wireless and complete portfolio of IT products and solutions, Zero-touch remote provisioning (no staging needed), Detailed historical per-port and per-client usage statistics, DHCP, client, and hostname fingerprinting, SNMP and Syslog support for integration with other network management solutions, Automatic firmware upgrades with scheduling control
Mounting Wall or utility board mountable with included mount hardware, Desktop-mountable with included feet, Kensington lock slot included
Switching Capacity 20Gbps, Forwarding rate- 14.88mpps with standard packet size, Jumbo frame support (9600 byte Ethernet frame), Flow control support
Physical dimensions (HxWxD)
Physical Dimensions (HxWxD) 1.75 x 8.97 x 8.58" (4.4 x 22.7 x 23cm)
Physical Weight
Physical Weight 3.42 lb (1.55 kg)
Power Input 100 - 240 VAC, 47-63 Hz, Power consumption- 5 - 161W, External power supply for MS120-8, MS120-8 LP
Power over Ethernet
Power Over Ethernet 124 W
Regulatory CSA-US (US, Canada), FCC (USA), IC (Canada), CE (Europe), RCM (Australia/New Zealand), RoHS
Remote Diagnostics
Remote Diagnostics Email, SMS and mobile push notification alerts, Cable testing and link failure detection with alerting, Live remote packet capture, Dynamic and interactive network discovery and topology, Combined event and configuration change logs with instant search
Security Integrated two-factor authentication for Dashboard management, Role-based access control (RBAC) with granular device and configuration control, SSO, Corporate-wide password policy enforcement, IEEE 802.1X RADIUS, hybrid authentication and RADIUS server testing, MAC-based RADIUS authentication (MAB), Port security- Sticky MAC, MAC whitelisting, DHCP snooping, detection and blocking, STP Enhancements include BPDU guard, Root guard, IPv4 ACLs
Warranty Full lifetime hardware warranty with next-day advanced replacement included
