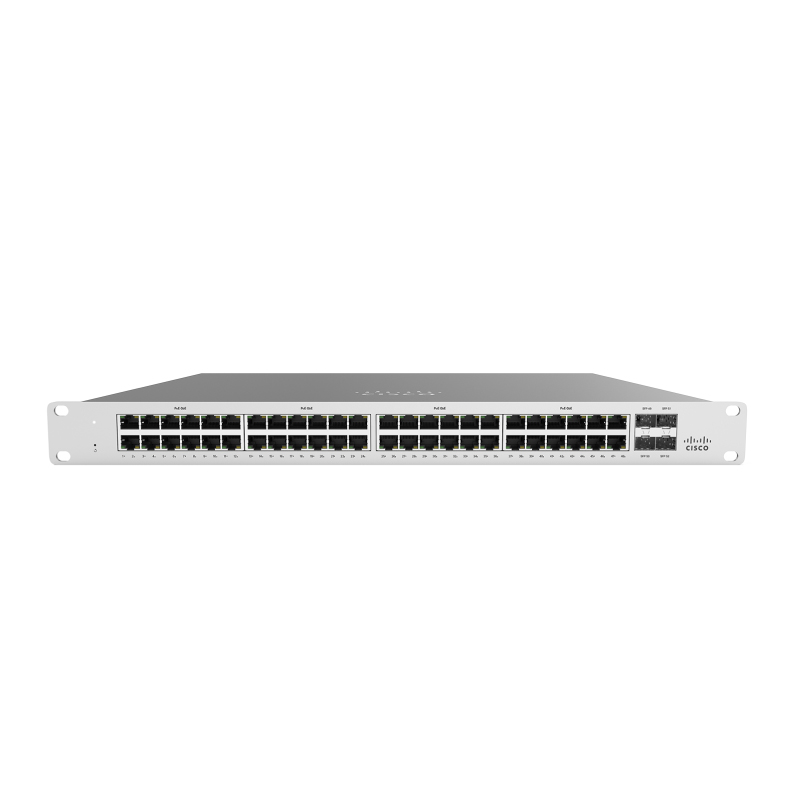

Cisco Meraki MS120 switches provide Layer 2 access switching ideal for branch and campus deployments. The MS120 series features a variety of power options designed to meet the diverse needs of large enterprise networks.Cisco Meraki switches are built from the ground up for cloud management without compromising any of the power and flexibility traditionally found in enterprise-class switches.
All Cisco Meraki switches are managed through an elegant, intuitive cloud interface, rather than a cryptic command line. To bring up a Meraki switch, simply plug it in. Meraki switches do not require CLI for switch configuration or port management. Meraki's centralized management platform gives administrators granular visibility into their network. Our dashboard helps you keep track of every configuration change in your network with our detailed event and change logs.
Download PDF datasheet for detailed product information
| Environment |
| Operating Temperature |
32 °F to 104 °F (0 °C to 40 °C), 45 °C, Humidity- 5 to 95% non-condensing, MS120-24, MS120-48 feature fanless operation |
| Ethernet switching capabilities |
| Ethernet Switching Capabilities |
802.1p Quality of Service, 8 queues and configurable DSCP to CoS mapping, 802.1Q VLAN and trunking support for up to 4,094 VLANs, 802.1w, 802.1D Rapid Spanning Tree Protocol (RSTP, STP), Broadcast storm control, 802.1ab Link Layer Discovery Protocol (LLDP) and Cisco Discovery Protocol (CDP), 802.3ad Link aggregation with up to 8 ports per aggregate., Port mirroring, IGMP snooping for multicast filtering, MAC forwarding entries- 16K on 24-port models, 32K on 48-port models |
| Interface |
| Interface |
24 x 10/100/1000BASE-T Ethernet RJ45 with auto negotiation and crossover detection (auto-MDIX crossover), 4 x SFP 1GbE uplink, RJ45 Management port |
| Layer 3 |
| Layer 3 |
DHCP Relay |
| Management |
| Management |
Managed via the web with the Meraki cloud management platform, Integrated with Meraki wireless and complete portfolio of IT products and solutions, Zero-touch remote provisioning (no staging needed), Virtual Stacking supports thousands of switch ports in a single logical stack for unified, management, monitoring, and configuration, Detailed historical per-port and per-client usage statistics, DHCP, client, and hostname fingerprinting, SNMPd and SYSLOG support for integration with other network management solutions, Automatic firmware upgrades with scheduling control |
| Mounting |
| Mounting |
1U Rack-mountable with included rack mount hardware, 2-post front mounting options available, Desktop-mountable with included feet |
| MTBF |
| MTBF |
660,538 |
| Performance |
| Switching Capacity |
56Gbps on 24-port models, 104Gbps on 48-port models, Forwarding rate- 41.67mpps on 24-port models, 77.38 mpps on 48-port models, Jumbo frame (9578 byte Ethernet frame), Flow control |
| Physical dimensions (HxWxD) |
| Physical Dimensions (HxWxD) |
1.72" x 17.32" x 13.38" (4.40 x 44 x 34cm) |
| Physical Weight |
| Physical Weight |
12.70 lb (5.70 kg) |
| Power |
| Power Input |
100 - 240 VAC, 47-63 Hz, Power consumption- 15 - 882W |
| Power over Ethernet |
| Power Over Ethernet |
740 W |
| Regulatory |
| Regulatory |
CSA-US (US, Canada), FCC (USA), IC (Canada), CE (Europe), RCM (Australia/New Zealand), RoHS |
| Remote Diagnostics |
| Remote Diagnostics |
Email, SMS and mobile push notification alerts , Cable testing and link failure detection with alerting, Live remote packet capture, Dynamic and interactive network discovery and topology, Combined event and configuration change logs with instant search |
| Security |
| Security |
Integrated two-factor authentication for dashboard management, Role-based access control (RBAC) with granular device and configuration control, SSO, corporate-wide password policy enforcement, IEEE 802.1X RADIUS, hybrid authentication and RADIUS server testing, MAC-based RADIUS authentication (MAB), Port security- Sticky MAC, MAC whitelisting, DHCP snooping, detection and blocking, STP Enhancements- BPDU guard, Root guard, IPv4 ACLs |
| Warranty |
| Warranty |
Full lifetime hardware warranty with next-day advanced replacement included |
