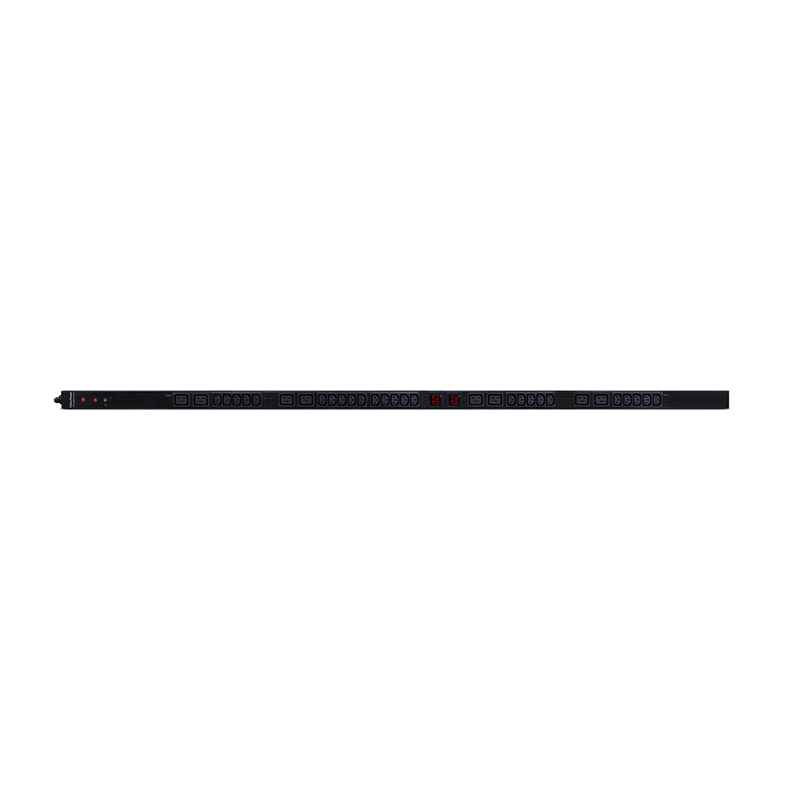

CyberPower PDU30MVHVT38F 38-Outlets 1U Rackmount Metered

CyberPower PDU30MVHVT38F 38-Outlets 1U Rackmount

$221.64
Use coupon techie for a 5% discount
Manufacturer:CyberPower
Model:PDU30MVHVT38F
Condition:New
Availability:In Stock

The CyberPower 38-outlet (38 Front) 0U vertical rack mount basic power distribution unit (PDU30MVHVT38F) provides 200/230V 30A output. It distributes power to 38 IEC-320 (8-C19 and 30-C13) receptacles from a single NEMA L6-30P twist lock plug, with unfiltered electrical pass-through. The current draw for connected equipment is displayed in amps on the front of two LCDs for real-time load monitoring.

Designed for datacenters and other electrically demanding applications, this unit has a rugged, industrial-grade metal housing and a 10-foot AC power cord. It supports vertical, horizontal and wall mount installation, includes a cord retention tray and is ETL/RoHS certified.

A Lifetime Warranty ensures that this PDU is free of defects in design, assembly, material and workmanship.

Typical Applications

  • Servers
  • Network Devices
  • Telecom Equipment

FEATURES

  • Metered PDU
  • Real-Time Load Monitoring
  • Industrial-Grade Metal Housing
  • Lifetime Warranty
Certifications
Environmental RoHS Compliant
Safety UL60950_1 certified by ETL.CSA C22.2
Environmental
Maximum Operating Elevation 10,000 ft (3,000 m)
Maximum Storage Elevation 50,000 ft (15,000 m)
Operating Humidity 0 - 95% (non-condensing)
Operating Temperature 32 - 95
Storage Temperature 5 - 113
Input
Cord Length 10 ft
Frequency 50/60 Hz
Maximum Current 20A (derated to 16A)
Plug Style Straight, Twist Lock
Plug Type NEMA L6-20P
Voltage 200 - 230 V
Output
Meter Readout Amperage
Nominal Output Voltage 200 - 230 V
Outlet Type IEC-320 C19 (8)/C13 (30)
Outlets - Front 8
Outlets - Total 38
Overload Protection 16A
Physical
Adjustable Mounting Brackets 3 sets (L-short, L-long, flat)
Cord Retention Tray/Cord Organizers Yes
External Site Ground Pin Yes
Form Factors Supported Vertical or horizontal mounting supported in wallmount applications racks and a variety of other surface types
Rack Size 0U
Style Rackmount,Vertical Rackmount Wallmount/Under-Counter
Weight (lbs) 10.2 lbs
Warranty
Product Warranty Limited lifetime
