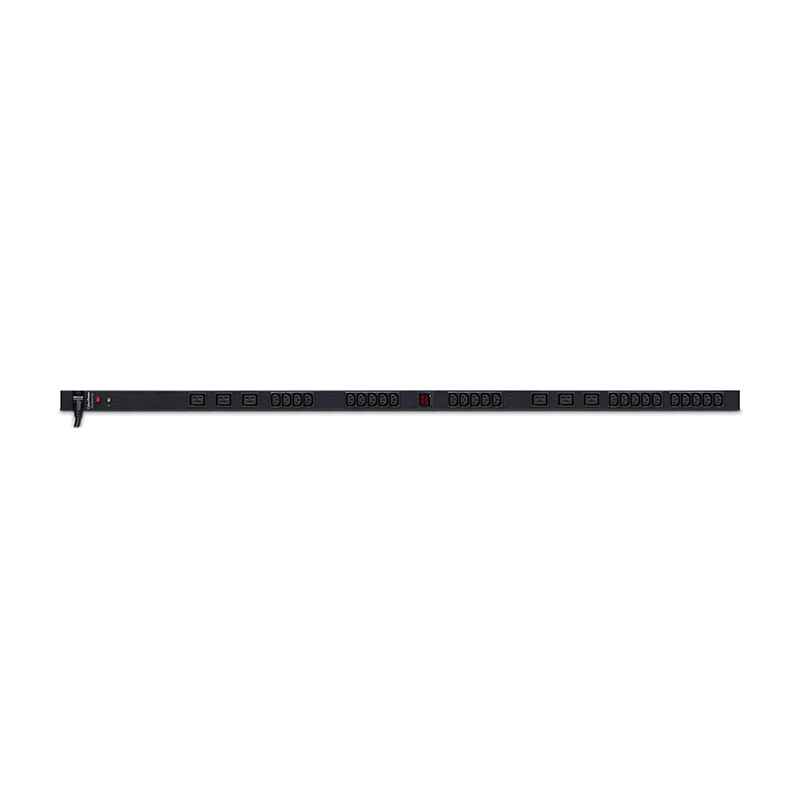

The CyberPower 30-outlet (30 Front) 0U vertical rack mount basic power distribution unit (PDU20MVHVT30F) provides 200-230V 20A output. It distributes power to 30 IEC-320 (6-C19 and 24-C13) receptacles from a single NEMA L6-20P twist lock plug, with unfiltered electrical pass-through. The current draw for connected equipment is displayed in amps on the front LCD for real-time load monitoring.
Designed for datacenters and other electrically demanding applications, this unit has a rugged, industrial-grade metal housing and a 10-foot AC power cord. It supports vertical, horizontal and wall mount installation, includes a cord retention tray and is ETL/RoHS certified.
A Lifetime Warranty ensures that this PDU is free of defects in design, assembly, material and workmanship.
Typical Applications
- Servers
- Network Devices
- Telecom Equipment
FEATURES
- Metered PDU
- Real-Time Load Monitoring
- Industrial-Grade Metal Housing
- Lifetime Warranty
Download PDF datasheet for detailed product information
Certifications |
Environmental |
RoHS Compliant |
Safety |
UL60950_1 certified by ETL.CSA C22.2 |
Environmental |
Maximum Operating Elevation |
10,000 ft (3,000 m) |
Maximum Storage Elevation |
50,000 ft (15,000 m) |
Operating Humidity |
0 - 95% (non-condensing) |
Operating Temperature |
32 - 95 |
Storage Temperature |
5 - 113 |
Input |
Cord Length |
10 ft |
Frequency |
50/60 Hz |
Maximum Current |
20A (derated to 16A) |
Plug Style |
Straight, Twist Lock |
Plug Type |
NEMA L6-20P |
Voltage |
200 - 230 V |
Output |
Meter Readout |
Amperage |
Nominal Output Voltage |
200 - 230 V |
Outlet Type |
IEC-320 C19 (6)/C13 (24) |
Outlets - Front |
6 |
Outlets - Total |
30 |
Overload Protection |
16A |
Physical |
Adjustable Mounting Brackets |
3 sets (L-short, L-long, flat) |
Cord Retention Tray/Cord Organizers |
Yes |
External Site Ground Pin |
Yes |
Form Factors Supported |
Vertical or horizontal mounting supported in wallmount applications racks and a variety of other surface types |
Rack Size |
0U |
Style |
Rackmount,Vertical Rackmount Wallmount/Under-Counter |
Weight (lbs) |
9.0 lbs |
Warranty |
Product Warranty |
Limited lifetime |
