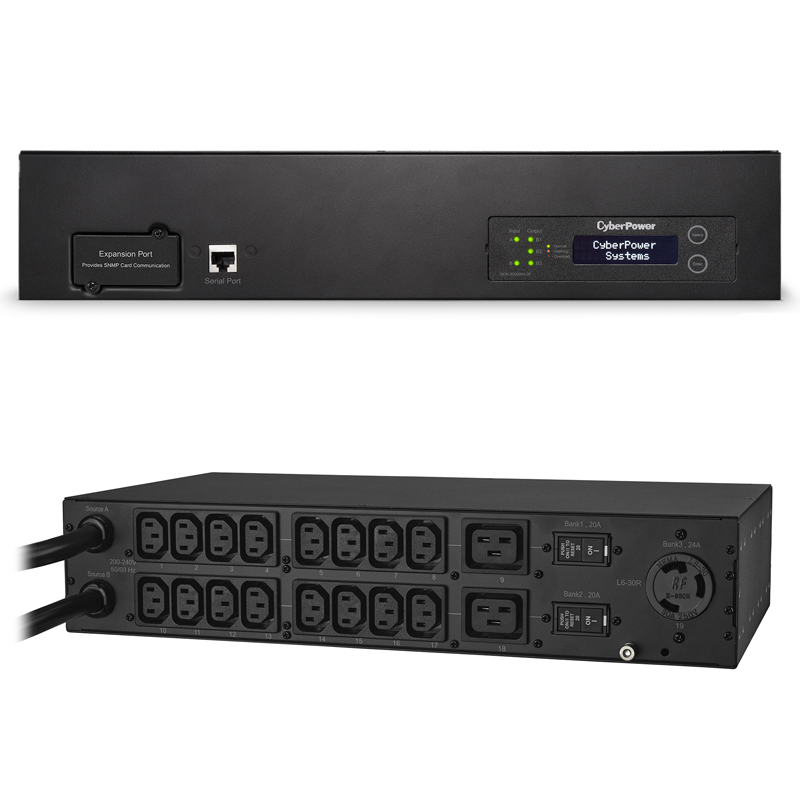

CyberPower PDU30MHVT19AT 19-Outlets 2U Rackmount Metered ATS

CyberPower PDU30MHVT19AT 19-Outlets 2U Rackmount

Use coupon techie for a 5% discount
Availability:In Stock

The CyberPower PDU30MHVT19AT, 19-outlet 2U rack mount metered auto transfer switch (ATS) power distribution unit (PDU), provides 200-240V / 30A output. Dual power cords can be plugged into separate power sources to provide redundancy to single-corded connected equipment. If power for the primary source exceeds the lower or upper thresholds, or if power fails, the PDU will switch to the secondary power source to ensure continuous operation.

The LCD provides local monitoring of the PDU. Perform load management by using the display to measure the electrical current used by connected equipment.

The PDU30MHVT19AT includes a SNMP/HTTP card slot for adding an optional RMCARD allowing users to have real-time monitoring of the ATS PDU.

A Three-Year Warranty ensures that this PDU is free of defects in design, assembly, material and workmanship.

Typical Applications

  • Servers
  • Network Devices
  • Telecom Equipment


  • Metered Auto Transfer Switch PDU
  • Digital Real-Time Display
  • SNMP/HTTP Card Slot
  • Network-Grade Plugs
  • Durable Metal Housing
  • Three-Year Warranty
Environmental RoHS Compliant
Safety UL60950_1 certified by ETL.CSA C22.2.FCC Class A
Connectivity Serial (RJ45)
SNMP / HTTP Remote Monitoring Optional RMCARD205
Maximum Operating Elevation 13,100 ft (4,000 m)
Maximum Storage Elevation 50,000 ft (15,000 m)
Operating Humidity 0
Operating Temperature 32
Storage Temperature 5
Thermal Dissipation 14 BTU/hr
Cord Length 10 ft
Frequency 50/60 Hz
Maximum Current 30A (derated to 24A)
Nominal Input Voltage 200
Plug Style Straight, Twist Lock
Plug Type 2
LCD Readout KW.Voltage.Amperage.Network Information.HW/FW Version
LED Indicators Input.Output Load
Nominal Output Voltage 200
Outlet Banks 2
Outlet Type IEC-320 (16) C13 / (2) C19 & (1) NEMA L6-30R
Overload Protection (Each Bank) 20A
Adjustable Mounting Brackets 1 set
Cord Retention Tray/Cord Organizers Yes
External Site Ground Pin Yes
Form Factors Supported 2U rackmount
Rack Size 2U
Style Rackmount
Weight (lbs) 15.43 lbs
Product Warranty 3 Years
