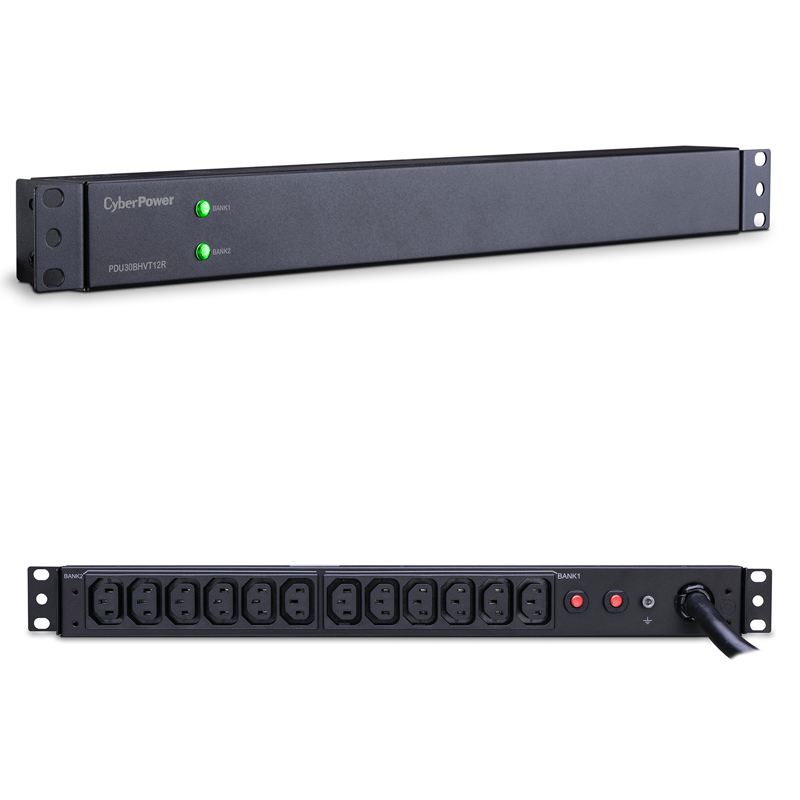

The CyberPower 12-outlet (12 Rear) rack mount basic power distribution unit (PDU30BHVT12R) provides 200V/230V 30A output. It distributes power to 12 IEC-320 C13 receptacles from a single NEMA L6-30P twist lock plug, with unfiltered electrical pass-through.
Designed for datacenters and other electrically demanding applications, this unit has a rugged, industrial-grade metal housing and a 10-foot AC power cord. It supports vertical, horizontal and wall mount installation, includes a cord retention tray and is ETL/RoHS certified.
A Lifetime Warranty ensures that this PDU is free of defects in design, assembly, material and workmanship.
Typical Applications
- Servers
- Network Devices
- Telecom Equipment
FEATURES
- Basic PDU
- Switch-Free Design
- Industrial-Grade Metal Housing
- Lifetime Warranty
| Certifications |
| Environmental |
RoHS Compliant |
| Safety |
UL60950_1 certified by ETLCSA C22.2 |
| Environmental |
| Maximum Operating Elevation |
10,000 ft (3,000 m) |
| Maximum Storage Elevation |
50,000 ft (15,000 m) |
| Operating Humidity |
0 |
| Operating Temperature |
32 |
| Storage Temperature |
5 |
| Input |
| Cord Length |
10 ft |
| Frequency |
50/60 Hz |
| Maximum Current |
30A (derated to 24A) |
| Plug Style |
Straight, Twist Lock |
| Plug Type |
NEMA L6-30P |
| Voltage |
200 |
| Output |
| LED Indicators |
Bank 1 (Green) |
| Nominal Output Voltage |
200 |
| Outlet Type |
IEC-320 C13 |
| Overload Protection |
16A x 2 |
| Physical |
| Adjustable Mounting Brackets |
2 sets (L-short, L-long) |
| Cord Retention Tray/Cord Organizers |
Yes |
| External Site Ground Pin |
Yes |
| Form Factors Supported |
1U rackmount. 0U vertical rackmount undercounter installation supported |
| Rack Size |
1U |
| Style |
Rackmount,Vertical Rackmount Under-Counter |
| Weight (lbs) |
4.4 lbs |
| Warranty |
| Product Warranty |
Limited lifetime |
