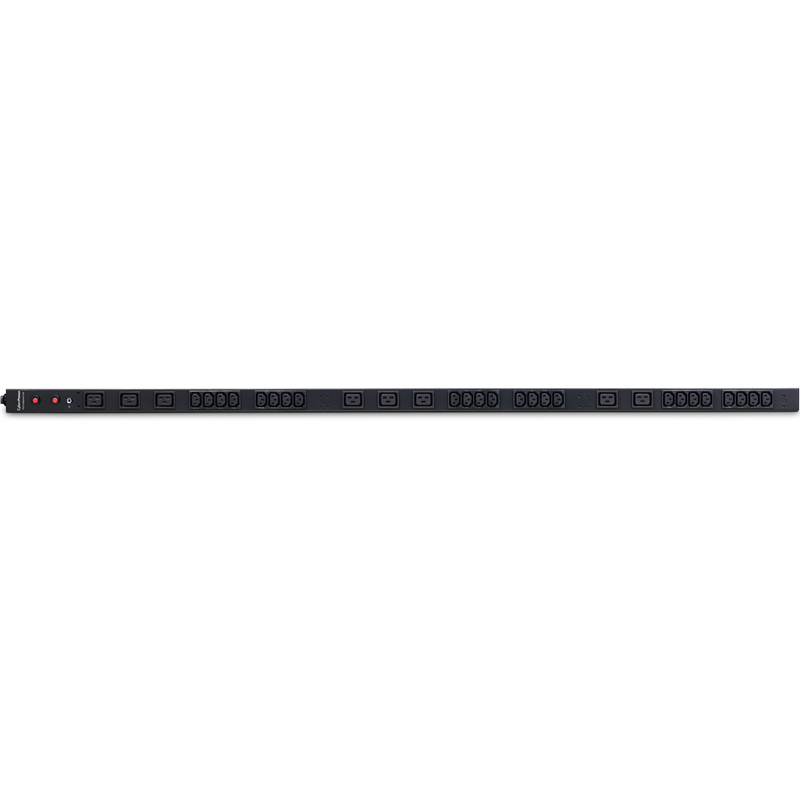

The CyberPower 32-outlet (32 Front) 0U vertical rack mount basic power distribution unit (PDU30BVHVT32F) provides 200/230V 30A output. It distributes power to 32 IEC-320 (8-C19 and 24-C13) receptacles from a single NEMA L6-30P twist lock plug, with unfiltered electrical pass-through.
Designed for datacenters and other electrically demanding applications, this unit has a rugged, industrial-grade metal housing and a 10-foot AC power cord. It supports vertical, horizontal and wall mount installation, includes a cord retention tray and is ETL/RoHS certified.
A Lifetime Warranty ensures that this PDU is free of defects in design, assembly, material and workmanship.
Typical Applications
- Servers
- Network Devices
- Telecom Equipment
FEATURES
- Basic PDU
- Switch-Free Design
- Industrial-Grade Metal Housing
- Lifetime Warranty
| Certifications |
| Environmental |
RoHS Compliant |
| Safety |
UL60950_1 certified by ETL.CSA C22.2 |
| Environmental |
| Maximum Operating Elevation |
10,000 ft (3,000 m) |
| Maximum Storage Elevation |
50,000 ft (15,000 m) |
| Operating Humidity |
0 - 95% (non-condensing) |
| Operating Temperature |
32 - 95 |
| Storage Temperature |
5 - 113 |
| Input |
| Cord Length |
10 ft |
| Frequency |
50/60 Hz |
| Maximum Current |
30A (derated to 24A) |
| Plug Style |
Straight, Twist Lock |
| Plug Type |
NEMA L6-30P |
| Voltage |
200 - 230 V |
| Output |
| Nominal Output Voltage |
200 - 230 V |
| Outlet Type |
IEC-320 C19 (8)/C13 (24) |
| Outlets - Front |
8 |
| Outlets - Total |
32 |
| Overload Protection |
16A x 2 |
| Physical |
| Adjustable Mounting Brackets |
3 sets (L-short, L-long, flat) |
| Cord Retention Tray/Cord Organizers |
Yes |
| External Site Ground Pin |
Yes |
| Form Factors Supported |
Vertical or horizontal mounting supported in wallmount applications racks and a variety of other surface types |
| Rack Size |
0U |
| Style |
Rackmount.Vertical Rackmount.Wallmount/Under-Counter |
| Weight (lbs) |
9.6 lbs |
| Warranty |
| Product Warranty |
Limited lifetime |
