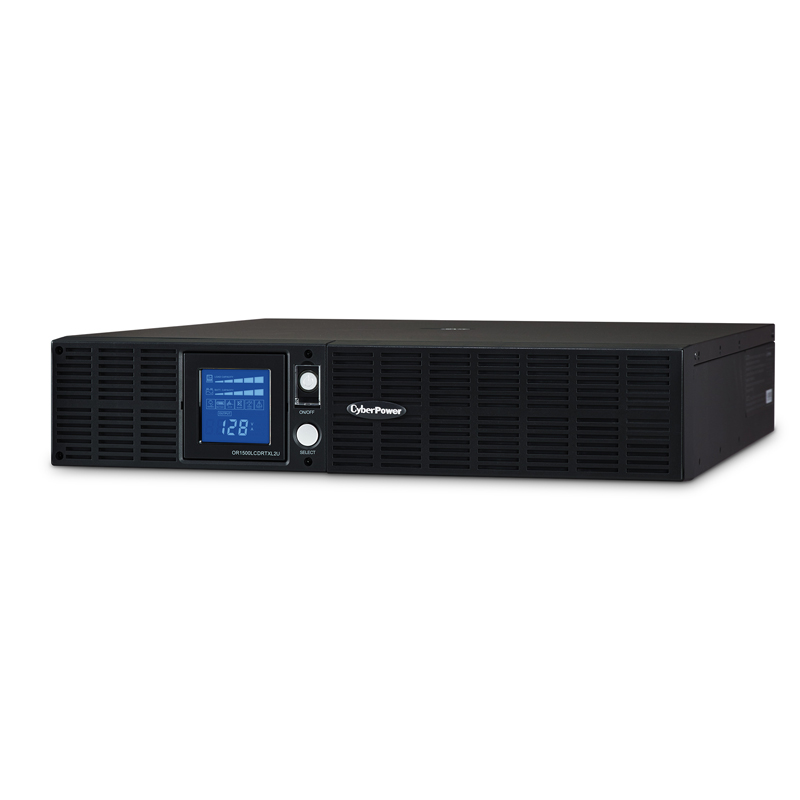

The CyberPower Smart App Intelligent LCD OR1500LCDRTXL2U uninterruptible power supply (UPS) is designed to protect office servers, corporate and departmental networks, and network-based appliances such as internetworking hardware, telecom equipment and high-end workstations.
Its automatic voltage regulation (AVR) technology delivers a consistent and clean AC power, protecting connected equipment and preventing costly business interruptions.
This UPS system is ENERGY STAR qualified with patented GreenPower UPS Bypass circuitry to save on energy costs by reducing energy consumption and heat buildup.
A Three-Year Warranty ensures that this UPS has passed our highest quality standards in design, assembly, material or workmanship and further protection is offered by a $300,000 Connected Equipment Guarantee.
Typical Applications
- Servers
- Workstations
- Network Devices
- Telecom Equipment
Features
- 1500VA / 1125W
- Line Interactive Topology
- Full AVR Buck/Boost
- GreenPower UPS
- 2U Rack Mount/Tower Convertible
- Multifunction Rotatable LCD
- SNMP/HTTP Remote Management
- 8 Outlets / USB, Serial, and EPO Ports
- EMI/RFI Filters
- PowerPanel Business Software
- 3-Year Warranty
| Battery |
| Battery Quantity |
4 |
| Battery Size |
12V/7Ah |
| Battery Type |
Sealed Lead-Acid |
| Extended Battery Option |
BP48V75ART2U |
| Replacement Battery Cartridge |
RB1270X4B |
| Replacement Battery Cartridge Quantity |
1 |
| Runtime At Full Load |
7 Minutes |
| Runtime At Half Load |
18 Minutes |
| Typical Recharge Time |
8 hours |
| User Replaceable |
Yes |
| Certifications |
| Environmental |
RoHS Compliant |
| Safety |
UL1778, cUL 107.3, FCC DOC Class B |
| Environmental |
| Operating Humidity |
0 |
| Operating Temperature |
32 |
| General |
| Energy Saving |
GreenPower UPS Bypass |
| UPS Topology |
Line Interactive |
| Input |
| Cord Length |
10 ft |
| Frequency Range |
47 |
| Plug Style |
Straight |
| Plug Type |
NEMA 5-15P |
| Voltage |
90 |
| Management & Communications |
| Audible Alarms |
On Battery.Low Battery.Overload |
| HID Compliant USB Port |
Yes |
| Led Indicators |
Power On.Wiring Fault |
| Management Cable |
USB Cable.Serial Cable (2) |
| Multifunction LCD Panel |
Displays |
| Serial Port |
Yes (2x) |
| SNMP / HTTP Remote Monitoring |
Yes, with optional RMCARD205 |
| Software |
PowerPanel Business Edition |
| Output |
| Automatic Voltage Regulation |
Yes |
| On Battery Frequency |
60 Hz |
| On Battery Voltage |
120 VAC |
| On Battery Waveform |
Simulated Sine Wave |
| Outlet Type |
NEMA 5-15R |
| Overload Protection |
Internal Circuitry Limiting.Circuit Breaker |
| Transfer Time |
4 ms |
| VA |
1,500 VA |
| Watts |
1,125 W |
| Physical |
| Form Factor |
Rack/Tower |
| Rack Size |
2U |
| Weight (lbs) |
59.5 lbs |
| Surge Protection & Filtering |
| Coax Protection RG6 |
1-In, 1-Out |
| Phone Protection RJ11 |
1-In, 1-Out (combo) |
| Surge Suppression |
1,840 J |
| Warranty |
| CEG Amount |
300000 |
| Connected Equipment Guarantee |
Lifetime |
| Product Warranty |
3 Years Limited |
