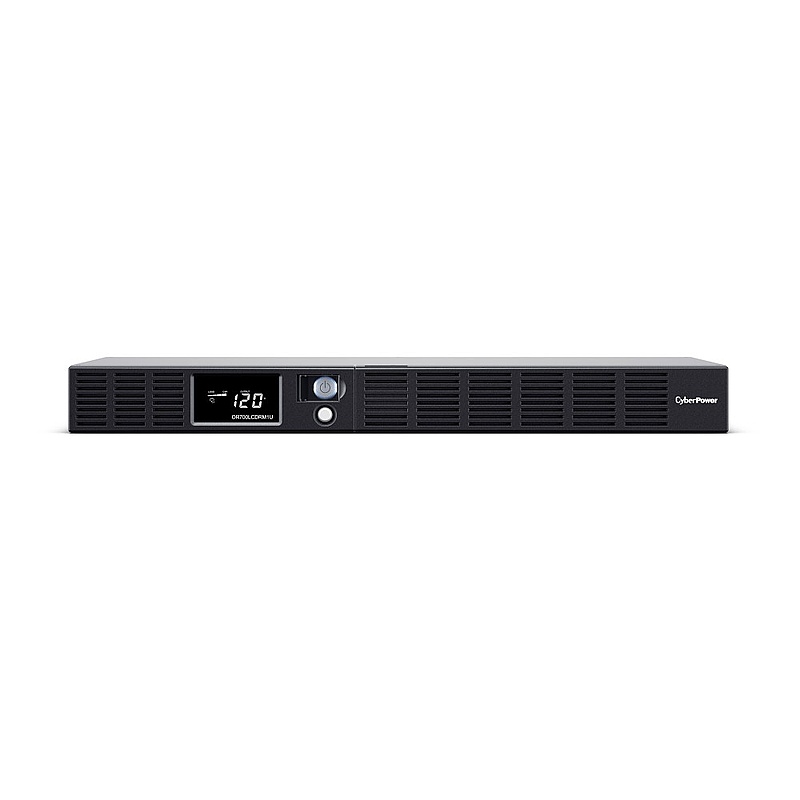

The CyberPower OR700LCDRM1U is a versatile 700 VA / 400 W line-interactive UPS designed to provide reliable power backup and protection for small to medium-sized IT environments. Perfect for safeguarding network devices, workstations, and home office equipment, this unit features a slim 1U rackmount design with six NEMA 5-15R outlets and a 6-foot NEMA 5-15P input cord. It incorporates Automatic Voltage Regulation (AVR) to correct minor power fluctuations without switching to battery power, thus extending battery life. The OR700LCDRM1U provides an estimated runtime of 5 minutes at full load and 14 minutes at half load, with a quick recharge time of 8 hours to 90% capacity.
The OR700LCDRM1U is equipped with an intuitive multifunction LCD display that provides real-time information on power conditions and UPS status, along with management options via USB and serial connectivity. With its GreenPower UPS Bypass design, this UPS achieves an energy-efficient operation by reducing energy consumption and heat generation. The device includes PowerPanel Business Edition software for comprehensive power management and remote monitoring capabilities. CyberPower backs this UPS with a 3-year limited warranty and a $200,000 Connected Equipment Guarantee, ensuring that your equipment is well-protected against unexpected power disturbances.
| Battery Features |
| Battery Quantity |
2 |
| Battery Size |
6 V / 8 Ah |
| Battery Type |
Sealed Lead-Acid Battery |
| Hot Swappable |
Yes |
| Recharge Time |
8 Hours |
| Compliance & Warranty |
| CEG Amount |
$300000 |
| RoHS Compliant |
RoHS Compliant |
| Safety |
UL1778 cUL 107.1 FCC DOC Class B |
| Warranty |
3 Year Limited Warranty |
| Electrical Protection Features |
| EMI/RFI Filtration |
Yes |
| Overload Protection |
Internal Circuitry Limiting Circuit Breaker Protected |
| Surge Protection |
Yes, 1150 J |
| Input Characteristics |
| Frequency Range |
57 Hz 63 Hz |
| Plug Type |
NEMA 5-15P |
| Voltage Range |
90 VAC 140 VAC |
| Interfaces & Monitoring |
| HID Compliant USB Port |
Yes |
| LCD Display |
Multifunction LCD |
| Management Software |
PowerPanel Business |
| Serial Port |
1 Dry Contact |
| Outlet Details |
| Outlet Type |
6 NEMA 5-15R |
| Total Number of Outlets |
6 |
| Output Characteristics |
| Battery Frequency |
60 Hz 1% |
| Battery Voltage |
120 VAC 10% |
| Battery Waveform |
Simulated Sine Wave |
| Capacity (VA) |
700 VA |
| Capacity (Watts) |
400 W |
| Physical Properties |
| Actual Dimensions (in) |
17.05 x 1.75 x 9.25 (in) |
| Actual Weight (lb) |
18.5 |
| Color |
Black |
| Cord Length |
10 ft (3.0 m) |
| Rack Unit Size |
1U |
| Shipping Dimensions (in) |
12.5 x 5.75 x 20.5 (in) |
| Shipping Weight (lb) |
21.8 |
| Runtime and Battery Maintenance |
| Battery Replaceability |
Yes |
| Full-Load Runtime |
3 min |
| Half-Load Runtime |
11 min |
| Unit Configuration |
| Energy Efficiency Mode |
GreenPower UPS Bypass Technology |
| Form Factor |
Rackmount |
| Model ID |
OR700LCDRM1U |
| Rack Unit Size |
1U |
| Topology Type |
Line Interactive |
