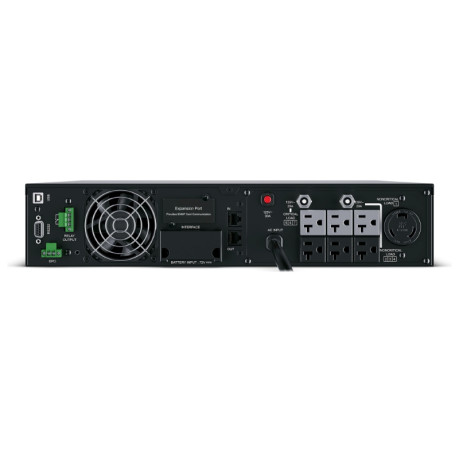

The CyberPower OL3000RTXL2U is a powerful 3000VA / 2700 W online double-conversion UPS designed to ensure seamless, clean power delivery for vital equipment. Perfect for data centers, high-end servers, and sensitive electronics, this unit boasts a 2U rack/tower convertible form factor with six NEMA 5-20R and one NEMA L5-30R outlets, along with a 10-foot NEMA L5-30P input cord. It offers superior surge protection rated at 2080 joules, including RJ11/RJ45 ports for communication line security. The hot-swappable sealed lead-acid battery system provides approximately 2.4 minutes of runtime at full load and 8 minutes at half load, with a recharge time of four hours to 90% capacity.
The OL3000RTXL2U features a user-friendly extendable and rotatable LCD panel for flexible status monitoring and diagnostic checks. Multiple management interfaces, including USB, serial, SNMP, relay, and EPO, offer comprehensive control options. With an ECO Mode efficiency exceeding 95% and ENERGY STAR certification, this UPS is both powerful and energy-efficient. It includes PowerPanel Business Edition software for sophisticated monitoring capabilities and is backed by a 3-year limited warranty (covering batteries) and a $400,000 Connected Equipment Guarantee, ensuring dependable operation and security for your critical applications.
| Battery Features |
| Battery Quantity |
6 |
| Battery Size |
12V / 9 Ah |
| Battery Type |
Sealed Lead-Acid Battery |
| Hot Swappable |
Yes |
| Recharge Time |
4 Hours (0% to 90% charged) |
| Compliance & Warranty |
| CEG Amount |
$400000 |
| RoHS Compliant |
RoHS Compliant |
| Safety |
UL1778 FCC Part 15 Class A CSA C22.2 No. 107.3 |
| Warranty |
3 Year Limited Warranty |
| Electrical Protection Features |
| EMI/RFI Filtration |
Yes |
| Overload Protection |
Yes, Line Mode: 105% ~ 125% Load 1 min Line Mode: 126% ~ 150% Load 10 sec Battery Mode: 105% ~ 130% Load 10 sec Battery Mode: 131% 150% Load 2 sec |
| Short Circuit Protection |
Yes, UPS Output Cut Off Immediately or Input Fuse / Circuit Breaker Protection |
| Surge Protection |
Yes, 1335 J |
| Input Characteristics |
| Cold Start Capable |
Yes |
| Frequency Range |
40 Hz 70 Hz |
| Plug Type |
NEMA L5-30P |
| Power Factor |
0.99 |
| Voltage Range |
60 VAC 69 VAC for 060% Load 70 VAC 79 VAC for 070% Load 80 VAC 89 VAC for 080% Load 90 VAC 95 VAC for 090% Load |
| Interfaces & Monitoring |
| Emergency Power Off (EPO) Port |
Yes |
| Expansion Slot |
Yes with optional RMCARD305 or RELAYIO500 |
| HID Compliant USB Port |
Yes |
| LCD Display |
Multifunction LCD |
| Management Software |
PowerPanel Business |
| Removable LCD Panel |
Yes Requires DB26 cable (not included) |
| Rotatable LCD Panel |
Yes |
| Serial Port |
1 Serial |
| Outlet Details |
| Built-in Bypass Mode |
Internal Bypass (Automatic and Manual) |
| Crest Factor |
3:1 |
| ECO Mode Voltage Regulation |
10%, 15% (Configurable) |
| Outlet Type |
6 NEMA 5-20R 1 NEMA L5-30R |
| Total Number of Outlets |
7 |
| Output Characteristics |
| Battery Frequency |
50/60 Hz 0.25Hz (auto-sensing or configurable) |
| Battery Voltage |
100/110/115/120/125 VAC 2% (configurable) |
| Battery Waveform |
Sine Wave |
| Capacity (VA) |
3000VA |
| Capacity (Watts) |
2700 W |
| Physical Properties |
| Actual Dimensions (in) |
17 x 3.5 x 23.62 (in) |
| Actual Weight (lb) |
68.2 |
| Color |
Black |
| Cord Length |
10 ft (3.0 m) |
| Rack Mounting Hardware Included |
Yes |
| Rack Unit Size |
2U |
| Shipping Dimensions (in) |
22.5 x 9.0 x 34.5 (in) |
| Shipping Weight (lb) |
87.08 |
| Runtime and Battery Maintenance |
| Battery Replaceability |
Yes |
| Full-Load Runtime |
4 min |
| Half-Load Runtime |
12.5 min |
| Smart Battery Management (SBM) Mode |
Yes |
| Unit Configuration |
| Energy Efficiency Mode |
ECO Mode Efficiency >95% |
| Form Factor |
Rack / Tower |
| Model ID |
OL3000RTXL2U |
| Rack Unit Size |
2U |
| Topology Type |
Online Double Conversion |
