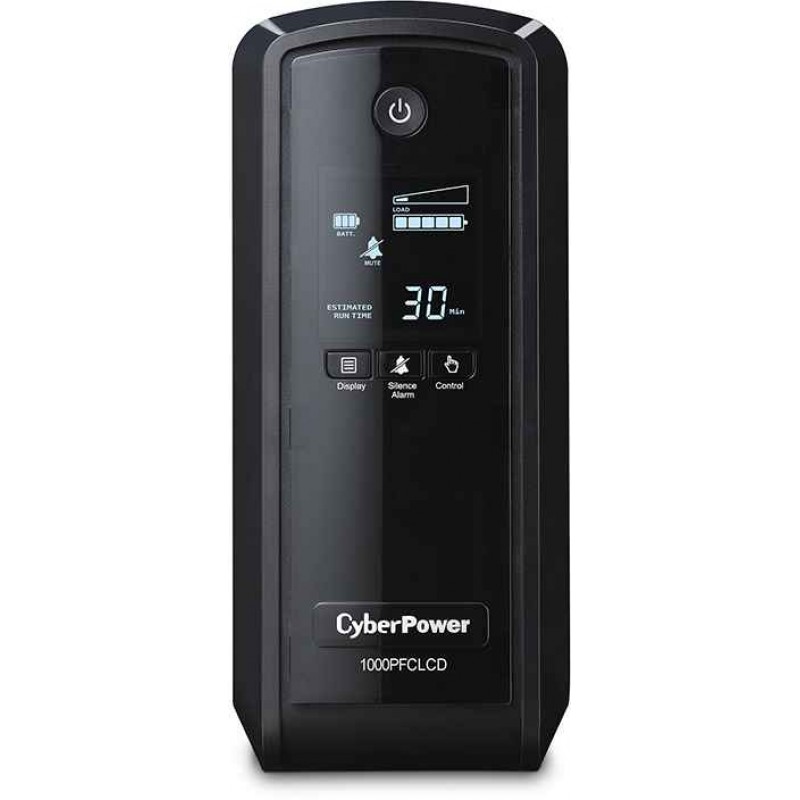

The CyberPower CP1000PFCLCD is a reliable 1000 VA / 600 W PFC Sinewave UPS designed to provide clean, consistent power for home office and small business electronics. This tower-style unit is equipped with ten outletsfive battery backup & surge protected and five surge protected onlyideal for safeguarding computers, workstations, networking devices, and home entertainment systems. Featuring a multifunction color LCD screen, the CP1000PFCLCD displays real-time information on battery status, load capacity, and runtime, making power management straightforward and intuitive. It comes with a six-foot power cord and offers a surge protection rating of 1030 joules to defend against power spikes.
Advanced features include AVR (Automatic Voltage Regulation) to correct minor power fluctuations without switching to battery power, prolonging the life of the battery. The CP1000PFCLCD supports connectivity via USB and serial ports for versatile management options and is compatible with CyberPower's PowerPanel Personal Edition software, providing detailed monitoring and control of UPS functions. Backed by a 3-year limited warranty and a $350,000 Connected Equipment Guarantee, this UPS ensures reliability and peace of mind for your critical electronics and data.
| Battery Features |
| Battery Quantity |
1 |
| Battery Size |
12V / 9 Ah |
| Battery Type |
Sealed Lead-Acid Battery |
| Hot Swappable |
No |
| Recharge Time |
8 Hours |
| Compliance & Warranty |
| CEG Amount |
$350000 |
| RoHS Compliant |
RoHS Compliant |
| Safety |
UL1778 cUL 107.3 FCC DOC Class B |
| Warranty |
3 Year Limited Warranty |
| Electrical Protection Features |
| EMI/RFI Filtration |
Yes |
| Overload Protection |
Internal Circuitry Limiting Circuit Breaker Protected |
| Surge Protection |
Yes, 1150 J |
| Input Characteristics |
| Frequency Range |
57 Hz 63 Hz |
| Plug Type |
NEMA 5-15P |
| Voltage Range |
88 VAC 144 VAC |
| Interfaces & Monitoring |
| Emergency Power Off (EPO) Port |
No |
| HID Compliant USB Port |
Yes |
| LCD Display |
Multifunction LCD |
| Management Software |
PowerPanel Personal |
| Serial Port |
1 Dry Contact |
| Outlet Details |
| Outlet Type |
10 NEMA 5-15R |
| Total Number of Outlets |
10 |
| Output Characteristics |
| Battery Frequency |
60 Hz 1% |
| Battery Voltage |
120 VAC 5% |
| Battery Waveform |
Sine Wave |
| Capacity (VA) |
1000 VA |
| Capacity (Watts) |
600 W |
| Physical Properties |
| Actual Dimensions (in) |
3.94 x 9.7 x 10.24 (in) |
| Actual Weight (lb) |
15.39 |
| Color |
Black |
| Cord Length |
5 ft (1.5 m) |
| Shipping Dimensions (in) |
6.69 x 12.99 x 13.39 (in) |
| Shipping Weight (lb) |
16.53 |
| Runtime and Battery Maintenance |
| Battery Replaceability |
Yes |
| Full-Load Runtime |
2 min |
| Half-Load Runtime |
6 min |
| Unit Configuration |
| Energy Efficiency Mode |
GreenPower UPS Bypass Technology |
| Form Factor |
Mini-Tower |
| Model ID |
CP1000PFCLCD |
| Topology Type |
Line Interactive |
