CyberPower CP1000AVRLCD LCD & AVR UPS System Intelligent LCD Series

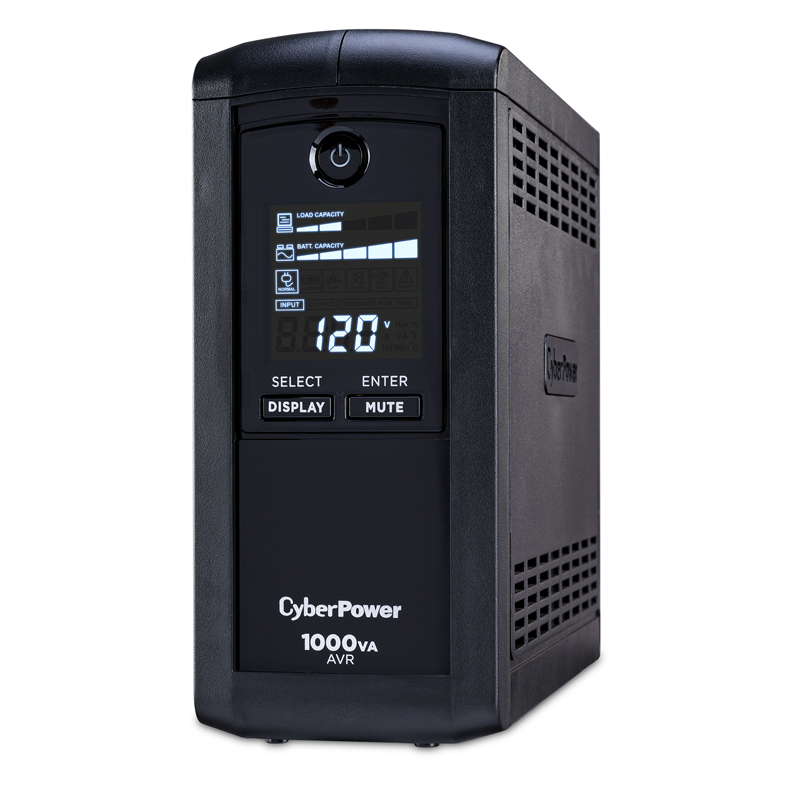

CyberPower CP1000AVRLCD LCD & AVR UPS System

Use coupon power for a 10% discount

Available Options

A mini-tower UPS with line interactive topology, the CyberPower Intelligent LCD CP1000AVRLCD provides battery backup and surge protection for desktop computers, workstations, networking devices, and home entertainment systems.

The CP1000AVRLCD uses Automatic Voltage Regulation (AVR) to correct minor power fluctuations without switching to battery power,which extends battery life. AVR is essential in areas where power fluctuations occur frequently.

The CP1000AVRLCD comes with a three-year warranty (including coverage of batteries) and a $350,000 Connected Equipment Guarantee.


  • Desktop Computers
  • Home Networking/VoIP
  • Personal Electronics
  • Home Theater Equipment


  • 1000VA/600W
  • 9 NEMA 5-15R Outlets
  • USB/Serial Communication Ports
  • Automatic Voltage Regulation
  • PowerPanel Management Software
  • ENERGY STAR Qualified
  • Three-Year Warranty
Battery Capacity 9Ah
Battery Quantity 1
Battery Voltage(V) 12V
Hot Swappable Yes
Replacement Battery RB1290A
Runtime At Full Load (min) 2
Runtime At Half Load (min) 9
Typical Recharge Time 8 hours
User Replaceable Yes
Safety UL1778, cUL 107 5th, FCC Cl B
Operating Elevation 10,000 ft / 3,000 m
Operating Relative Humidity 0%
Operating Temperature 32
Storage Elevation 50,000 ft / 15,000 m
Storage Relative Humidity 0%
Storage Temperature 5
Energy Saving GreenPower UPS Bypass
UPS Topology Line Interactive
Cord Length (ft) 6 ft
Frequency 60Hz
Input Voltage Range 90Vac
Plug Style Right Angle
Plug Type NEMA 5-15P
Voltage Nominal 120V
Management & Communications
Audible Alarms On Battery.Low Battery.Overload.Fault
HID Compliant USB Port Yes
Intelligent Multifunction LCD Interface Yes, Load Capacity %.Load Capacity Absolute.Battery Charge %.Input/Output Voltage.Input/Output Frequency.Estimated Runtime.AVR.On Battery.Overload.Schedule.Silence.Fault
LCD Backlight Black
Led Indicators Power, Wiring Fault
Management Cable USB Cable
Serial Port Yes (Dry Contact)
SNMP / HTTP Remote Monitoring No
Software (Free Download) PowerPanel Personal
Automatic Voltage Regulation Yes
On Battery Frequency 60 Hz
On Battery Voltage 120 VAC
On Battery Waveform Simulated Sine Wave
Outlet Type NEMA 5-15R
Overload Protection Internal circuitry limiting / breaker
Transfer Time 4 ms
VA 1000
Watts 600
Dimensions (WxHxD) (inch) 3.9 x 9.0 x 10.2
Form Factor Mini-Tower
Weight (lb) 15
Surge Protection & Filtering
Coax Protection 1-In, 1-Out
EMI/RFI Filtering Yes
RJ11/RJ45 1-In, 1-Out (Combo)
Surge Suppression 1,080 J
CEG Amount 350000
Connected Equipment Guarantee Lifetime
Product Warranty 3 Years Limited
