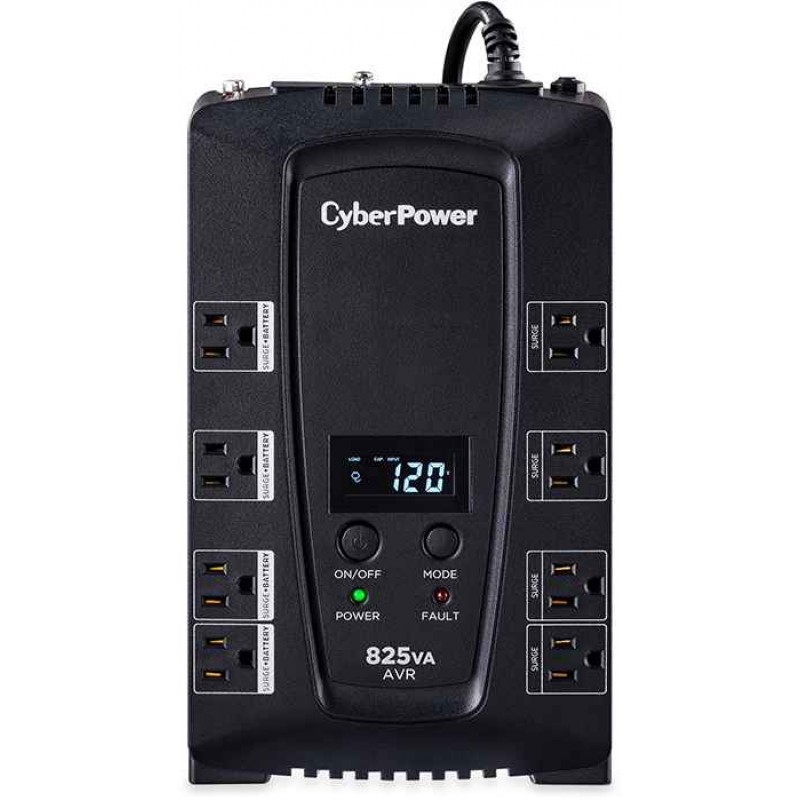

The CyberPower CP825AVRLCD is a versatile 825 VA / 450 W line-interactive UPS designed to safeguard home offices and small networking devices from power disturbances. This compact unit features a convenient tower form factor with eight NEMA 5-15R outlets, four of which provide battery backup and surge protection, while the remaining four offer surge protection only. The CP825AVRLCD includes an integrated LCD display that provides real-time information on battery status, load capacity, and estimated runtime, ensuring users can easily monitor power conditions. With Automatic Voltage Regulation (AVR) technology, this UPS corrects minor power fluctuations without switching to battery power, thereby extending battery life and ensuring consistent power delivery.
Advanced features of the CP825AVRLCD include data line protection for safeguarding network connections and a user-friendly interface for effortless management. The unit supports both USB and serial communication ports, allowing seamless integration with various management software. It comes equipped with PowerPanel Personal Edition software, which provides comprehensive power management and monitoring capabilities. The CP825AVRLCD is backed by a 3-year limited warranty and a $225,000 Connected Equipment Guarantee, providing reassuring protection and reliability for your essential electronics and sensitive equipment.
| Battery Features |
| Battery Quantity |
1 |
| Battery Size |
12V / 9 Ah |
| Battery Type |
Sealed Lead-Acid Battery |
| Hot Swappable |
Yes |
| Recharge Time |
8 Hours |
| Compliance & Warranty |
| CEG Amount |
$200000 |
| RoHS Compliant |
RoHS Compliant |
| Safety |
UL1778 cUL 107.3 FCC DOC Class B |
| Warranty |
3 Year Limited Warranty |
| Electrical Protection Features |
| EMI/RFI Filtration |
Yes |
| Overload Protection |
Internal Circuitry Limiting Circuit Breaker Protected |
| Surge Protection |
Yes, 1030 J |
| Input Characteristics |
| Frequency Range |
57 Hz 63 Hz |
| Plug Type |
NEMA 5-15P |
| Interfaces & Monitoring |
| Emergency Power Off (EPO) Port |
No |
| HID Compliant USB Port |
Yes |
| LCD Display |
Multifunction LCD |
| Management Software |
PowerPanel Personal |
| Serial Port |
1 Serial |
| Outlet Details |
| Outlet Type |
8 NEMA 5-15R |
| Total Number of Outlets |
8 |
| Output Characteristics |
| Battery Frequency |
60 Hz 1% |
| Battery Voltage |
120 VAC 5% |
| Battery Waveform |
Simulated Sine Wave |
| Capacity (VA) |
825 VA |
| Capacity (Watts) |
450 W |
| Physical Properties |
| Actual Dimensions (in) |
11 x 6.8 x 3.5 (in) |
| Actual Weight (lb) |
12.74 |
| Color |
Black |
| Cord Length |
6 ft (1.8 m) |
| Shipping Dimensions (in) |
5.25 x 10.0 x 14.5 (in) |
| Shipping Weight (lb) |
14.0 |
| Runtime and Battery Maintenance |
| Battery Replaceability |
Yes |
| Full-Load Runtime |
1.2 min |
| Half-Load Runtime |
13.5 min |
| Unit Configuration |
| Energy Efficiency Mode |
GreenPower UPS Bypass Technology |
| Form Factor |
Compact |
| Model ID |
CP825AVRLCD |
| Topology Type |
Line Interactive |
