Datasheet

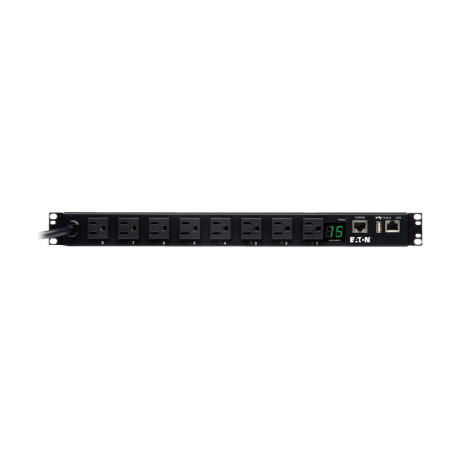

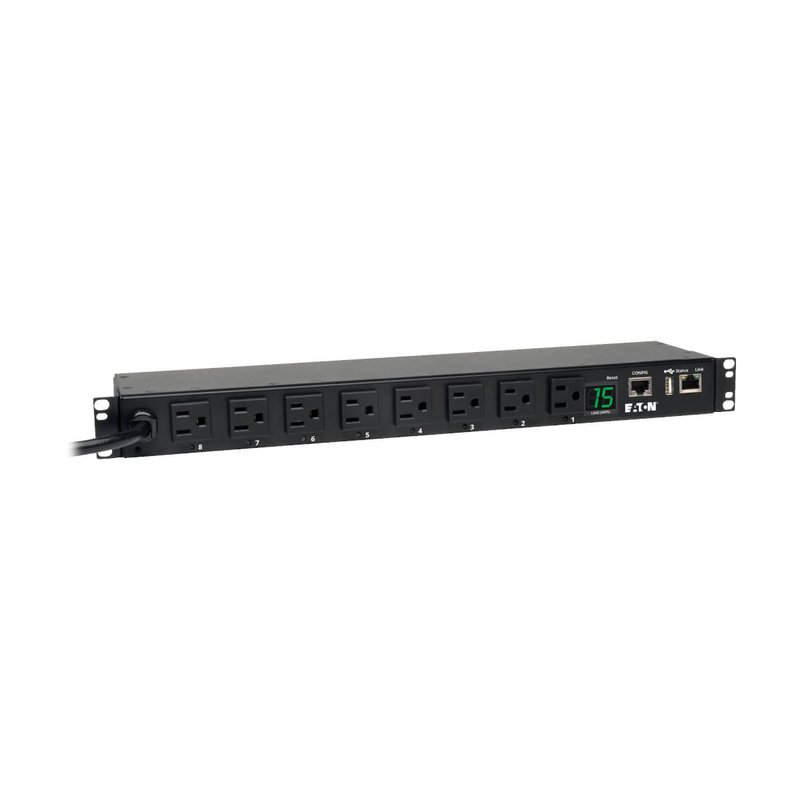

The Tripp Lite PDUMH15NET2LX is a 1.4kW single-phase switched PDU ideal for rack-mount applications. It offers 8x 5-15R outlets distributing 120V power and features an LX Platform interface enabling remote monitoring and control of connected equipment. This unit supports 100-127V input via a 12ft 5-15P power cord.
Designed for 1U rack mounting the PDUMH15NET2LX simplifies power management in data centers and network closets. Its TAA compliance ensures adherence to US federal procurement regulations making it suitable for government and related projects.
| COMMUNICATIONS |
| Communications Cable |
RJ45-to-DB9 configuration/console Access cable |
| Network Compatibility |
10 Mbps; 100 Mbps (Fast Ethernet) |
| PowerAlert Software |
LX Platform Interface: PowerAlert Device Manager |
| SNMP Compatibility |
Pre-installed LX platform interface provides remote monitoring via Java-free HTML5 web interface telnet SSH and SNMP management systems |
| DETAIILS |
| Manufacturer |
Tripp Lite |
| Manufacturer Part Number |
PDUMH15NET2LX |
| FEATURES & SPECIFICATIONS |
| Grounding |
Rear panel grounding lug |
| High Availability PDU Features |
Auto Probe Monitoring and Reboot (included); Auto Load Shedding |
| OVERVIEW |
| PDU Type |
Switched |
| UPC Code |
037332203274 |
| STANDARDS & COMPLIANCE |
| Product Certifications |
CAN/CSA-C22.2 No. 60950-1 (Canada); NOM (Mexico); UL 60950-1 |
| Product Compliance |
RoHS; FCC Part 15 Class A (USA); Trade Agreements Act (TAA) |
| SURGE / NOISE SUPPRESSION |
| Automatic Shut-Off |
No |
| USER INTERFACE ALERTS & CONTROLS |
| Front Panel LCD Display |
Digital display reports total PDU output current in amps |
| LED Indicators |
8 LEDs display power on-off status for each output receptacle. Ethernet Link and Status LED's for network activity. System status LED for monitoring system operation. |
| Switches |
Recessed reset button for rebooting SNMP management card without affecting AC output to connected equipment |
| Details |
| Category |
Power Distribution Units (PDUs) |
| Environmental |
| Operating Temperature Range |
32 to 104F (0 to 40C) |
| Relative Humidity |
5% to 95% non-condensing |
| Storage Temperature Range |
-22 to 122F (-30 to 50C) |
| Operating Elevation |
0-10000 ft. (0-3000 m) |
| Input |
| Input Cord Length (ft.) |
12 |
| Input Cord Length (m) |
3.66 |
| Input Phase |
Single-Phase |
| Maximum Input Amps |
12 |
| Maximum Input Amps Details |
Agency de-rated to 12A continuous |
| PDU Input Voltage |
120 |
| PDU Plug Type |
NEMA 5-15P |
| Recommended Electrical Service |
Single-phase 15A 120V service |
| Output |
| Customized Load Management Receptacles |
8 individually switched output receptacles |
| Frequency Compatibility |
50 / 60 Hz |
| Output Capacity Details |
1.44kW (120V) / 12A total capacity; 12A max per outlet |
| Output Nominal Voltage |
120V |
| Output Receptacles |
(8) 5-15R |
| Physical |
| Minimum Required Rack Depth (cm) |
18.54 |
| Minimum Required Rack Depth (inches) |
7.3 |
| PDU Form Factor |
Horizontal (1U) |
| Shipping Dimensions (hwd / cm) |
0.00 x 0.00 x 0.00 |
| Shipping Dimensions (hwd / in.) |
0.00 x 0.00 x 0.00 |
| Unit Dimensions (hwd / cm) |
4.44 x 44.4 x 10.8 |
| Unit Dimensions (hwd / in.) |
0.000 x 0.000 x 0.000 |
| Unit Weight (kg) |
2.36 |
| Unit Weight (lbs.) |
5.2 |
| Form Factors Supported |
1U rackmount |
| Material Of Construction |
Metal |
| Rack Height |
1U |
| Shipping Weight (kg) |
0.00 |
| Shipping Weight (lbs.) |
0.00 |
| Warranty |
| Warranty/Returns |
30 Days |
