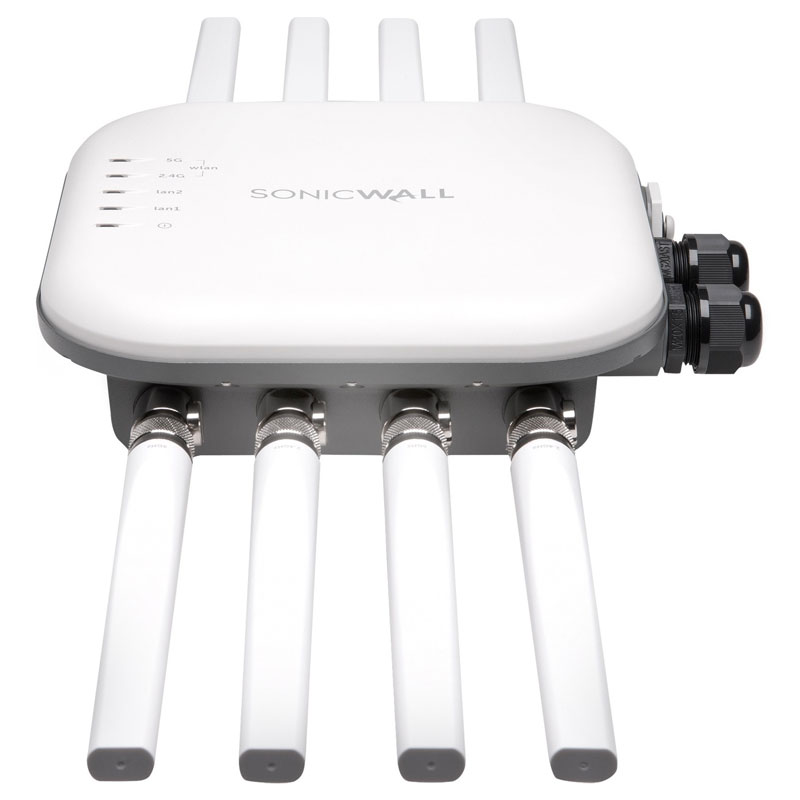

SonicWave 432o Wireless AP W/ Advanced Secure Cloud Wifi Mgmt + Support (1 Year) Appliances

SonicWave 432o Wireless AP W/ Advanced Secure Cloud Wifi Mgmt + Support (1 Year)

Add to Cart for Price
Availability:In Stock

Available Options

SonicWave APs take advantage of the capabilities in 802.11ac Wave 2 plus features such as band steering and a built-in 2.5 GbE port to deliver high-speed wireless performance. Other features, including 4x4 MU-MIMO and beamforming, improve performance in higher density environments when using bandwidth-intensive applications such as HD multimedia, and cloud and mobile apps.

Each SonicWave access point includes three radios. One operates in the less crowded 5 GHz frequency band, reducing interference from other devices while strengthening signal reliability. Another operates in the 2.4 GHz band to support legacy 802.11b/g/n clients. The third radio is dedicated to Security and performs rogue AP detection, passive scanning and packet capturing. With four transmitting and four receiving antennas plus support for 4x4 MU-MIMO, SonicWave APs are engineered to optimize signal quality, range and reliability for wireless devices including Wave 2-enabled clients.

SonicWall firewalls scan all wireless traffic coming into and going out of the network using deep packet inspection technology and then remove harmful threats such as malware and intrusions, even over SSL/ TLS encrypted connections. Other Security and control capabilities such as content filtering, application control and intelligence and Capture Advanced Threat Protection provide added layers of protection. The Wireless Network Security solution also integrates additional Security-related features including wireless intrusion detection and prevention, virtual access point segmentation, wireless guest services, RF monitoring and wireless packet capture.

  • Superior USER experience
    • 802.11ac Wave 2
    • 4x4 MU-MIMO
    • 2.5 GbE port
    • Band steering
    • Beamforming
    • AirTime Fairness
    • Access point dynamic VLANs
  • Comprehensive threat prevention
    • Deep packet inspection technology
    • SSL/TLS decryption and inspection
    • Dedicated third scanning radio
    • Virtual access point segmentation
    • Wireless intrusion detection and prevention
  • Simplified deployment and centralized management
    • Auto-detection and provisioning
    • Wireless signal analysis tools
    • Single-pane-of-glass management
  • Low total cost of ownership
    • Integrated wireless access Controller
    • Green AP
    • Indoor and outdoor models
Download PDF datasheet for detailed product information
Manufacturer SonicWall
Wireless Yes
Years 1
Humidity 10 - 95%, non-condensing
Temp. 32 to 104.DegF, 0 to 40.DegC / -40 to 140.DegF, -40 to 60.DegC
Hardware Specifications
Accessories Included Wall/ceiling mount kit
Antennas 8 N-type dipole
Chassis UL 1024 plenum rated
Dimensions 9.5 (W) x 9.3 (D) x 2.4 (H) in 24.1 (W) x 23.6 (D) x 6.1 (H) cm
Location Outdoor
Maximum Power Consumption (W) 21.2 W
PoE Injector 802.3at
Shipping Weight 4.7 kg / 10.4 lbs
Status Indicators Six (6) LED (WLAN/Link) (LAN/Link) Power, Test
Virtual Access Points/SSID Group Up to 8 per access point
WEEE Weight 4.1 kg / 9.1 lbs
Weight 2.2 kg / 4.9 lbs
Wired Network Ports (1) 10/100/1,000 auto-sensing RJ-45 for Ethernet and Power over Ethernet (PoE); (1) 100/1,000/2.5 GbE auto-sensing RJ- 45 for Ethernet; (1) RJ-45 console; (1) USB 2.0 (except 432o)
Radio Specifications
Frequency Bands/Operating Channels 802.11n-2.412-2.472 GHz, 5.180-5.825 GHz 802.11ac-2.412-2.472 GHz, 5.180-5.825 GHz 802.11a-US and Canada 12, Europe 11, Japan 4, Singapore 4, Taiwan 4 802.11b/g
Radios Dual- 4x4 11n + 4x4 11ac MU-MIMO; Dedicated third scanning radio; Bluetooth Low Energy radio 802.11a
Data Encryption WPA2, IPSec, 802.11i, WPA, 64/128/152-bit WEP, TKIP, AES, SSL VPN
Standards and compliance
IEEE Standard 802.11a/b/g/n/ac Wave 39
