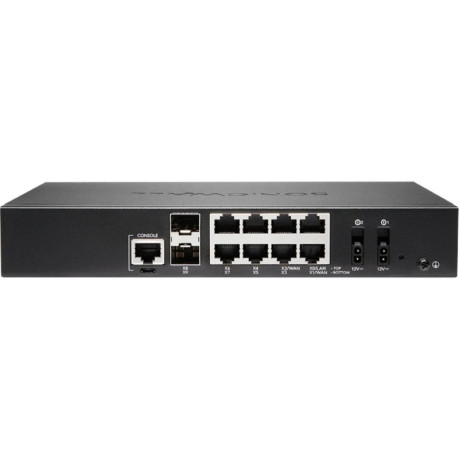

Sonicwall TZ570 Total Secure - Essential Edition (1 Year)
Add to Cart for Price
Condition:New
Availability:In Stock
- Networking
- Network Security
- SonicWall
- TZ Series
- TZ570
- Appliances
- SonicWall TZ570 Total Secure - Essential Edition (1 Year)
The SonicWall TZ570 Total Secure ? Essential Edition (1 Year) is a powerful next-generation firewall tailored for SMAll to mid-sized businesses that demand enterprise-level security in a compact desktop form factor. This robust device offers a firewall throughput of 4 Gbps, threat prevention at 2 Gbps, and TLS/SSL inspection throughput of 750 Mbps, ensuring a strong defense against modern cyber threats. With its 8 Gigabit Ethernet ports, including 2 SFP+ ports for fiber uplinks, the TZ570 provides flexible and scalable connectivity options. It supports up to 256 VLANs, 200 VPN tunnels, and 32 wireless access points, making it an ideal solution for expanding network infrastructures. The device is capable of handling up to 400,000 DPI connections and offers advanced features such as secure SD-WAN, deep packet inspection, anti-malware, content filtering, and application control, all managed through the intuitive SonicOS 7.0 interface.
Included with the SonicWall TZ570 is a 1-Year Total Secure Essential Edition subscription, which encompasses crucial services like gateway anti-virus, intrusion prevention, Capture Advanced Threat Protection (ATP), and 24x7 support, ensuring continuous security and operational reliability. The TZ570 is certified with FIPS 140-2 Level 2, ICSA, and RoHS, making it an ideal choice for businesses that require compliance and robust security performance in a SMAll footprint. This firewall not only delivers high-performance security but also offers peace of mind with its comprehensive protection and support services, making it a valuable asset for any business looking to safeguard its network infrastructure.
| Additional Features | |
| Features | SD-WAN support, VLAN support, firewall protection, VPN support, NAT support, Quality of Service (QoS), DHCP server, DHCP relay, Deep Packet Inspection (DPI), content filtering, antivirus analysis, anti-spam protection, Stateful Packet Inspection (SPI), DoS attack prevention, IPv4 support, IPv6 support, Jumbo Frames support, VLAN trunking, port mirroring, bandwidth control, Common Access Card (CAC) reader support, NetFlow, PAT support, 3G/4G USB Dongle Support, Single Sign-On (SSO) support, Dead Peer Detection (DPD), IPSec NAT-Traversal (NAT-T), DDos attack prevention |
| Capacity | |
| DPI connections | 400000 |
| DPI SSL connections | 50000 |
| IPSec VPN clients | 10 (maximum 500) |
| Manageable access points | 32 |
| Single Sign-On (SSO) users | 2500 |
| SPI connections | 1250000 |
| SSL VPN licenses | 2 (maximum 200) |
| Virtual interfaces (VLANs) | 256 |
| VPN tunnels (site-to-site) | 200 |
| Dimensions & Weight (Shipping) | |
| Shipping Weight | 4.25 lbs |
| Environmental Parameters | |
| Humidity Range Operating | 5 - 95% (non-condensing) |
| Max Operating Temperature | 104 ??F |
| Min Operating Temperature | 32 ??F |
| Expansion / Connectivity | |
| Interfaces | 6 x 1000Base-T - RJ-45, 2 x 1000Base-T - RJ-45 (WAN), 2 x network - SFP+, 2 x USB 3.0 - Type A, 1 x console - RJ-45, 1 x console - micro-USB |
| IP Telephony | |
| VoIP Protocols | SIP, H.323 v3, H.323 v4, H.323 v1, H.323 v2, H.323 v5 |
| Miscellaneous | |
| Compliant Standards | FIPS 140-2 Level 2, ICSA Firewall certified, ICSA Antivirus, Common Criteria, FCC Class B certified, ICES Class B, EMC, LVD, RoHS, C-Tick, VCCI Class B, UL, cUL, TUV GS, CB, WEEE, REACH, BSMI, KCC, MSIP, ANATEL |
| MTBF | 26.1 years |
| Networking and Systems | |
| Authentication Method | RADIUS, LDAP, XAUTH authentication |
| Security & Encryption | |
| Encryption Algorithm | DES, Triple DES, MD5, SHA-1, 128-bit AES, 192-bit AES, 256-bit AES |
| Software / System Requirements | |
| OS Provided | SonicOS 7.0 |
| Software Included | SonicWall Essential Protection Service Suite (1 year) |
| Details | |
| Series | TZ Series |
| Warranty/Returns | 30 Days |
| Manufacturer | SonicWall |
| General | |
| Bundled Services | 1 year Total Secure |
| Depth | 5.9 in |
| Device Type | Security appliance |
| Height | 1.4 in |
| Weight | 34.21 oz |
| Width | 8.9 in |
| Indicators | |
| Status Indicators | Test mode |
| Networking | |
| Connectivity Technology | Wired |
| Data Link Protocol | Gigabit Ethernet, 5 Gigabit Ethernet |
| Form Factor | Desktop |
| Network / Transport Protocol | TCP/IP, PPTP, UDP/IP, L2TP, ICMP/IP, IPSec, PPPoE, DHCP |
| Remote Management Protocol | SNMP 2, SNMP 3, HTTP, HTTPS, CLI, SSH |
| Routing Protocol | OSPF, RIP-1, RIP-2, BGP, static IP routing, policy-based routing (PBR) |
| Performance | |
| Anti-malware throughput | 2 Gbps |
| Application throughput | 2.5 Gbps |
| Connection rate | 16000 connections per second |
| Firewall throughput | 4 Gbps |
| IPS throughput | 2.5 Gbps |
| Threat prevention throughput | 2 Gbps |
| TLS/SSL inspection and decryption throughput | 750 Mbps |
| VPN throughput (IPSec) | 1.8 Gbps |
| Power | |
| Power Consumption Operational | 13.1 Watt |
| Power Device | External power adapter |
| Power Provided | 60 Watt |
| Power Redundancy | Optional |
| Voltage Required | AC 120/230 V (50/60 Hz) |
