SonicWall TZ470 Wireless-AC Base Appliance Appliances

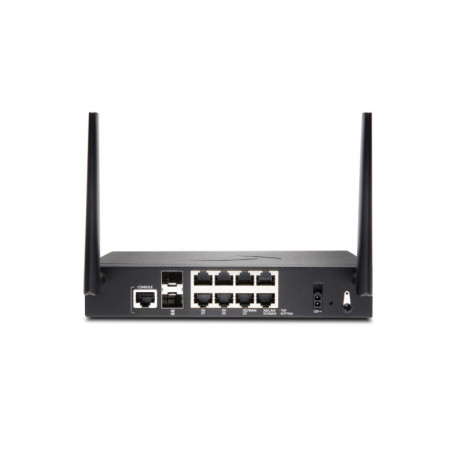

SonicWall TZ470 Wireless-AC Base Appliance

$959.20
Add to Cart for Price
Manufacturer:SonicWall
Model:02-SSC-2831
Condition:New
Availability:In Stock

Available Options

Blazing-fast 3.5 Gbps firewall with advanced threat protection. Integrated Wave 2 Wi-Fi, 8x 1GbE & 2x 2.5GbE ports. Secure, scalable, and perfect for SMBs.
TZ Gen7 Datasheet

The SonicWall TZ470 Wireless-AC Base Appliance is an advanced next-generation firewall designed to meet the demanding security needs of SMAll to medium-sized businesses. It offers exceptional protection with up to 3.5 Gbps firewall throughput and 1.5 Gbps threat prevention, safeguarding your network against modern cyber threats. The appliance supports high-speed dual-band 802.11ac Wave 2 Wi-Fi connectivity, ensuring seamless wireless integration and performance. Equipped with up to 1 million SPI connections and the capability to handle 150 site-to-site VPN tunnels, it provides versatile connectivity options with 8x 1GbE RJ-45 ports and 2x 2.5GbE SFP+ ports, making it a powerful and scalable solution for growing networks.

Designed for businesses that require high performance and comprehensive security, the SonicWall TZ470 combines advanced threat prevention with integrated wireless capabilities. Its compact desktop form factor ensures easy deployment within any office environment, while its efficient power usage maintains operational cost-effectiveness. The appliance supports seamless network scalability and offers secure remote access, making it an ideal choice for organizations looking to enhance their network infrastructure without compromising on security or flexibility.

Download PDF datasheet for included services
Capacity
DPI connections 250000
DPI SSL connections 35000
IPSec VPN clients 5 (maximum 200)
Manageable access points 32
Single Sign-On (SSO) users 2500
SPI connections 1000000
SSL VPN licenses 2 (maximum 150)
Virtual interfaces (VLANs) 128
VPN tunnels (site-to-site) 150
Environmental Parameters
Humidity Range Operating 5 - 95% (non-condensing)
Max Operating Temperature 104 ??F
Min Operating Temperature 32 ??F
Expansion / Connectivity
Interfaces 6 x 1000Base-T - RJ-45, 2 x 1000Base-T - RJ-45 (WAN), 2 x 2.5Gb Ethernet - SFP+, 2 x USB 3.0 - Type A, 1 x console - RJ-45
IP Telephony
VoIP Protocols SIP, H.323 v3, H.323 v4, H.323 v1, H.323 v2, H.323 v5
Miscellaneous
Compliant Standards FCC Class B certified, UL, TUV GS, ICSA Firewall certified, cUL, ICSA Antivirus, CB, FIPS 140-2 Level 2, EMC, IC, MIC, R&TTE, RoHS, ICES Class B, WEEE, TELEC, REACH, LVD, VCCI Class B, RCM, CoC, Common Criteria
MTBF 24.1 years
Networking and Systems
Authentication Method RADIUS, LDAP, XAUTH authentication
Compliant Standards IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11e, IEEE 802.11n, IEEE 802.11k, IEEE 802.11ac, IEEE 802.11w, IEEE 802.11r, IEEE 802.11s
Security & Encryption
Encryption Algorithm DES, Triple DES, MD5, SHA-1, PEAP, TTLS, TKIP, WPA, WPA2, 128-bit AES, 192-bit AES, 256-bit AES, WEP
Software / System Requirements
OS Provided SonicOS 7.0
Antenna
Antenna External detachable
Details
Series TZ Series
Warranty/Returns 30 Days
Manufacturer SonicWall
General
Depth 5.3 in
Device Type Security appliance
Height 1.4 in
Width 7.5 in
Networking
Connectivity Technology Wireless, wired
Data Link Protocol Gigabit Ethernet, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, 2.5 Gigabit Ethernet, IEEE 802.11ac Wave 2
Line Coding Format OFDM, DSSS
Network / Transport Protocol TCP/IP, PPTP, UDP/IP, L2TP, ICMP/IP, IPSec, PPPoE, DHCP
Remote Management Protocol SNMP 2, SNMP 3, HTTP, HTTPS, SSH, CLI
Routing Protocol OSPF, RIP-1, RIP-2, BGP, static IP routing, policy-based routing (PBR)
Performance
Anti-malware throughput 1.5 Gbps
Application throughput 2 Gbps
Connection rate 12000 connections per second
Firewall throughput 3.5 Gbps
IPS throughput 2 Gbps
Threat prevention throughput 1.5 Gbps
TLS/SSL inspection and decryption throughput 600 Mbps
VPN throughput (IPSec) 1.5 Gbps
Power
Power Consumption Operational 21.98 Watt
Power Device External power adapter
Power Provided 36 Watt
Voltage Required AC 120/230 V (50/60 Hz)
