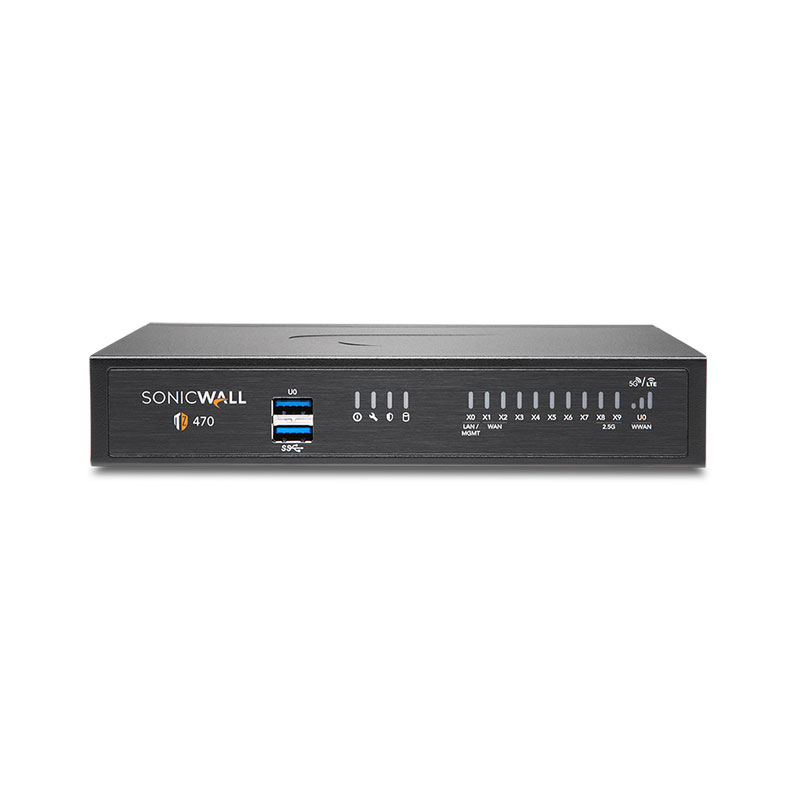

SonicWall TZ470 Base Appliance
Add to Cart for Price
Condition:New
Availability:In Stock
The SonicWall TZ470 Base Appliance is a high-performance, next-generation firewall tailored for SMAll to medium-sized businesses demanding advanced security and scalability. It offers a robust firewall throughput of up to 3.5 Gbps, ensuring seamless protection against cyber threats with a threat prevention throughput of 1.5 Gbps. This compact device supports up to 150 site-to-site VPN tunnels, making it a reliable choice for businesses with expanding network needs. Equipped with 600 Mbps DPI SSL throughput, it efficiently manages encrypted traffic, and its capability to handle up to 1 million stateful packet inspection (SPI) connections ensures uninterrupted network performance. The appliance features versatile connectivity options, including 6 Gigabit Ethernet ports, 2 multi-gigabit 2.5GbE SFP+ ports, and USB 3.0 ports, enabling flexible network configurations and expansions.
Designed with scalability and reliability in mind, the SonicWall TZ470 is ideal for organizations seeking a powerful network security solution that can adapt to evolving threats. Its compact desktop form factor allows for easy integration into various network environments, while SonicWall's comprehensive security services provide layered protection and real-time threat intelligence. The appliance supports advanced security features such as deep packet inspection, intrusion prevention, and content filtering, ensuring that your network remains secure against both known and emerging threats. With its user-friendly management interface, the TZ470 simplifies the deployment and management of security policies, making it an indispensable asset for businesses aiming to safeguard their digital assets effectively.
| Capacity | |
| DPI connections | 200000 |
| DPI SSL connections | 30000 |
| IPSec VPN clients | 5 (maximum 200) |
| Manageable access points | 16 |
| Single Sign-On (SSO) users | 1000 |
| SPI connections | 900000 |
| SSL VPN licenses | 2 (maximum 100) |
| Virtual interfaces (VLANs) | 128 |
| VPN tunnels (site-to-site) | 100 |
| Environmental Parameters | |
| Humidity Range Operating | 5 - 95% (non-condensing) |
| Max Operating Temperature | 104 ??F |
| Min Operating Temperature | 32 ??F |
| Expansion / Connectivity | |
| Interfaces | 6 x 1000Base-T - RJ-45, 2 x 1000Base-T - RJ-45 (WAN), 2 x USB 3.0 - Type A, 1 x console - RJ-45 |
| IP Telephony | |
| VoIP Protocols | SIP, H.323 v3, H.323 v4, H.323 v1, H.323 v2, H.323 v5 |
| Miscellaneous | |
| Compliant Standards | FCC Class B certified, UL, TUV GS, ICSA Firewall certified, cUL, ICSA Antivirus, CB, FIPS 140-2 Level 2, EMC, IC, MIC, R&TTE, RoHS, ICES Class B, WEEE, TELEC, REACH, LVD, VCCI Class B, RCM, CoC, Common Criteria |
| MTBF | 27.1 years |
| Networking and Systems | |
| Authentication Method | RADIUS, LDAP, XAUTH authentication |
| Compliant Standards | IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11e, IEEE 802.11n, IEEE 802.11k, IEEE 802.11ac, IEEE 802.11w, IEEE 802.11r, IEEE 802.11s |
| Security & Encryption | |
| Encryption Algorithm | DES, Triple DES, MD5, SHA-1, PEAP, TTLS, TKIP, WPA, WPA2, 128-bit AES, 192-bit AES, 256-bit AES, WEP |
| Software / System Requirements | |
| OS Provided | SonicOS 7.0 |
| Antenna | |
| Antenna | External detachable |
| Details | |
| Series | TZ Series |
| Warranty/Returns | 30 Days |
| Manufacturer | SonicWall |
| General | |
| Depth | 5.3 in |
| Device Type | Security appliance |
| Height | 1.4 in |
| Width | 7.5 in |
| Networking | |
| Connectivity Technology | Wireless, wired |
| Data Link Protocol | Gigabit Ethernet, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac Wave 2 |
| Line Coding Format | OFDM, DSSS |
| Network / Transport Protocol | TCP/IP, PPTP, UDP/IP, L2TP, ICMP/IP, IPSec, PPPoE, DHCP |
| Remote Management Protocol | SNMP 2, SNMP 3, HTTP, HTTPS, SSH, CLI |
| Routing Protocol | OSPF, RIP-1, RIP-2, BGP, static IP routing, policy-based routing (PBR) |
| Performance | |
| Anti-malware throughput | 1 Gbps |
| Application throughput | 1.5 Gbps |
| Connection rate | 9000 connections per second |
| Firewall throughput | 3 Gbps |
| IPS throughput | 1.5 Gbps |
| Threat prevention throughput | 1 Gbps |
| TLS/SSL inspection and decryption throughput | 500 Mbps |
| VPN throughput (IPSec) | 1.3 Gbps |
| Power | |
| Power Consumption Operational | 18.91 Watt |
| Power Device | External power adapter |
| Power Provided | 36 Watt |
| Voltage Required | AC 120/230 V (50/60 Hz) |
