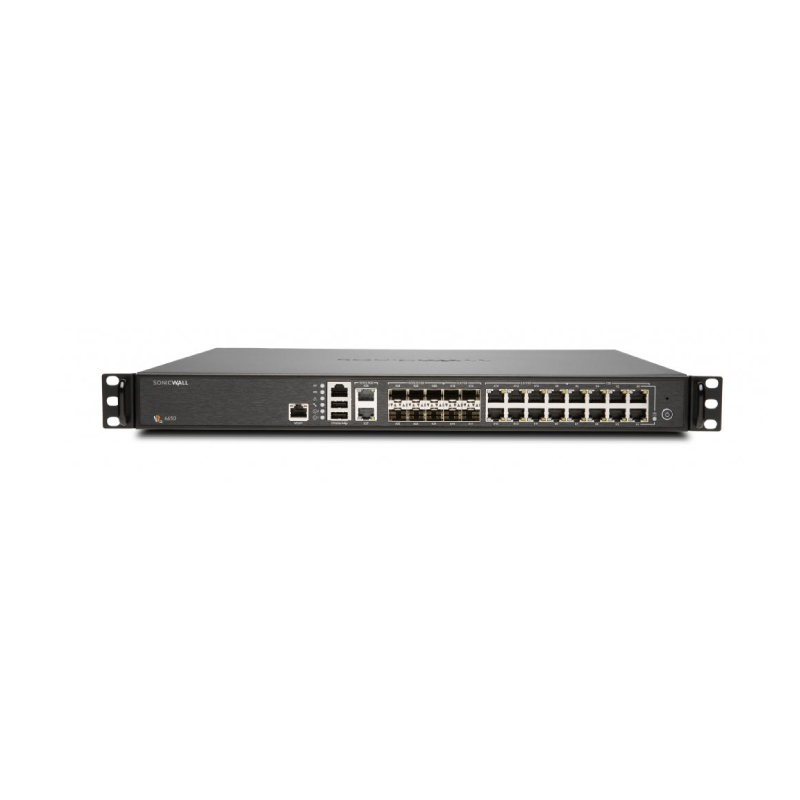

- SonicWall NSa 6650 Total Secure Advanced Edition (1 Year)
The SonicWall NSa 6650 Total Secure Advanced Edition (1 Year) is an elite next-generation firewall engineered for large enterprises, delivering unmatched security against advanced cyber threats while maintaining peak network performance. With a firewall throughput of up to 10.0 Gbps and threat prevention throughput of 5.0 Gbps, the NSa 6650 facilitates seamless traffic inspection without compromising speed. It is adept at supporting up to 2000 concurrent SSL VPN clients, making it an excellent choice for organizations with remote workers or multiple branch locations. Capable of managing 8 million concurrent connections and 5 million sessions, this appliance is designed for scalability in high-traffic environments.
This sophisticated firewall solution offers a robust suite of security features, including Capture Advanced Threat Protection (ATP) for detecting zero-day malware, Deep Packet Inspection (DPI-SSL) for scrutinizing encrypted traffic, and an Intrusion Prevention System (IPS)
| Authentication | |
| Authentication Method | RADIUS, LDAP, internal user database, XAUTH authentication |
| Capacity | |
| DPI connections | 2000000 |
| DPI SSL connections | 100000 |
| IPSec VPN connections | 2000 |
| Maximum number of access points | 192 |
| Single Sign-On (SSO) users | 70000 |
| SPI connections | 5000000 |
| SSL VPN users | 2 |
| Virtual interfaces (VLANs) | 512 |
| VPN tunnels (site-to-site) | 8000 |
| Dimensions & Weight (Shipping) | |
| Shipping Weight | 27.78 lbs |
| Encryption | |
| Encryption Algorithm | DES, Triple DES, MD5, SHA-1, 128-bit AES, 192-bit AES, 256-bit AES |
| Environmental Parameters | |
| Humidity Range Operating | 10 - 90% (non-condensing) |
| Max Operating Temperature | 104 ??F |
| Min Operating Temperature | 32 ??F |
| Expansion / Connectivity | |
| Expansion Slots | 1 expansion slot |
| Interfaces | 6 x 10Gb Ethernet - SFP+, 2 x 10Gb Ethernet, 4 x 2.5Gb Ethernet - SFP (mini-GBIC), 8 x 2.5Gb Ethernet, 8 x Ethernet 1000, 1 x 1000Base-T (management), 1 x console, 2 x USB |
| IP Telephony | |
| VoIP Protocols | SIP, H.323 v1, H.323 v2, H.323 v3, H.323 v4, H.323 v5 |
| IP Telephony Features | |
| VoIP gatekeeper support | Enabled |
| VoIP outbound bandwidth management | Enabled |
| Miscellaneous | |
| Compliant Standards | FCC Class A certified, UL, TUV GS, C-Tick, BSMI, cUL, CB, EMC, RoHS, WEEE, ANATEL, REACH, KCC Class A, LVD, VCCI Class A, MSIP Class A, Mexico CoC |
| MTBF | 17.9 years |
| Processor / Memory / Storage | |
| Flash Memory | 64 GB |
| Software / System Requirements | |
| OS Provided | SonicOS 6.5.2 |
| Software Included | SonicWall Capture Security, Enforced Content Filtering Client |
| Compliance | |
| Compliant Standards | IEEE 802.3, IEEE 802.1p |
| Details | |
| Series | NSA Series |
| Warranty/Returns | 30 Days |
| Manufacturer | SonicWall |
| Features | |
| 3 fans | Enabled |
| Advanced QoS | Enabled |
| Anti-malware protection | Enabled |
| DDos attack prevention | Enabled |
| Deep Packet Inspection (DPI) | Enabled |
| DHCP server | Enabled |
| DNS proxy | Enabled |
| DoS attack prevention | Enabled |
| Intrusion Prevention System (IPS) | Enabled |
| IPFIX | Enabled |
| IPv6 support | Enabled |
| Link Aggregation Control Protocol (LACP) | Enabled |
| NAT support | Enabled |
| RADIUS support | Enabled |
| Reassembly-Free Deep Packet Inspection (RFDPI) | Enabled |
| SNMP support | Enabled |
| Stateful Packet Inspection (SPI) | Enabled |
| Stateful switchover (SSO) | Enabled |
| URL filtering | Enabled |
| VPN support | Enabled |
| WAN load balancing | Enabled |
| General | |
| Bundled Services | 1-year NSa Total Secure Advanced |
| Depth | 16.3 in |
| Device Type | Security appliance |
| Height | 1.8 in |
| Height (Rack Units) | 1U |
| Weight | 17.86 lbs |
| Width | 16.9 in |
| Networking | |
| Connectivity Technology | Wired |
| Data Link Protocol | Gigabit Ethernet, 10 Gigabit Ethernet, 2.5 Gigabit Ethernet |
| Form Factor | Rack-mountable |
| Network / Transport Protocol | TCP/IP, PPTP, UDP/IP, L2TP, ICMP/IP, IPSec, PPPoE, DHCP |
| Remote Management Protocol | SNMP 2, SNMP 3, SSH, CLI |
| Routing Protocol | OSPF, RIP-1, RIP-2, BGP, static IP routing, policy-based routing (PBR) |
| Performance | |
| Anti-malware throughput | 3.5 Gbps |
| Application throughput | 6 Gbps |
| Connection rate | 90000 connections per second |
| Firewall throughput | 12 Gbps |
| Firewall throughput (IMIX) | 2.65 Gbps |
| Full Deep Packet Inspection (DPI) throughput | 3.1 Gbps |
| IPS throughput | 6 Gbps |
| SSL throughput | 1.45 Gbps |
| Threat prevention throughput | 3.1 Gbps |
| VPN throughput | 6 Gbps |
| Power | |
| Installed Qty | 1 |
| Max Supported Qty | 2 |
| Power Consumption Operational | 144.3 Watt |
| Power Device | Internal power supply |
| Power Provided | 350 Watt |
| Power Redundancy | Yes |
| Voltage Required | AC 120/230 V (50/60 Hz) |
