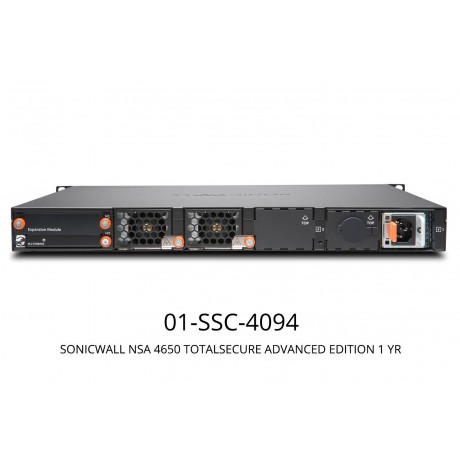

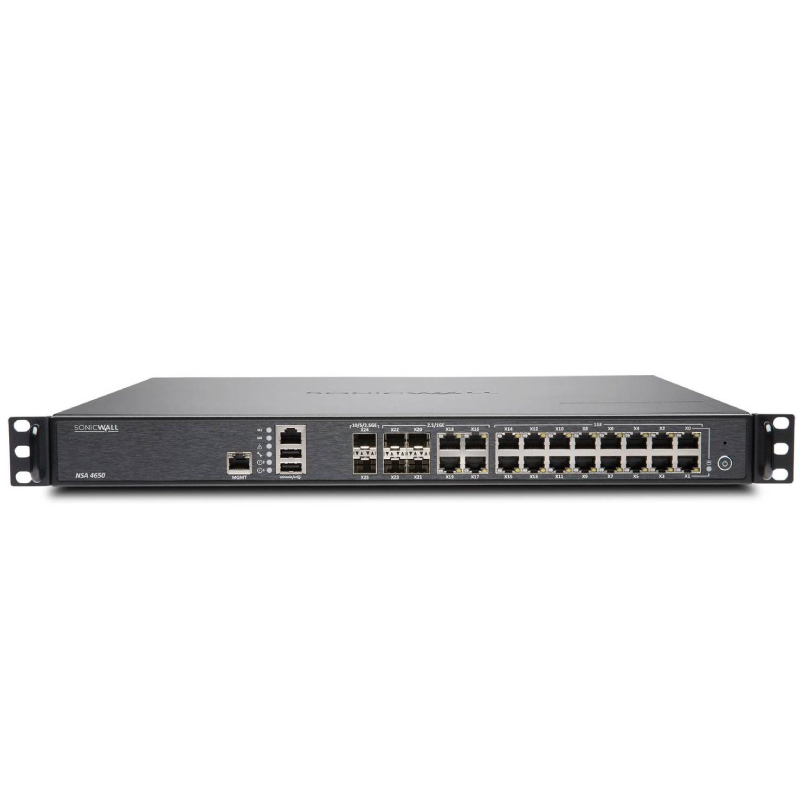

SonicWall NSA 4650 Totalsecure Advanced Edition (1 Year)
Add to Cart for Price
Condition:New
Availability:In Stock
- Networking
- Network Security
- SonicWall
- NSA Series
- NSA 4650
- Appliances
- SonicWall NSa 4650 Total Secure Advanced Edition (1 Year) Base Appliance
The SonicWall NSa 4650 Total Secure Advanced Edition (1 Year) Base Appliance is a robust network security solution tailored for medium-sized enterprises and branch offices. It offers impressive firewall throughput of up to 6.0 Gbps, IPS throughput of 2.3 Gbps, and anti-malware throughput of 2.45 Gbps, ensuring swift and secure data processing. Equipped with 16 Gigabit Ethernet ports, 4 ? 2.5 GbE SFP ports, and 2 ? 10 GbE SFP+ ports, this 1U rack-mountable device supports extensive connectivity for high-traffic networks. With dual redundant 350W power supplies, the NSa 4650 ensures reliable uptime, crucial for maintaining uninterrupted operations in critical environments.
Leveraging SonicWall?s patented Reassembly-Free Deep Packet Inspection (RFDPI) technology, the NSa 4650 offers comprehensive threat detection and prevention capabilities, including protection against encrypted malware and command-and-control attacks. The Total Secure Advanced Edition includes a suite of security services such as intrusion prevention, gateway anti-virus, and application control, alongside VPN support for up to 4,000 IPSec VPN clients and 1,000 SSL VPN users. The appliance supports up to 128 wireless access points, 4,000 site-to-site VPN tunnels, and 400 VLAN interfaces, all managed through an intuitive GUI designed to streamline deployment and reduce total cost of ownership. This package ensures that your network is not only secure but also efficiently managed and scalable for future growth.
| Authentication | |
| Authentication Method | RADIUS, internal user database, XAUTH authentication |
| Capacity | |
| DPI connections | 1000000 |
| IPSec VPN connections | 2000 |
| Maximum number of access points | 128 |
| Single Sign-On (SSO) users | 60000 |
| SPI connections | 3000000 |
| SSL VPN users | 2 |
| Virtual interfaces (VLANs) | 400 |
| VPN tunnels (site-to-site) | 4000 |
| Dimensions & Weight (Shipping) | |
| Shipping Weight | 24.91 lbs |
| Encryption | |
| Encryption Algorithm | DES, Triple DES, MD5, SHA-1, 128-bit AES, 192-bit AES, 256-bit AES |
| Environmental Parameters | |
| Humidity Range Operating | 10 - 90% (non-condensing) |
| Max Operating Temperature | 104 ??F |
| Min Operating Temperature | 32 ??F |
| Expansion / Connectivity | |
| Expansion Slots | 1 (total) / 1 (free) x expansion slot |
| Interfaces | 2 x 10Gb Ethernet - SFP+, 4 x 2.5Gb Ethernet - SFP (mini-GBIC), 4 x 2.5Gb Ethernet - RJ-45, 16 x 1000Base-T - RJ-45, 2 x USB - Type A, 1 x 1000Base-T (management) - RJ-45, 1 x console - RJ-45 |
| IP Telephony | |
| VoIP Protocols | SIP, H.323 v3, H.323 v4, H.323 v1, H.323 v2, H.323 v5 |
| IP Telephony Features | |
| VoIP gatekeeper support | Enabled |
| VoIP outbound bandwidth management | Enabled |
| Miscellaneous | |
| Compliant Standards | FCC Class A certified, UL, TUV GS, C-Tick, BSMI, cUL, CB, EMC, RoHS, WEEE, ANATEL, REACH, KCC Class A, LVD, VCCI Class A, MSIP Class A |
| MTBF | 17.6 years |
| Processor / Memory / Storage | |
| Flash Memory | 32 GB |
| Software / System Requirements | |
| OS Provided | SonicOS 6.5.1 |
| Compliance | |
| Compliant Standards | IEEE 802.3, IEEE 802.1p |
| Details | |
| Series | NSA Series |
| Warranty/Returns | 30 Days |
| Manufacturer | SonicWall |
| Features | |
| 3 fans | Enabled |
| Anti-malware protection | Enabled |
| Anti-spam protection | Enabled |
| DDos attack prevention | Enabled |
| Deep Packet Inspection (DPI) | Enabled |
| DHCP relay | Enabled |
| DHCP server | Enabled |
| DNS proxy | Enabled |
| DoS attack prevention | Enabled |
| Intrusion Prevention System (IPS) | Enabled |
| IPFIX | Enabled |
| Link Aggregation Control Protocol (LACP) | Enabled |
| Load balancing | Enabled |
| NAT support | Enabled |
| NetFlow | Enabled |
| Quality of Service (QoS) | Enabled |
| RADIUS support | Enabled |
| Stateful Packet Inspection (SPI) | Enabled |
| Stateful switchover (SSO) | Enabled |
| URL filtering | Enabled |
| VPN support | Enabled |
| General | |
| Bundled Services | 1 year Total Secure |
| Depth | 16.3 in |
| Device Type | Security appliance |
| Height | 1.8 in |
| Height (Rack Units) | 1U |
| Weight | 15.21 lbs |
| Width | 16.9 in |
| Networking | |
| Connectivity Technology | Wired |
| Data Link Protocol | Gigabit Ethernet, 10 Gigabit Ethernet, 2.5 Gigabit Ethernet |
| Form Factor | Rack-mountable |
| Network / Transport Protocol | TCP/IP, PPTP, UDP/IP, L2TP, ICMP/IP, IPSec, PPPoE, DHCP |
| Remote Management Protocol | SNMP 2, SNMP 3, HTTP, HTTPS, CLI |
| Routing Protocol | OSPF, RIP-1, RIP-2, BGP, static IP routing, policy-based routing (PBR) |
| Performance | |
| Anti-malware throughput | 1.25 Gbps |
| Application throughput | 3 Gbps |
| Connection rate | 40000 connections per second |
| Firewall throughput | 6 Gbps |
| Firewall throughput (IMIX) | 1.3 Gbps |
| Full Deep Packet Inspection (DPI) throughput | 1.2 Gbps |
| IPS throughput | 2.3 Gbps |
| SSL throughput | 500 Mbps |
| VPN throughput | 3 Gbps |
| Power | |
| Installed Qty | 1 |
| Max Supported Qty | 2 |
| Power Consumption Operational | 93.6 Watt |
| Power Device | Internal power supply |
| Power Provided | 350 Watt |
| Power Redundancy | Optional |
| Voltage Required | AC 120/230 V (50/60 Hz) |
