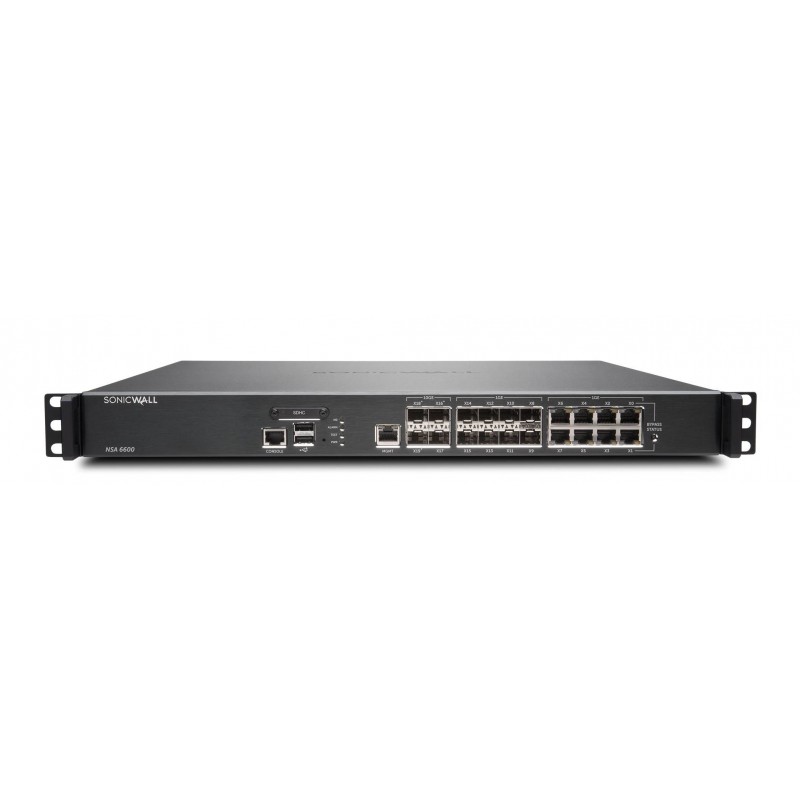

NSA 6600 TotalSecure Advanced Edition Appliance Bundle
Add to Cart for Price
Condition:New
Availability:In Stock
- Networking
- Network Security
- SonicWall
- NSA Series
- NSA 6600
- Appliances
- SonicWall NSa 6600 Total Secure- Advanced Edition (1 Year)
The SonicWall NSa 6600 Total Secure- Advanced Edition (1 Year) is a robust network security appliance designed to meet the demands of corporate data centers and distributed enterprises with 250 to 1,000 users. This high-performance device integrates powerful firewall capabilities, VPN support, and advanced threat protection features to safeguard against modern cyber threats. The 1-Year Total Secure Subscription ensures continuous security with real-time updates, 24x7 support, and advanced protection, making it an ideal solution for maintaining a secure and efficient network environment. Equipped with the Advanced Gateway Security Suite (AGSS), Capture Advanced Threat Protection, Gateway Anti-Malware, and Intrusion Prevention, the NSa 6600 delivers comprehensive protection and high throughput performance, including 12 Gbps firewall throughput and 4.5 Gbps IPS throughput.
Featuring scalable wireless management and traffic visibility, the NSa 6600 supports up to 128 wireless access points and provides granular control of over 1,500,000 concurrent sessions. It includes SSL and VPN support with 1.3 Gbps SSL Inspection throughput and up to 7,500 VPN client tunnels, ensuring secure site-to-site and remote access connections. The appliance is equipped with 9 x 1-GbE RJ45, 8 x 1-GbE SFP, and 4 x 10-GbE SFP+ ports, offering flexible connectivity options. With SonicOS and SonicWall GMS, deployment and management are streamlined, while compliance with global security standards ensures adherence to industry regulations. The NSa 6600 is a premium solution for enterprises seeking comprehensive network security with advanced protection and performance, backed by SonicWall's cloud-based threat intelligence for continuous defense against evolving cyber risks.
| Authentication | |
| Authentication Method | RADIUS, internal user database, Active Directory, XAUTH authentication |
| Capacity | |
| Connection / user qty | 750000 |
| DPI connections | 500000 |
| IPSec VPN connections | 2000 |
| Maximum number of access points | 128 |
| New sessions per second | 90000 |
| SSL VPN licenses | 2 |
| Virtual interfaces (VLANs) | 500 |
| VPN tunnels (site-to-site) | 6000 |
| COMMUNICATIONS | |
| Supported Flash Memory Cards | SD Memory Card |
| Encryption | |
| Encryption Algorithm | DES, Triple DES, MD5, SHA-1, 128-bit AES, 192-bit AES, 256-bit AES |
| Environmental Parameters | |
| Humidity Range Operating | 10 - 90% (non-condensing) |
| Max Operating Temperature | 104 ??F |
| Min Operating Temperature | 32 ??F |
| Expansion / Connectivity | |
| Expansion Slots | 1 expansion slot |
| Interfaces | 4 x 10Gbase-X - SFP+ ; 8 x 1000Base-X - SFP (mini-GBIC) ; 8 x 1000Base-T - RJ-45 ; 2 x USB - Type A ; 1 x 1000Base-T (management) - RJ-45 ; 1 x management - RJ-45 |
| IP Telephony | |
| VoIP Protocols | SIP, H.323 v3, H.323 v4, H.323 v1, H.323 v2, H.323 v5 |
| IP Telephony Features | |
| VoIP gatekeeper support | Enabled |
| VoIP outbound bandwidth management | Enabled |
| Miscellaneous | |
| Compliant Standards | FCC Class A certified, UL, TUV GS, C-Tick, BSMI, ICSA Firewall certified, cUL, ICSA Antivirus, CB, EMC, RoHS, FIPS 140-2, WEEE, ANATEL, REACH, ICES Class A, KCC Class A, VPNC certified, LVD, VCCI Class A, MSIP Class A |
| Processor / Memory / Storage | |
| RAM | 4 GB |
| Software / System Requirements | |
| OS Provided | SonicOS |
| Compliance | |
| Compliant Standards | IEEE 802.3, IEEE 802.1p |
| Details | |
| Series | NSA Series |
| Warranty/Returns | 30 Days |
| Manufacturer | SonicWall |
| Features | |
| Anti-malware protection | Enabled |
| Anti-spam protection | Enabled |
| Antivirus analysis | Enabled |
| Bandwidth control | Enabled |
| DDos attack prevention | Enabled |
| Deep Packet Inspection (DPI) | Enabled |
| DHCP server | Enabled |
| DoS attack prevention | Enabled |
| Hot swappable dual fans | Enabled |
| Intrusion Prevention System (IPS) | Enabled |
| IPFIX | Enabled |
| Link Aggregation Control Protocol (LACP) | Enabled |
| Load balancing | Enabled |
| NAT support | Enabled |
| NetFlow | Enabled |
| Quality of Service (QoS) | Enabled |
| Stateful switchover (SSO) | Enabled |
| URL filtering | Enabled |
| VPN support | Enabled |
| General | |
| Bundled Services | 1 year Total Secure |
| Depth | 19.1 in |
| Device Type | Security appliance |
| Height | 1.8 in |
| Height (Rack Units) | 1U |
| Weight | 14.77 lbs |
| Width | 17 in |
| Networking | |
| Connectivity Technology | Wired |
| Data Link Protocol | Gigabit Ethernet, 10 Gigabit Ethernet |
| Form Factor | Rack-mountable |
| Network / Transport Protocol | TCP/IP, PPTP, UDP/IP, L2TP, ICMP/IP, IPSec, PPPoE, DHCP |
| Remote Management Protocol | SNMP 2, SNMP 3, HTTP, HTTPS, CLI |
| Routing Protocol | OSPF, RIP-1, RIP-2, BGP, static IP routing, policy-based routing (PBR) |
| Performance | |
| Anti-malware throughput | 3 Gbps |
| Application throughput | 4.5 Gbps |
| Firewall throughput | 12 Gbps |
| Firewall throughput (IMIX) | 3.5 Gbps |
| Full Deep Packet Inspection (DPI) throughput | 3 Gbps |
| IPS throughput | 4.5 Gbps |
| SSL throughput | 1.3 Gbps |
| VPN throughput | 5 Gbps |
| Power | |
| Installed Qty | 1 |
| Max Supported Qty | 1 |
| Power Consumption Operational | 113.1 Watt |
| Power Device | Internal power supply |
| Power Provided | 250 Watt |
| Voltage Required | AC 120/230 V (50/60 Hz) |
