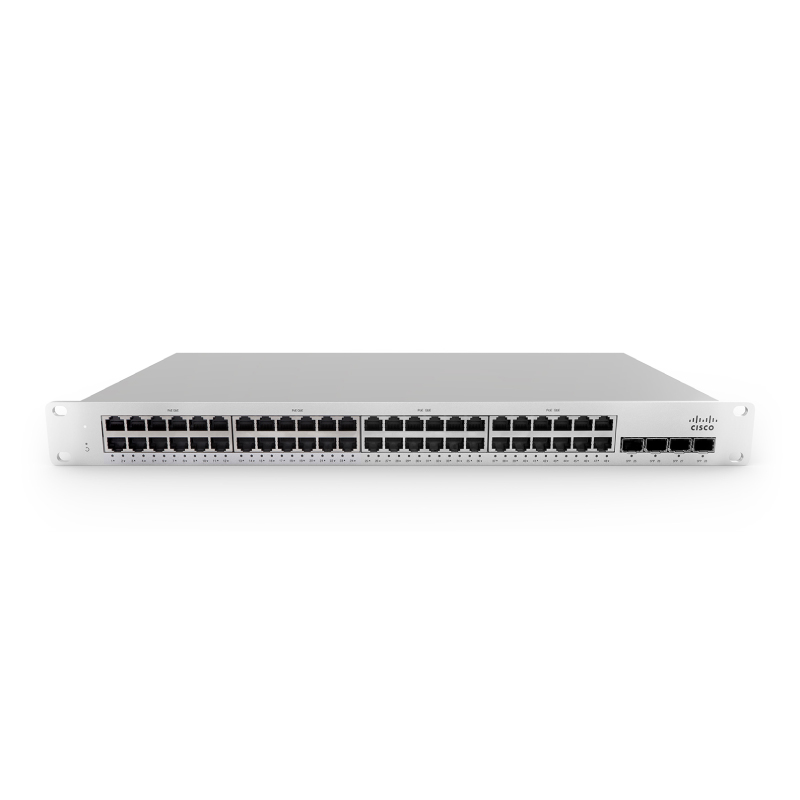

Meraki MS350-48FP L3 Stck Cld-Mngd 48x GigE 740W PoE Switch
The Cisco Meraki MS350 series switches provide reliable and high bandwidth access switching ideal for deploying in campus networks. With high speed stacking capabilities and 10G SFP+ uplinks built in on every model, redundancy and performance are guaranteed. This family also supports options for multigigabit, UPoE, redundant, field-replaceable power supplies for mission critical networks.
Cisco Meraki switches are built from the ground up to be easy to manage without compromising any of the power and flexibility traditionally found in enterprise-class switches.
The Meraki MS is managed through an elegant, intuitive cloud interface, rather than a cryptic command line. To bring up a Meraki switch, just plug it in; there's no need for complicated configuration files, or even direct physical access to the switch.
Meraki's centralized management gives administrators deep visibility into the network and how it's used. See which switches are near capacity across hundreds of sites. Find all configuration changes made by a certain person with instant search.
|Operating Temperature||32 °F to 104 °F (0 °C to 40 °C), 45 °C for MS350, Humidity- 5 to 95% non-condensing, Low acoustic noise for office environments; fanless for MS220-8/P and MS220-24|
|Ethernet switching capabilities|
|Ethernet Switching Capabilities||802.1p Quality of Service prioritization, 802.1Q VLAN tagging for up to 4,095 VLANs, 802.1D Spanning Tree Protocol (STP) and 802.1w Rapid Spanning Tree, Broadcast storm control, 802.1ab Link Layer Discovery Protocol (LLDP) and Cisco Discovery Protocol (CDP), 802.3ad Link aggregation with up to 8 ports per aggregate, Port mirroring, IGMP snooping for multicast filtering, MAC forwarding entries|
|Idle/Full Load Power(W)|
|Idle/Full Load Power(W)||215/1655|
|Interface||24x 10/100/1000BASE-T Ethernet RJ45 including 8x Multigigabit capable ports, 4x SFP+ for 10GbE uplink, 2x stacking connectors, Auto negotiation and crossover detection (auto-MDIX crossover)|
|Layer 3 (MS320/350 series)|
|Layer 3 (MS320/350 Series)||Static routing, DHCP Helper, OSPFv2 3Warm Spare for L3 gateway redundancy, DHCP server, Automatic DHCP failover in warm spare mode|
|Management||Managed via the Web with the Meraki cloud management platform, Integrated with Meraki wireless, security appliance, and device management, Zero-touch remote provisioning (no staging needed), Detailed historical per-port and per-client usage statistics, DHCP, client, and hostname fingerprinting, SNMPD allows integration with third party network management solution, Automatic firmware upgrades|
|Mounting||Rack-mountable with included rack mount hardware (except MS220-8/P), Desktop-mountable with included feet, Wall-mountable on MS220-8/PKensington lock on MS220-8/P|
|Physical Dimensions||Weight- 14.48 lb. (6.57 kg), Size 19.08" (w) x 20.3" (l) x 1.75" (h) (48.5 x 51.6 x 4.4 cm) (with power supply fitted)|
|Power Input||100 - 240 VAC, 47-63 Hz, Power consumption|
|Regulatory||CSA (US), IC (Canada)CE (Europe), C-Tick (Australia/New Zealand), RoHS|
|Remote Diagnostics||Email and SMS (text) alerts 1, Cable testing Live remote packet capture, Aggregated event and configuration change logs with instant search|
|Scalable Stacking||Virtual stacking supports thousands of switch ports in a single logical stack for unified management, monitoring, and configuration, Physical stacking of up to 8 switches with 160Gbps stack bandwidth (MS350)|
|Security||Integrated two-factor authentication, Role-based administration, Corporate wide password policy enforcement, IEEE 802.1x port-based security, MAC-based RADIUS authentication, Sticky MAC, MAC whitelisting, BPDU guard, Root guard, IPv4 ACLs|
|Specs 6||Performance:Non-blocking fabric, 2.5 microsecond latency, Jumbo frame support (9600 byte Ethernet frame)|
|Switching Capacity||432 Gbps|
