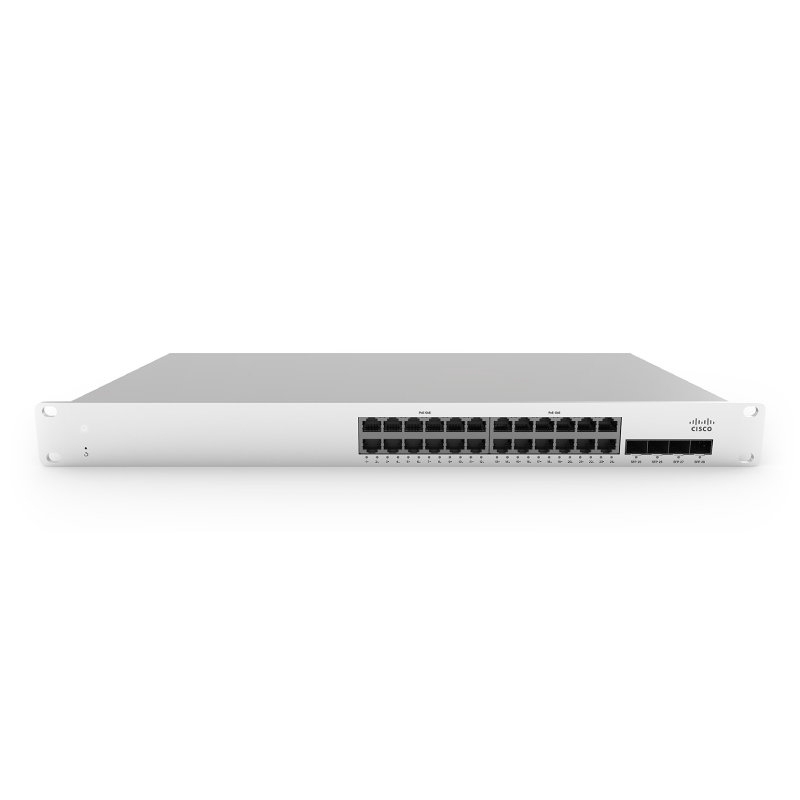

Meraki MS350-24X L3 Stck Cld-Mngd 24xGigE mGig UPOE Switch Appliances

Meraki MS350-24X L3 Stck Cld-Mngd 24xGigE mGig UPOE Switch

$6,333.95
Use coupon getmeraki for a 5% discount on Meraki orders of $10,000 or more
Manufacturer:Meraki
Model:MS350-24X-HW
Condition:New
Availability:In Stock

Available Options

The Cisco Meraki MS350 series switches provide reliable and high bandwidth access switching ideal for deploying in campus networks. With high speed stacking capabilities and 10G SFP+ uplinks built in on every model, redundancy and performance are guaranteed. This family also supports options for multigigabit, UPoE, redundant, field-replaceable power supplies for mission critical networks.

Cisco Meraki switches are built from the ground up to be easy to manage without compromising any of the power and flexibility traditionally found in enterprise-class switches.

The Meraki MS is managed through an elegant, intuitive cloud interface, rather than a cryptic command line. To bring up a Meraki switch, just plug it in; there's no need for complicated configuration files, or even direct physical access to the switch.

Meraki's centralized management gives administrators deep visibility into the network and how it's used. See which switches are near capacity across hundreds of sites. Find all configuration changes made by a certain person with instant search.

Environment
Operating Temperature 32 °F to 104 °F (0 °C to 40 °C), 45 °C for MS350, Humidity- 5 to 95% non-condensing, Low acoustic noise for office environments; fanless for MS220-8/P and MS220-24
Ethernet switching capabilities
Ethernet Switching Capabilities 802.1p Quality of Service prioritization, 802.1Q VLAN tagging for up to 4,095 VLANs, 802.1D Spanning Tree Protocol (STP) and 802.1w Rapid Spanning Tree, Broadcast storm control, 802.1ab Link Layer Discovery Protocol (LLDP) and Cisco Discovery Protocol (CDP), 802.3ad Link aggregation with up to 8 ports per aggregate, Port mirroring, IGMP snooping for multicast filtering, MAC forwarding entries
Idle/Full Load Power(W)
Idle/Full Load Power(W) 57/466
Interface
Interface 24x 10/100/1000BASE-T Ethernet RJ45, 4x SFP+ for 10GbE uplink, Auto negotiation and crossover detection (auto-MDIX crossover)
Layer 3 (MS320/350 series)
Layer 3 (MS320/350 Series) Static routing, DHCP Helper, OSPFv2 3Warm Spare for L3 gateway redundancy, DHCP server, Automatic DHCP failover in warm spare mode
Management
Management Managed via the Web with the Meraki cloud management platform, Integrated with Meraki wireless, security appliance, and device management, Zero-touch remote provisioning (no staging needed), Detailed historical per-port and per-client usage statistics, DHCP, client, and hostname fingerprinting, SNMPD allows integration with third party network management solution, Automatic firmware upgrades
Mounting
Mounting Rack-mountable with included rack mount hardware (except MS220-8/P), Desktop-mountable with included feet, Wall-mountable on MS220-8/PKensington lock on MS220-8/P
Physical Dimensions
Physical Dimensions Weight- 13.14 lb. (5.96 kg), Size- 19.08" (w) x 18.8" (l) x 1.75" (h) (48.5 x 47.8 x 4.4 cm) (with power supply fitted)
Power
Power Input 100 - 240 VAC, 47-63 Hz, Power consumption
Regulatory
Regulatory CSA (US), IC (Canada)CE (Europe), C-Tick (Australia/New Zealand), RoHS
Remote Diagnostics
Remote Diagnostics Email and SMS (text) alerts 1, Cable testing Live remote packet capture, Aggregated event and configuration change logs with instant search
Scalable stacking
Scalable Stacking Virtual stacking supports thousands of switch ports in a single logical stack for unified management, monitoring, and configuration, Physical stacking of up to 8 switches with 160Gbps stack bandwidth (MS350)
Security
Security Integrated two-factor authentication, Role-based administration, Corporate wide password policy enforcement, IEEE 802.1x port-based security, MAC-based RADIUS authentication, Sticky MAC, MAC whitelisting, BPDU guard, Root guard, IPv4 ACLs
Specs 6
Specs 6 Performance:Non-blocking fabric, 2.5 microsecond latency, Jumbo frame support (9600 byte Ethernet frame)
Switching Capacity
Switching Capacity 128 Gbps
