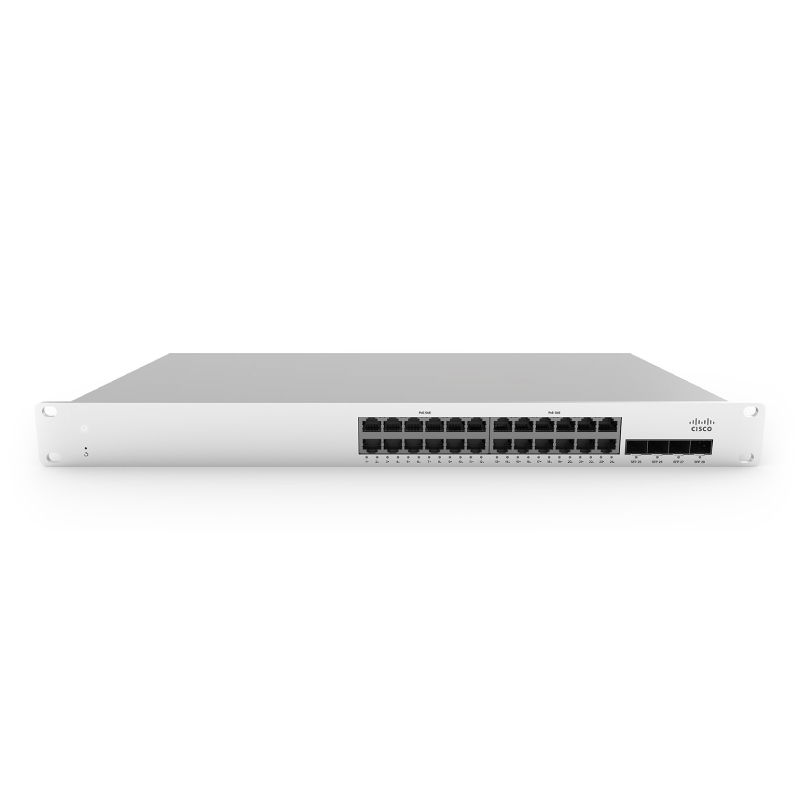

Meraki MS250-24P L3 Stck Cld-Mngd 24x GigE 370W PoE Switch
The Cisco Meraki MS250 series switches provide reliable access switching ideal for deploying in branches and small campuses. With stacking capabilities and 10G SFP+ uplinks on every model, redundancy and performance are guaranteed. This family also supports redundant, field-replaceable power supplies for mission critical networks.
Cisco Meraki switches are built from the ground up to be easy to manage without compromising any of the power and flexibility traditionally found in enterprise-class switches.
The Meraki MS is managed through an elegant, intuitive cloud interface, rather than a cryptic command line. To bring up a Meraki switch, just plug it in; there's no need for complicated configuration files, or even direct physical access to the switch.
Meraki's centralized management gives administrators deep visibility into the network and how it's used. See which switches are near capacity across hundreds of sites. Find all configuration changes made by a certain person with instant search.
|Operating Temperature||32°F to 104°F (0°C to 40°C), Humidity- 5 to 95% non-condensing, MS225-24, MS250-24 feature fanless operation|
|Ethernet switching capabilities|
|Ethernet Switching Capabilities||802.1p Quality of Service prioritization, 802.1Q VLAN tagging with 4,095 addressable tags, 802.1w, 802.1D Rapid Spanning Tree Protocol (RSTP, STP), Broadcast storm control, 802.1ab Link Layer Discovery Protocol (LLDP) and Cisco Discovery Protocol (CDP), 802.3ad link aggregation with up to 8 ports per aggregate, Multichassis aggregates supported on stacked switches, IGMP snooping for multicast filtering, MAC forwarding entries|
|Flexible Stacking||Physical stacking of up to 8 switches with 80 Gbps stack bandwidth on all models, Virtual stacking supports thousands of switch ports in a single logical stack for unified management, monitoring, and configuration|
|Interface||24 x 10/100/1000BASE-T Ethernet (RJ45) with auto-MDIX crossover, 802.3af/802.3at Power-over-Ethernet (PoE/PoE+) on MS250-24P, available on all ports (maximum of 30W per port for PoE+), 4 x SFP+ 10 Gigabit Ethernet interfaces for uplink, 2 x Stacking interfaces, Auto negotiation and crossover detection|
|Layer 3||Static Routing, DHCP Relay|
|Management||Managed via the cloud using the Meraki dashboard, Integrated with Meraki Wireless and complete portfolio of IT products and solutions, No-touch remote deployment (no staging needed), Detailed historical per-port and per-client usage statistics, DHCP, client, and hostname fingerprinting, SNMPd and SYSLOG support for integration with other network management solutions, Seamless over-the-web firmware upgrades with scheduling & control|
|Mounting||1U Rack-mountable with included rack mount hardware, 2-post front mounting options available|
|MTBF at 25°C|
|MTBF At 25°C||633,811|
|Non-blocking Switching Fabric, Switching Capacity||128Gbps (24-port models), 176Gbps (48-port models), Forwarding rate (mpps) 95.24 (24-port models), 127.98 (48-port models), Jumbo frame support (9600 byte Ethernet frame), Flow control support|
|Physical dimensions (HxWxD)|
|Physical Dimensions (HxWxD)||1.72" x 19.08" x 16.39"(4.38cm x 48.46cm x 41.6cm)|
|Physical Weight||9.9 lb (4.5 kg)|
|Power Input||100 - 240 VAC, 47-63 Hz, Power consumption- 14 - 434 W, RPS interface- Requires RPS-2300 chassis, see Cisco RPS-2300 Datasheet for further information|
|Power over Ethernet|
|Power Over Ethernet||802.3af (PoE) 15.4 W per port and 802/.3at (PoE+) 25.5 W per port, Maximum PoE output (48LP/48FP)- 370 / 740 W, PoE available on all ports simultaneously|
|Regulatory||CSA-US (US, Canada), FCC (USA), IC (Canada), CE (Europe), RCM (Australia/New Zealand), RoHS|
|Remote Diagnostics||Email, SMS and Mobile push notification alerts, Cable testing and link failure detection with alerting, Live remote packet capture, Dynamic and interactive network discovery and topology, Aggregated event logs with instant search|
|Security||Integrated two-factor authentication for Dashboard management, Role-based access control (RBAC) with granular device and configuration control, SSO, Corporate-wide password policy enforcement, IEEE 802.1X RADIUS, hybrid authentication and RADIUS server testing, MAC-based RADIUS authentication (MAB), Port security- Sticky MAC, MAC whitelisting, DHCP snooping, detection and blocking, STP Enhancements include BPDU guard, Root guard, IPv4 ACLs|
|Warranty||Full lifetime hardware warranty with next-day advanced replacement included|
