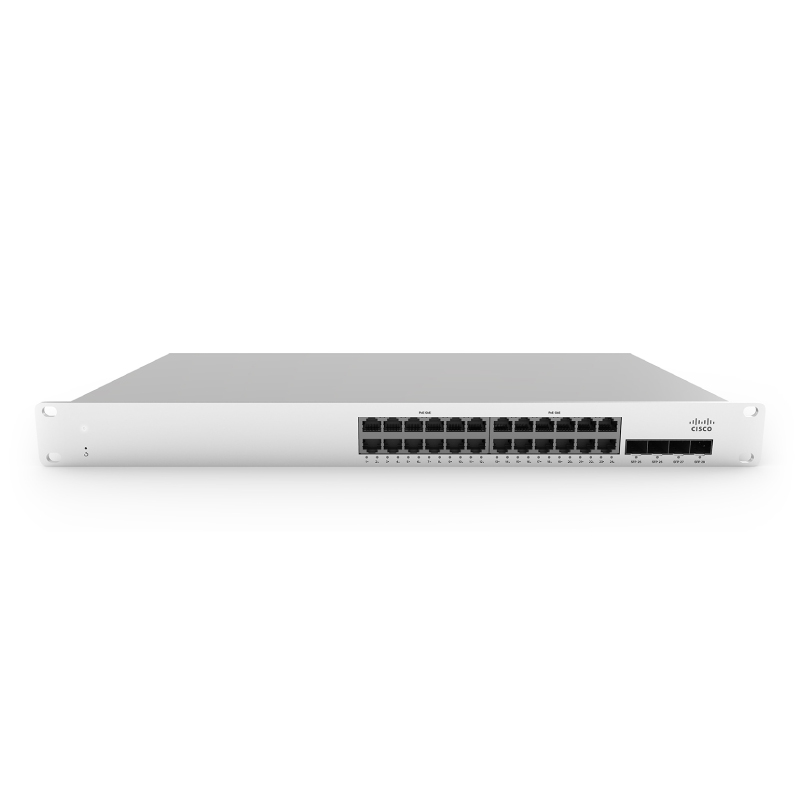

Meraki MS225-24 L2 Stck Cld-Mngd 24x GigE Switch Appliances

Meraki MS225-24 L2 Stck Cld-Mngd 24x GigE Switch

Use coupon getmeraki for a 10% discount on Meraki orders of $10,000 or more
Availability:In Stock

Available Options

The Cisco Meraki MS225 series switches provide layer 2 access switching and are ideal for deploying to branch locations. With stacking capabilities and 10G SFP+ uplinks on every model, performance is guaranteed. This family also supports an optional, rack-mountable remote PSU (Cisco RPS-2300) for power redundancy requirements.

All Meraki are managed through an elegant, intuitive cloud interface, rather than a cryptic command line. To bring up a Meraki switch, just plug it in; there's no need for complicated configuration files, or even direct physical access to the switch.

Meraki's centralized management gives administrators deep visibility into the network and how it's used. See which switches are near capacity across hundreds of sites. Find all configuration changes made by a certain person with instant search.

Download PDF datasheet for detailed product information
Operating Temperature 32 °F to 104 °F (0 °C to 40 °C), 45 °C, Humidity- 5 to 95% non-condensing, MS210-24, MS210-48 feature fanless operation
Ethernet switching capabilities
Ethernet Switching Capabilities 802.1p Quality of Service, 8 queues and configurable DSCP to CoS mapping, 802.1Q VLAN and trunking support for up to 4,094 VLANs, 802.1w, 802.1D Rapid Spanning Tree Protocol (RSTP, STP), Broadcast storm control, 802.1ab Link Layer Discovery Protocol (LLDP) and Cisco Discovery Protocol (CDP), 802.3ad Link aggregation with up to 8 ports per aggregate, Multichassis aggregates, supported on stacked switches, Port mirroring, IGMP snooping for multicast filtering, MAC forwarding entries
Flexible stacking
Flexible Stacking Physical stacking of up to 8 switches with 80 Gbps stack bandwidth on all models, Virtual stacking supports thousands of switch ports in a single logical stack for unified, management, monitoring, and configuration, Compatible with the MS225
Interface 48 x 10/100/1000BASE-T Ethernet, RJ45 with auto negotiation and crossover detection (auto-MDIX crossover), 4 x 1GbE SFP uplink, 2 x stacking ports, RJ45 Management port
Layer 3
Layer 3 Static routing, DHCP Relay
Management Managed via the Web with the Meraki cloud management platform, Integrated with Meraki Wireless and complete portfolio of IT products and solutions,Zero-touch remote provisioning (no staging needed), Detailed historical per-port and per-client usage statistics, DHCP, client, and hostname fingerprinting, SNMPd and SYSLOG support for integration with other network management solutions, Automatic firmware upgrades with scheduling control
Mounting 1U Rack-mountable with included rack mount hardware, 2-post front mounting options available, Desktop-mountable with included feet
MTBF at 25°C
MTBF At 25°C 381,015
Switching Capacity 128Gbps on 24-port models, 176Gbps on 48-port models, Forwarding rate- 41.67mpps on 24-port models, 77.38mpps on 48-port models, Jumbo frame support (9578 byte Ethernet frame), Flow control support
Physical dimensions (HxWxD)
Physical Dimensions (HxWxD) 1.72" x 19.08" x 13.38" (4.38 x 48.46 x 34cm)
Physical Weight
Physical Weight 9.63 lb (4.37 kg)
Power Input 100 - 240 VAC, 47-63 Hz, Power consumption- 15 - 882W, RPS interface- Requires RPS-2300 chassis,
Power over Ethernet
Power Over Ethernet 370 W
Regulatory CSA-US (US, Canada), FCC (USA), IC (Canada), CE (Europe), RCM (Australia/New Zealand), RoHS
Remote Diagnostics
Remote Diagnostics Email, SMS and Mobile push notification alerts , Cable testing and link failure detection with alerting, Live remote packet capture, Dynamic and interactive network discovery and topology, Combined event and configuration change logs with instant search
Security Integrated two-factor authentication for Dashboard management, Role-based access control (RBAC) with granular device and configuration control, SSO, Corporate-wide password policy enforcement, IEEE 802.1X RADIUS, hybrid authentication and RADIUS server testing, MAC-based RADIUS authentication (MAB), Port security- Sticky MAC, MAC whitelisting, DHCP snooping, detection and blocking, STP Enhancements include BPDU guard, Root guard, IPv4 ACLs
Warranty Full lifetime hardware warranty with next-day advanced replacement included
