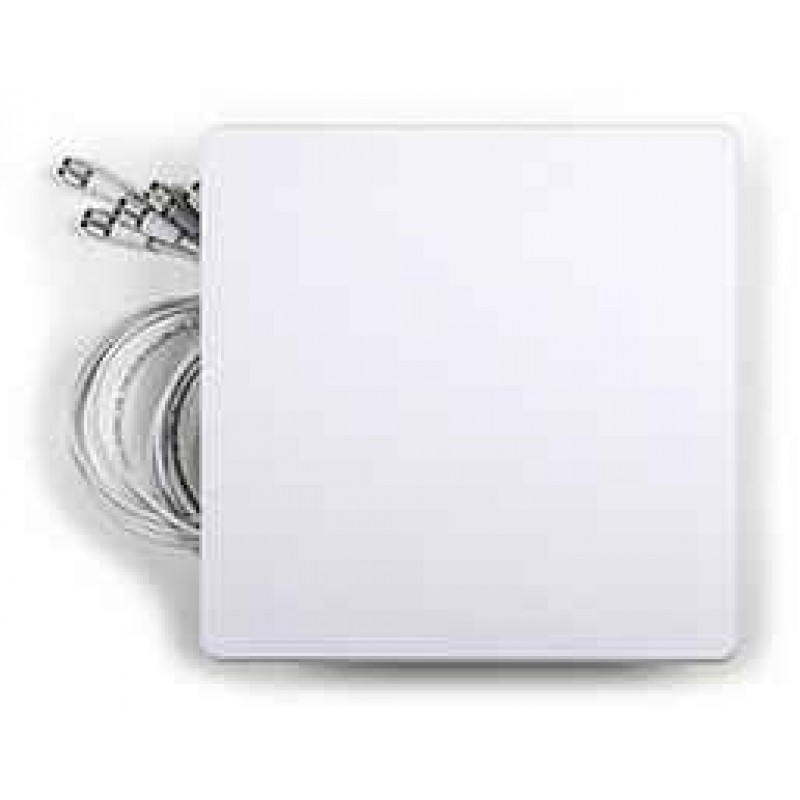

Meraki Indoor Dual-band Wide Patch Antenna, 6-port Antennas

Meraki Indoor Dual-band Wide Patch Antenna, 6-port

$452.66
Manufacturer:Meraki
Model:MA-ANT-3-E6
Condition:New
Availability:Backorder

The Wide Patch antenna is ideal for wall-mounted deployments, aesthetic consensus installations in low-density applications and wall-mounted or ceiling-mounted below 25 ft in high-density applications. Some example use cases are in vestibules with very high ceilings but few devices connecting and lecture halls where install is close to the users.

Electrical
Antenna Type Wide Patch
Frequency Range 2.400 - 2.500 GHz, 5.150 - 5.875
Gain 7 dBi (2.4) / 6.3 dBi (5)
Half Power Beamwidth / Horizontal 60°
Half Power Beamwidth / Vertical 60°
Polarization Linear, +/- 45°
Physical and Environmental
Connector RP-TNC
Dimensions 10.83" x 10.83" 0.93" (275 mm x 275 mm x 23.5 mm)
Humidity 5% to 93%
Material PC-ABS
Temperature 32 °F to 104 °F (0 °C to 40 °C)
Weight 41.27 oz (1.17 kg)
