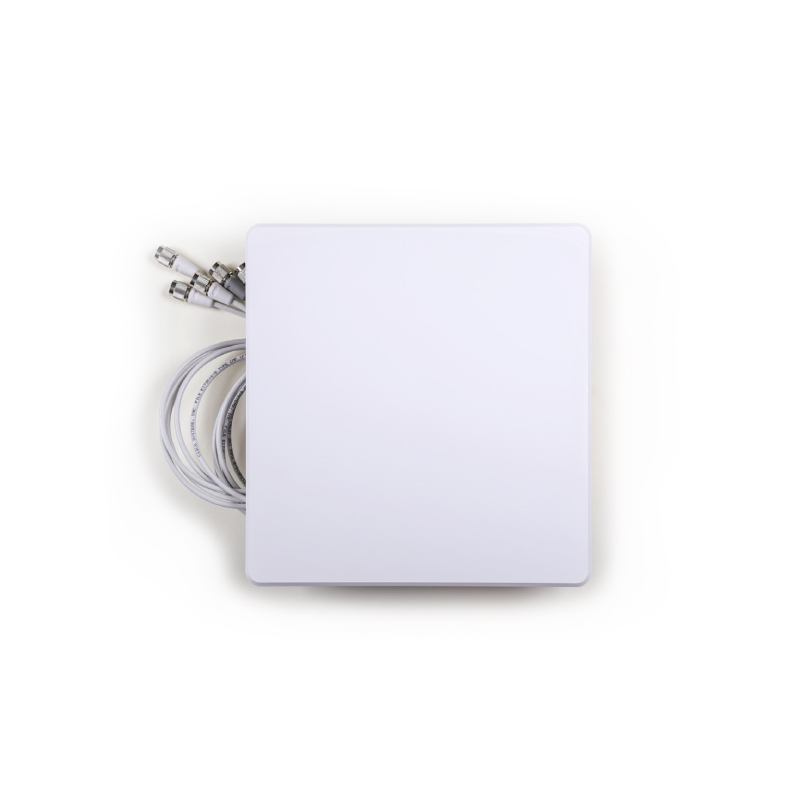

Meraki Indoor Dual-band Narrow Patch Antenna, 6-port

$1,108.05

Use coupon getmeraki for a 10% discount on Meraki orders of $10,000 or more

Manufacturer:Meraki

Model:MA-ANT-3-F6
Condition:New
Availability:In Stock

Qty

The Narrow Patch antenna is ideal for high ceiling (25+ ft) aesthetic consensus installations in high-density applications and where APs are covering high-density users in small zones. Some example use cases are in large lecture halls/stadiums as well as event venue centers.

Download PDF datasheet for detailed product information

Electrical
Antenna Type	Narrow Patch
Frequency Range	2.400 - 2.500 GHz, 5.150 - 5.875
Gain	11.2 dBi (2.4) / 10.8 dBi (5)
Half Power Beamwidth / Horizontal	30°
Half Power Beamwidth / Vertical	30°
Polarization	Linear, +/- 45°
Physical and Environmental
Connector	RP-TNC
Dimensions	25.98" x 20.87" 5.12" (660 mm x 530 mm x 130 mm)
Humidity	5% to 93%
Material	PC-ABS
Temperature	32 °F to 104 °F (0 °C to 40 °C)
Weight	7.1 lbs (113.6 oz)
