Meraki Dual Band Sector Antenna Antennas

Meraki Dual Band Sector Antenna

$217.67
Manufacturer:Meraki
Model:MA-ANT-27
Condition:New
Availability:Backordered

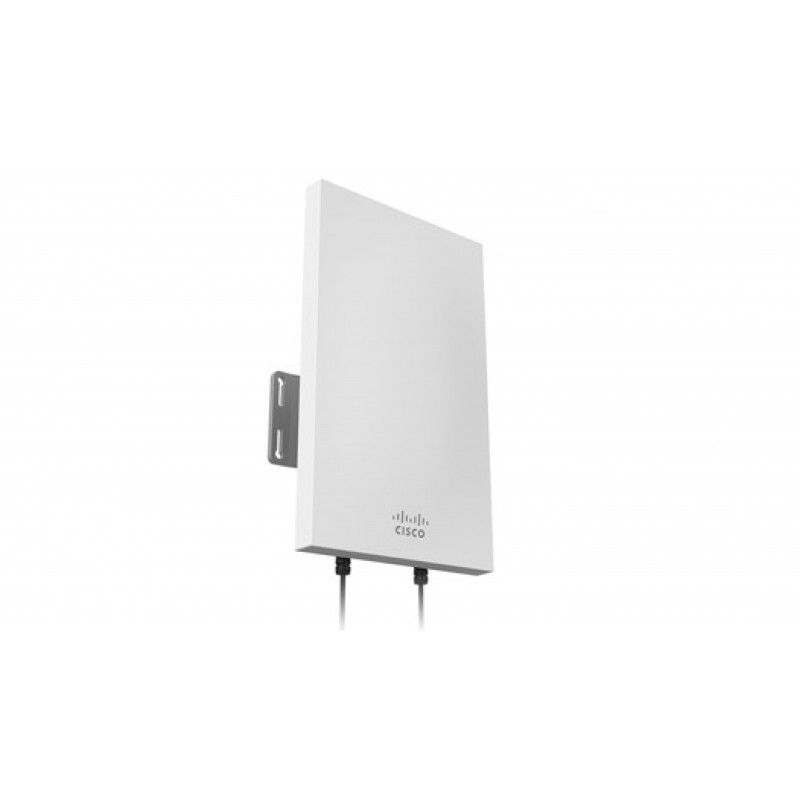

The Cisco Meraki ANT-27 sector antenna is a 9 / 12 dBi, MIMO, dual-band 2.4 and 5 GHz antenna ideal for providing client coverage over focused areas or creating backhaul links. It is designed for use with Meraki APs that have N-type connectors.

Electrical
Antenna Type Sector
Frequency Range 2.400 - 2.500 GHz, 5.150 - 5.875
Gain 9 / 12 dBi
Half Power Beamwidth / Horizontal 86° / 65°
Half Power Beamwidth / Vertical 34° / 18°
Polarization linear, vertical / horizontal
Physical and Environmental
Connector 2 x N-type
Dimensions 9.1" x 5.5" x 1.9" (230 mm x 140 mm x 48 mm)
Humidity 5% to 95%
Material UV resistant plastic
Temperature -40° F - 158° F (-40° C - 70° C)
Weight 1.4 lbs (630 g)
