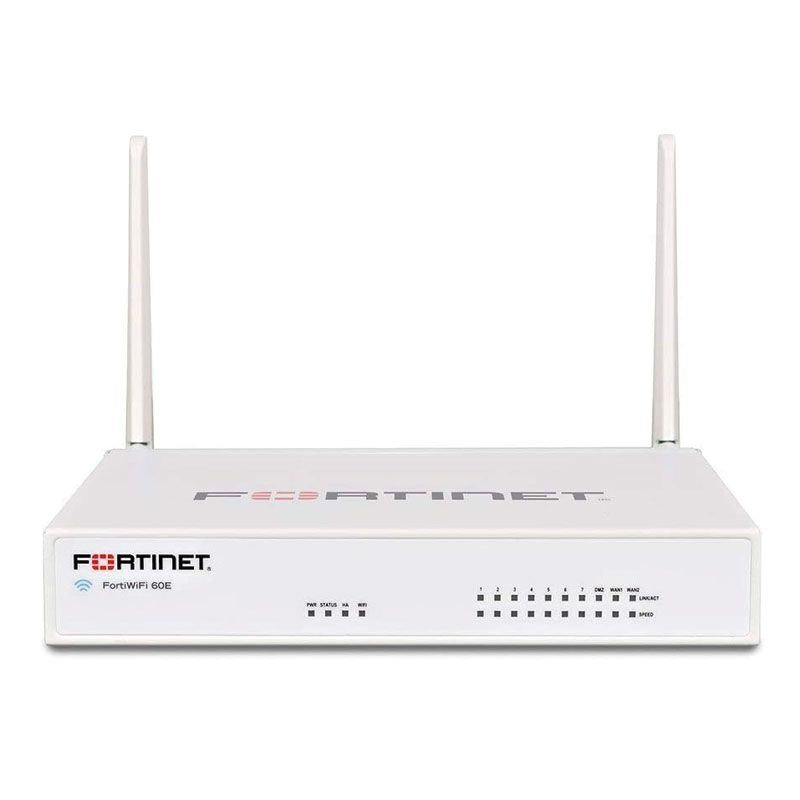

FortiWiFi 60E-DSL Hardware With 24x7 FortiCare & FortiGuard Enterprise Protection (3 Years) Appliances

FortiWiFi 60E-DSL Hardware With 24x7 FortiCare & FortiGuard Enterprise Protection (3 Years)

$3,102.09
Manufacturer:Fortinet
Model:FWF-60E-DSL-A-BDL-811-36
Condition:New
Availability:Out Of Stock

The FortiGate/FortiWiFi 60E series provides an application-centric, scalable and secure SD-WAN solution in a compact fanless desktop form factor for enterprise branch offices and mid-sized businesses. Protects against cyber threats with system-on-a-chip acceleration and industry-leading secure SD-WAN in a simple, affordable, and easy to deploy solution. Fortinet's Security-Driven Networking approach provides tight integration of the network to the new generation of security.

Download PDF datasheet for detailed product information Download PDF datasheet for included services
Dimensions
Form Factor Desktop
Height X Width X Length (inches) 1.7 x 8.5 x 7.1
Height X Width X Length (mm) 42.5 x 215 x 180
Weight 1.9 lbs (0.9 kg)
Hardware Specifications
Console (RJ45) 1
GE RJ45 Internal Ports 7
GE RJ45 WAN / DMZ Ports 1 / 1
Internal Storage -
USB Ports 1
Wireless Interface 802.11 a/b/g/n/ac
Operating environment and certifications
Certifications ICSA Labs
Compliance FCC Part 15 Class B, C-Tick, VCCI, CE, UL/cUL, CB
DSL Standards ANSI T1.413 Issue 2, ETSI ADSL over ISDN (TS 101 388), ITU-T G.dmt (G.992.1) (ADSL) - Annex A, ITU-T G.dmt.bis (G.992.3) (ADSL2) - Annex A, Annex L, Annex M, ITU-T G.dmt.plus (G.992.5) (ADSL2+) - Annex A, Annex , ITU-T VDSL2 (G.993.2) - All profiles 8a, 8b, 8c, 8d, 12a, 12b, 17a_EU32 - Annex A, C (all regions), ITU-T VDSL1 (G.993.1), ITU-T G.993.5, ITU-T G.998.4
Heat Dissipation 52 BTU/h
Humidity 10-90% non-condensing
Maximum Current 115V AC / 0.9A, 230V AC / 0.6A
Noise Level -40 dBA
Operating Altitude Up to 7,400 ft (2,250 m)
Operating Temperature 32-104°F (0-40°C)
Power Consumption (Average / Maximum) 12.6 / 15.2 W
Power Required 100-240V AC, 50-60 Hz
Storage Temperature -31-158°F (-35-70°C)
Total Available PoE Power Budget N/A
System Performance
Application Control Throughput (HTTP 64K) 650 Mbps
CAPWAP Throughput (HTTP 64K) 890 Mbps
Client-to-Gateway IPsec VPN Tunnels 500
Concurrent Sessions (TCP) 1.3 Million
Concurrent SSL-VPN Users (Recommended Maximum, Tunnel Mode) 100
Firewall Policies 5,000
Firewall Throughput (1518 / 512 / 64 Byte UDP Packets) 3 / 3 / 3 Gbps
Firewall Throughput (Packets Per Second) 4.5 Mpps
Gateway-to-Gateway IPsec VPN Tunnels 200
High Availability Configurations Active / Active, Active / Passive, Clustering
IPsec VPN Throughput (512 Byte) 2 Gbps
Maximum Number Of FortiAPs (Total / Tunnel Mode) 30 / 10
Maximum Number Of FortiTokens 100
Maximum Number Of Registered FortiClients 200
Maximum Number Of Switches Supported N.A
New Sessions/Second (TCP) 30,000
SSL Inspection Throughput (IPS, HTTP) 175 Mbps
SSL-VPN Throughput 150 Mbps
Virtual Domains (Default / Maximum) 10 / 10
System Performance - Enterprise Traffic Mix
NGFW Throughput 250 Mbps
Threat Protection Throughput 200 Mbps
System Performance - Optimal Traffic Mix
IPS Throughput 400 Mbps
