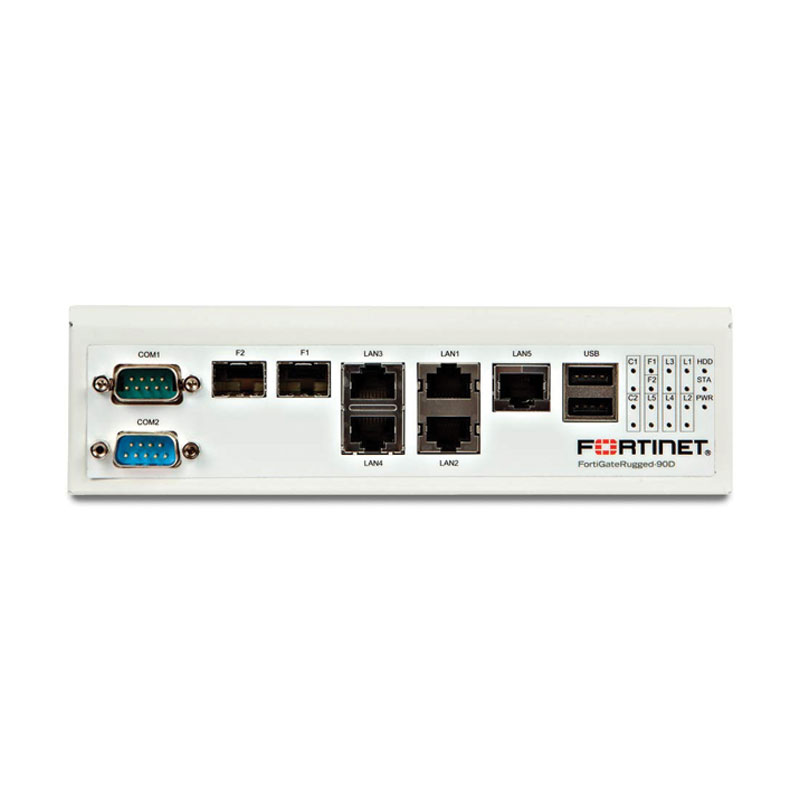

FortiGate Rugged 90D Hardware With 24x7 FortiCare & FortiGuard Enterprise Protection (3 Years) Appliances

FortiGate Rugged 90D Hardware With 24x7 FortiCare & FortiGuard Enterprise Protection (3 Years)

$7,136.10
Manufacturer:Fortinet
Model:FGR-90D-BDL-810-36
Condition:New
Availability:Out Of Stock
Download PDF datasheet for detailed product information Download PDF datasheet for included services While traditional security solutions are designed and intended for the world of offices and corporations, the FortiGate Rugged Series offers industrially-hardened, all-in-one security appliance that delivers specialized threat protection for securing critical industrial and control networks against malicious attacks.
Download PDF datasheet for detailed product information Download PDF datasheet for included services
Dimensions and power
Form Factor Desktop, IP40
Heat Dissipation 167 BTU/h
Height X Width X Length (inches) 2.11 x 7.32 x 6.30
Height X Width X Length (mm) 53.5 x 186 x 160
Maximum Current 12-48V DC/ 4.08-1.02A
Power Consumption (Average / Maximum) 40 W / 49 W
Power Supply Dual input, total 6 pin terminal block (12-48V DC) AC adapter included.
Weight 2.4 lbs (1.08 kg)
Interfaces and modules
DB9 Serial Interface 2
GE RJ45 Bypass Pair 1
GE RJ45 Interfaces 3
GE SFP Slots 2
Included Transceivers None
RJ45 Console Port -
Shared Media Pairs (GE RJ45 / GE SFP) -
USB (Client / Server) 1
Operating environment and certifications
Certifications IEC 61850-3 (EMC) and IEEE 1613 Emission Compliant ICSA Labs
Compliance FCC Part 15 Class A, C-Tick, VCCI, CE, UL/cUL, CB
Humidity 0-95% non-condensing
Operating Altitude Up to 7,400 ft (2,250 m)
Operating Temperature -40-158°F (-40-70°C) **
Storage Temperature -40-185°F (-40-85°C)
System performance and capacity
Client-to-Gateway IPsec VPN Tunnels 1,000
Concurrent Sessions (TCP) 2.5 Million
Concurrent SSL-VPN Users (Recommended Maximum) 200
Firewall Policies 5,000
Firewall Throughput (Packets Per Second) 84 Kbps
Gateway-to-Gateway IPsec VPN Tunnels 200
High Availability Configurations Active-Active, Active-Passive, Clustering
IPS Throughput (HTTP) 1.1 Gbps
IPsec VPN Throughput (512 Byte) 84 Mbps
IPv4 Firewall Throughput (1518 UDP) 2 Gbps
Maximum Number Of FortiAPs (Total / Tunnel) 32 / 16
Maximum Number Of FortiTokens 100
Maximum Number Of Registered FortiClients 200
New Sessions/Sec (TCP) 20,000
SSL-VPN Throughput 115 Mbps
Virtual Domains (Default / Maximum) 10 / 10
