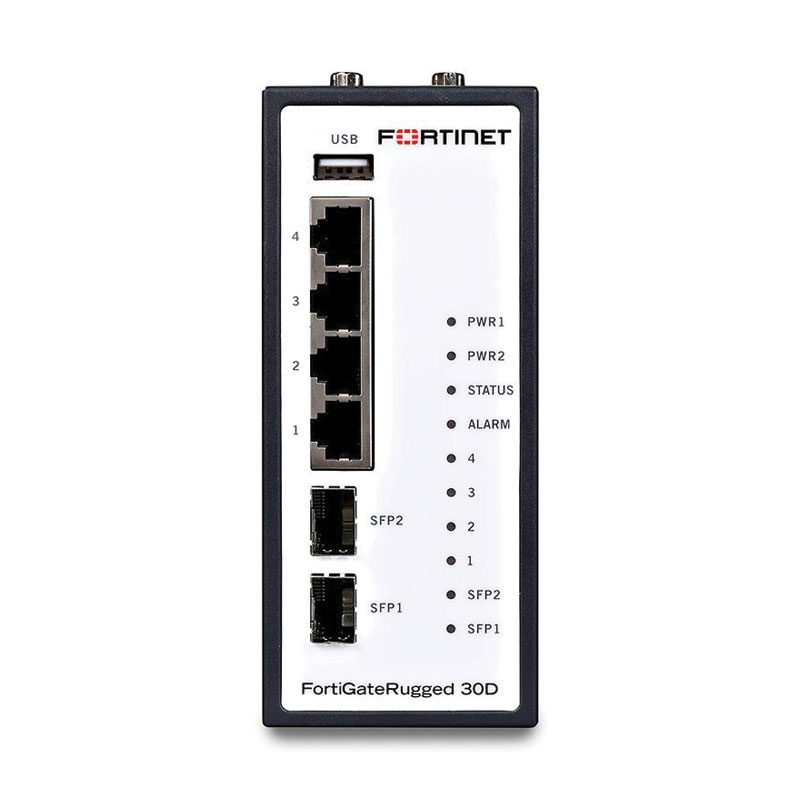

While traditional security solutions are designed and intended for the world of offices and corporations, the FortiGate Rugged Series offers industrially-hardened, all-in-one security appliance that delivers specialized threat protection for securing critical industrial and control networks against malicious attacks.
Download PDF datasheet for detailed product information
Download PDF datasheet for included services
| Dimensions and power |
| Form Factor |
Desktop |
| Heat Dissipation |
54.29 BTU/h |
| Height X Width X Length (inches) |
5.49 x 4.13 x 2.36 |
| Height X Width X Length (mm) |
139.5 x 105 x 60 |
| Maximum Current |
1.19A |
| Power Consumption (Average / Maximum) |
15.55 W / 15.92W |
| Power Supply |
Dual input, total 6 pin terminal block (12-48V DC) AC adapter not included.* |
| Weight |
1.46 lbs (0.668 kg) |
| Interfaces and modules |
| DB9 Serial Interface |
2 |
| GE RJ45 Bypass Pair |
- |
| GE RJ45 Interfaces |
4 |
| GE SFP Slots |
2 |
| Included Transceivers |
None |
| RJ45 Console Port |
- |
| Shared Media Pairs (GE RJ45 / GE SFP) |
- |
| USB (Client / Server) |
1 |
| Operating environment and certifications |
| Certifications |
IEC 61850-3 (EMC) and IEEE 1613 Emission Compliant ICSA Labs |
| Compliance |
FCC Part 15 Class A, C-Tick, CE, UL/cUL, CB |
| Humidity |
5-95% non-condensing |
| Operating Altitude |
Up to 7,400 ft (2,250 m) |
| Operating Temperature |
-40-158°F (-40-70°C) |
| Storage Temperature |
-58-185°F (-50-85°C) |
| System performance and capacity |
| Client-to-Gateway IPsec VPN Tunnels |
250 |
| Concurrent Sessions (TCP) |
750,000 |
| Concurrent SSL-VPN Users (Recommended Maximum) |
80 |
| Firewall Policies |
5,000 |
| Firewall Throughput (Packets Per Second) |
87 Kpps |
| Gateway-to-Gateway IPsec VPN Tunnels |
200 |
| High Availability Configurations |
Active-Active, Active-Passive, Clustering |
| IPS Throughput (HTTP) |
230 Mbps |
| IPsec VPN Throughput (512 Byte) |
45 Mbps |
| IPv4 Firewall Throughput (1518 UDP) |
900 Mbps |
| Maximum Number Of FortiAPs (Total / Tunnel) |
2 / 2 |
| Maximum Number Of FortiTokens |
20 |
| Maximum Number Of Registered FortiClients |
200 |
| New Sessions/Sec (TCP) |
5,000 |
| SSL-VPN Throughput |
25 Mbps |
| Virtual Domains (Default / Maximum) |
5 / 5 |
