FortiGate 301E Hardware With 24x7 FortiCare & FortiGuard Enterprise Protection (1 Year) Appliances

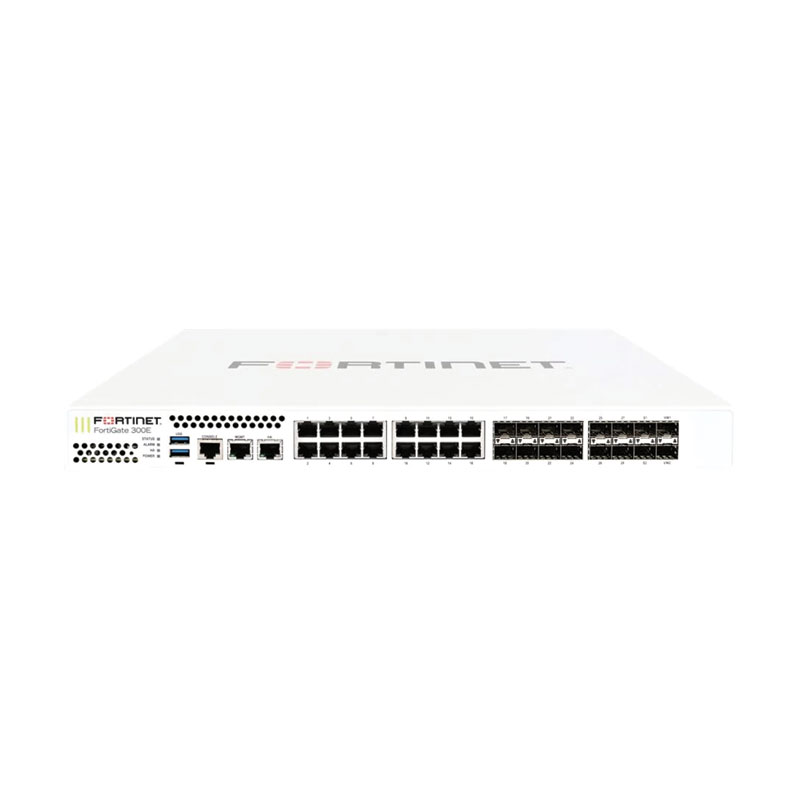

FortiGate 301E Hardware With 24x7 FortiCare & FortiGuard Enterprise Protection (1 Year)

$10,681.86
Manufacturer:Fortinet
Model:FG-301E-BDL-811-12
Condition:New
Availability:Out Of Stock
Download PDF datasheet for detailed product information Download PDF datasheet for included services The FortiGate 300E series delivers next generation firewall capabilities for mid-sized to large enterprises, with the flexibility to be deployed at the campus or enterprise branch. Protects against cyber threats with security processor powered high performance, security efficacy and deep visibility.
Download PDF datasheet for detailed product information Download PDF datasheet for included services
Dimensions & Power
Current (Max) 110V/6A, 220V/6A
Form Factor 1 RU
Heat Dissipation 570 BTU/h
Height X Width X Length 1.75 x 17.0 x 15.0 (44.45 x 432 x 380)
Power Consumption (Avg/Max) 95 W / 180 W
Weight 16.6 lbs (7.6 kg)
Interfaces & Modules
GE RJ45 Interfaces 16
GE RJ45 Management Ports 2
GE SFP Slots 16
Included Transceivers 2x SFP (SX 1 GE)
Local Storage 2 x 240 GB SSD
RJ-45 Console Port 1
USB Ports 2
Operating Environment & Certifications
Certifications ICSA Labs
Compliance FCC Part 15 Class A, C-Tick, VCCI, CE, UL/cUL, CB
Humidity 10% to 90% non-condensing
Operating Temperature 32 - 104 °F (0 - 40 °C)
Storage Temperature -31 - 158 °F (-35 - 70 °C)
System Performance & Capacity
Application Control Throughput (HTTP 64K) 7 Gbps
CAPWAP Throughput (1444 Byte, UDP) 5 Gbps
Client-to-Gateway IPSec VPN Tunnels 50,000
Concurrent Sessions (TCP) 4 Mil
Concurrent SSL-VPN Users (recommended Max) 2,000
Firewall Policies 10,000
Firewall Throughput (Packet Per Second) 30 Mpps
Gateway-to-Gateway IPSec VPN Tunnels 2,000
High Availability Configurations Active-Active, Active-Passive, Clustering
IPSEC VPN Throughput (512 Byte) 20 Gbps
IPv4 Firewall Throughput (1518 / 512 / 64 Byte, UDP) 32 / 32 / 30 Gbps
IPv6 Firewall Throughput (1518 / 512 / 64 Byte, UDP) 32 / 32 / 30 Gbps
Max Number Of FortiAPs (Total / Tunnel) 512 / 256
Max Number Of FortiTokens 1,000
Max Number Of Registered Endpoints 600
New Sessions/Sec (TCP) 300,000
SSL Inspection Throughput (IPS, HTTP) 6.8 Gbps
SSL VPN Throughput 2.5 Gbps
Virtual Domains (Default / Max) 10 / 10
