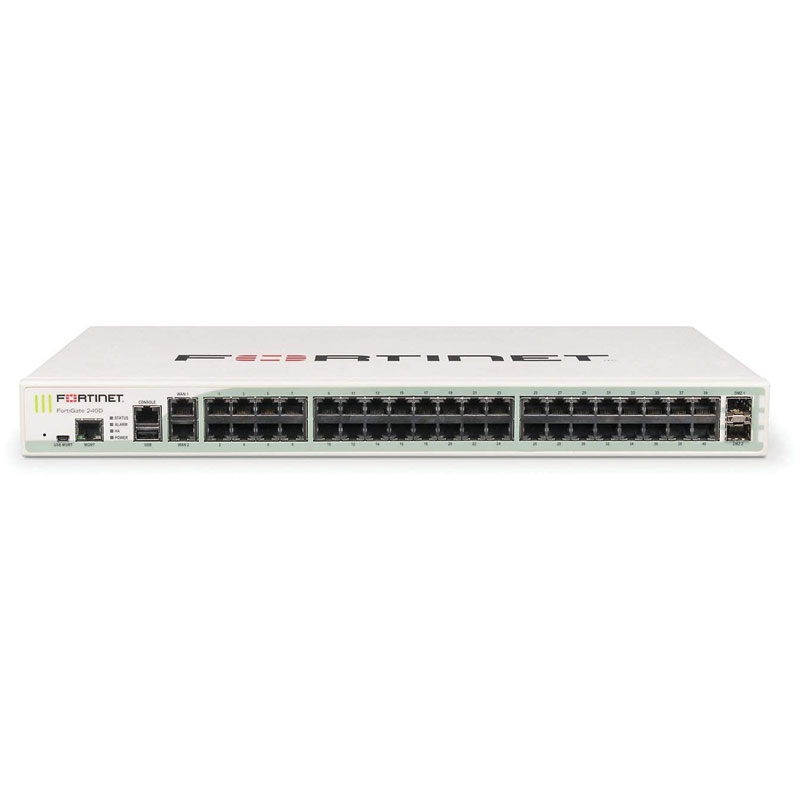

FortiGate 240D-POE Hardware With 24x7 FortiCare & FortiGuard Enterprise Protection (1 Year) Appliances

FortiGate 240D-POE Hardware With 24x7 FortiCare & FortiGuard Enterprise Protection (1 Year)

$5,320.70
Manufacturer:Fortinet
Model:FG-240D-POE-BDL-811-12
Condition:New
Availability:Out Of Stock
The FortiGate-200D series delivers high-speed security and performance for campus perimeter and branch office wired or wireless networks. Purpose-built processors provide up to 4 Gbps firewall throughput, enabling protection of your applications and network without affecting availability or performance.
Download PDF datasheet for detailed product information Download PDF datasheet for included services
Compliance
ICSA Labs Firewall, IPSec, IPS, Antivirus, SSL VPN
Dimensions
Form Factor Rack Mount, 1 RU
Height X Width X Length 1.75 x 17.01 x 11.73 in (44 x 432 x 298 mm)
Weight 10.5 lbs (4.8 kg)
Environmental
Heat Dissipation 1211 BTU / h
Humidity 20 to 90% non-condensing
Max Current 110 V / 7 A, 220 V / 3.5 A
Operating Altitude Up to 7,400 ft (2,250 m)
Operating Temperature / Storage Temperature 32 - 104 °F (0 - 40 °C) / -31 - 158 °F (-35 - 70 °C)
Power 100 - 240 VAC, 50 - 60 Hz
Power Consumption (Avg / Max) 220 / 335 W
Total Available PoE Power Budget 270 W
Hardware Specifications
Console (RJ45) 1
GE RJ45 LAN Interfaces 16
GE RJ45 PoE LAN Interfaces 24
GE RJ45 WAN Interfaces 2
GE SFP DMZ Interfaces 2
Local Storage 64 GB
USB (Client / Server) 1 / 1
System Performance
Antivirus Throughput (Proxy Based / Flow Based) 600 / 1,100 Mbps
Client-to-Gateway IPsec VPN Tunnels 5,000
Concurrent Sessions (TCP) 3.2 Million
Concurrent SSL-VPN Users (Recommended Max) 300
Firewall Policies (Max) 10,000
Firewall Throughput (1518 / 512 / 64 Byte UDP Packets) 4 / 4 / 4 Gbps
Firewall Throughput (Packets Per Second) 6 Mpps
Gateway-to-Gateway IPsec VPN Tunnels 2,000
High Availability Configurations Active / Active, Active / Passive, Clustering
IPS Throughput 2.1 Gbps
IPsec VPN Throughput (512 Byte Packets) 1.3 Gbps
Max Number Of FortiAPs (Total / Tunnel Mode) 128 / 64
Max Number Of FortiTokens 1,000
Max Number Of Registered FortiClients 600
New Sessions/Sec (TCP) 77,000
SSL-VPN Throughput 400 Mbps
Virtual Domains (Default / Max) 10 / 10
