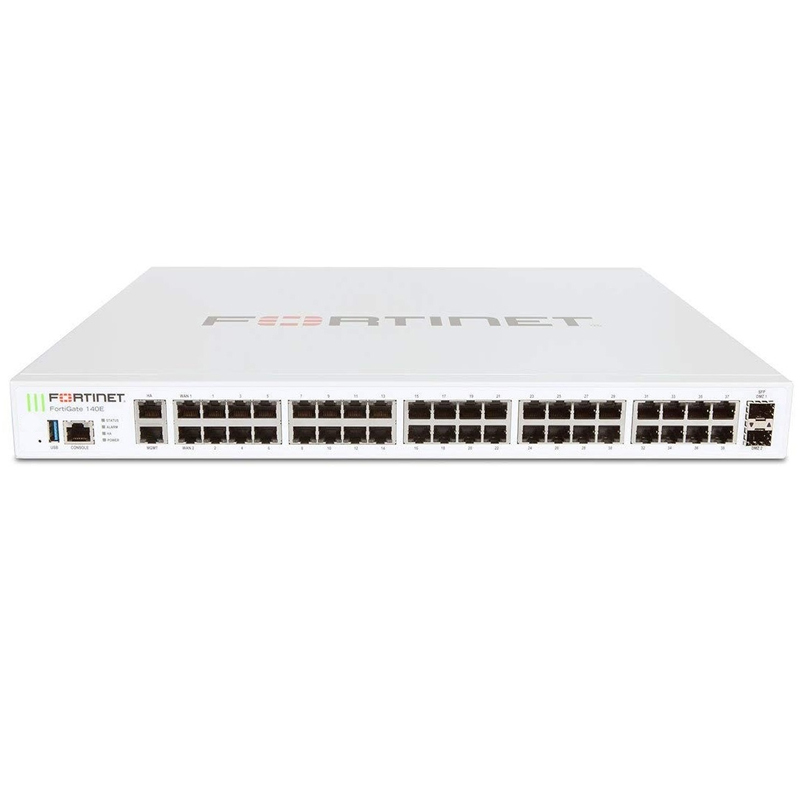

FortiGate 140E-POE Hardware With 24x7 FortiCare & FortiGuard Enterprise Protection (3 Years) Appliances

FortiGate 140E-POE Hardware With 24x7 FortiCare & FortiGuard Enterprise Protection (3 Years)

$8,331.10
Manufacturer:Fortinet
Model:FG-140E-POE-BDL-811-36
Condition:New
Availability:Out Of Stock
Download PDF datasheet for detailed product information Download PDF datasheet for included services The Fortinet Enterprise Firewall Solution delivers end-to-end network security with one platform, one network security operating system and unified policy management with a single pane of glass - for the industry's best protection against the most advanced security threats and targeted attacks
Download PDF datasheet for detailed product information Download PDF datasheet for included services
Dimensions
Form Factor Rack Mount, 1 RU
Height X Width X Length (inches) 1.75 x 17 x 15.5
Height X Width X Length (mm) 44.45 x 432 x 394
Weight 12.4 lbs (5.6 kg)
Environment
Certifications ICSA Labs
Compliance FCC Part 15B, Class A, CE, RCM, VCCI, UL/cUL, CB, BSMI
Heat Dissipation 1706.07 BTU/h
Humidity 10-90% non-condensing
Maximum Current 100V / 5A
Noise Level 57 dBA
Operating Altitude Up to 7,400 ft (2,250 m
Operating Temperature 32-104°F (0-40°C)
Power Consumption (Average / Maximum) 477.1 W / 500.0 W
Power Required 100-240V AC, 60-50 Hz
Storage Temperature -31-158°F (-35-70°C)
Total Available PoE Power Budget 400 W
Hardware Specifications
Console Port 1
GE RJ45 Management/HA/DMZ Ports 1 / 1 / -
GE RJ45 Or SFP Shared Ports -
GE RJ45 PoE/+ Ports 24
GE RJ45 Ports 14
GE RJ45 WAN Ports 2
GE SFP Slots 2
Internal Storage -
USB Port 1
System Performance
Application Control Throughput (HTTP 64K) 1 Gbps
CAPWAP Throughput (1444 Byte, UDP) 1.5 Gbps
Client-to-Gateway IPsec VPN Tunnels 10,000
Concurrent Sessions (TCP) 2 Million
Concurrent SSL-VPN Users (Recommended Maximum, Tunnel Mode) 300
Firewall Latency (64 byte UDP packets) 3 ??s
Firewall Policies 10,000
Firewall Throughput (Packets Per Second) 6.6 Mpps
Gateway-to-Gateway IPsec VPN Tunnels 2,000
High Availability Configurations Active / Active, Active / Passive, Clustering
IPsec VPN Throughput (512 byte) 1 4 Gbps
Maximum Number Of FortiAPs (Total / Tunnel Mode) 64 / 32
Maximum Number Of FortiTokens 1,000
Maximum Number Of Registered FortiClients 600
Maximum Number Of Switches Supported 24
New Sessions/Second (TCP) 30,000
SSL Inspection Throughput (IPS, HTTP) 190 Mbps
SSL-VPN Throughput 250 Mbps
Virtual Domains (Default / Maximum) 10-Oct
System Performance - Enterprise Traffic Mix
NGFW Throughput 360
Threat Protection Throughput 250
System Performance - Optimal Traffic Mix
IPS Throughput 500
