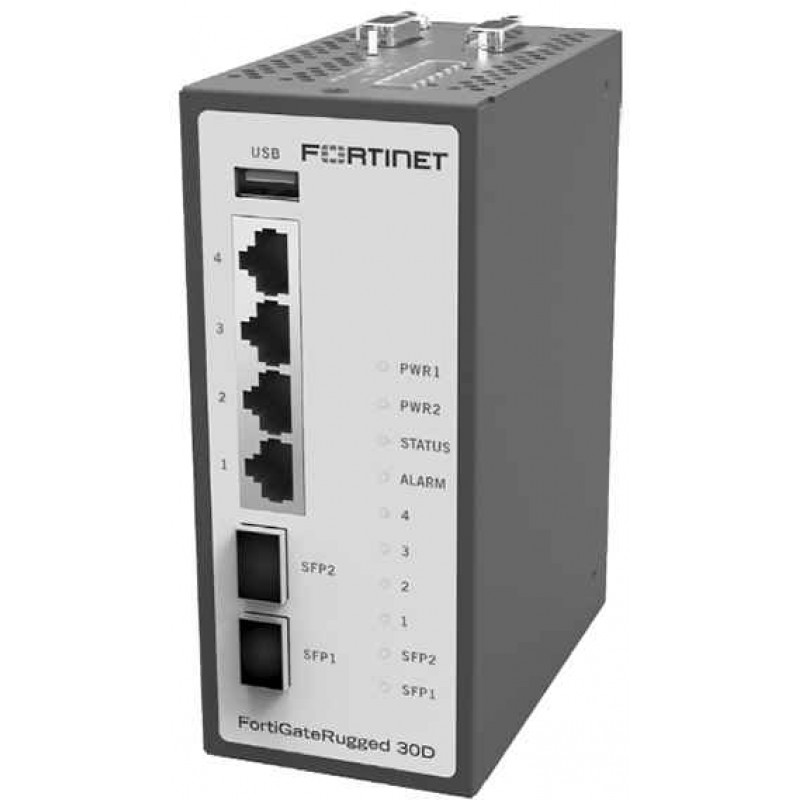

FGR-30D Hardware plus 24x7 FortiCare and FortiGuard UTM Protection (3 Years) Appliances

FGR-30D Hardware plus 24x7 FortiCare and FortiGuard UTM Protection (3 Years)

Availability:Out Of Stock
While traditional security solutions are designed and intended for the world of offices and corporations, the FortiGate Rugged Series offers industrially-hardened, all-in-one security appliance that delivers specialized threat protection for securing critical industrial and control networks against malicious attacks.
Download PDF datasheet for detailed product information Download PDF datasheet for included services
Dimensions and power
Form Factor Desktop
Heat Dissipation 54.29 BTU/h
Height X Width X Length (inches) 5.49 x 4.13 x 2.36
Height X Width X Length (mm) 139.5 x 105 x 60
Maximum Current 1.19A
Power Consumption (Average / Maximum) 15.55 W / 15.92W
Power Supply Dual input, total 6 pin terminal block (12-48V DC) AC adapter not included.*
Weight 1.46 lbs (0.668 kg)
Interfaces and modules
DB9 Serial Interface 2
GE RJ45 Bypass Pair -
GE RJ45 Interfaces 4
GE SFP Slots 2
Included Transceivers None
RJ45 Console Port -
Shared Media Pairs (GE RJ45 / GE SFP) -
USB (Client / Server) 1
Operating environment and certifications
Certifications IEC 61850-3 (EMC) and IEEE 1613 Emission Compliant ICSA Labs
Compliance FCC Part 15 Class A, C-Tick, CE, UL/cUL, CB
Humidity 5-95% non-condensing
Operating Altitude Up to 7,400 ft (2,250 m)
Operating Temperature -40-158°F (-40-70°C)
Storage Temperature -58-185°F (-50-85°C)
System performance and capacity
Client-to-Gateway IPsec VPN Tunnels 250
Concurrent Sessions (TCP) 750,000
Concurrent SSL-VPN Users (Recommended Maximum) 80
Firewall Policies 5,000
Firewall Throughput (Packets Per Second) 87 Kpps
Gateway-to-Gateway IPsec VPN Tunnels 200
High Availability Configurations Active-Active, Active-Passive, Clustering
IPS Throughput (HTTP) 230 Mbps
IPsec VPN Throughput (512 Byte) 45 Mbps
IPv4 Firewall Throughput (1518 UDP) 900 Mbps
Maximum Number Of FortiAPs (Total / Tunnel) 2 / 2
Maximum Number Of FortiTokens 20
Maximum Number Of Registered FortiClients 200
New Sessions/Sec (TCP) 5,000
SSL-VPN Throughput 25 Mbps
Virtual Domains (Default / Maximum) 5 / 5
