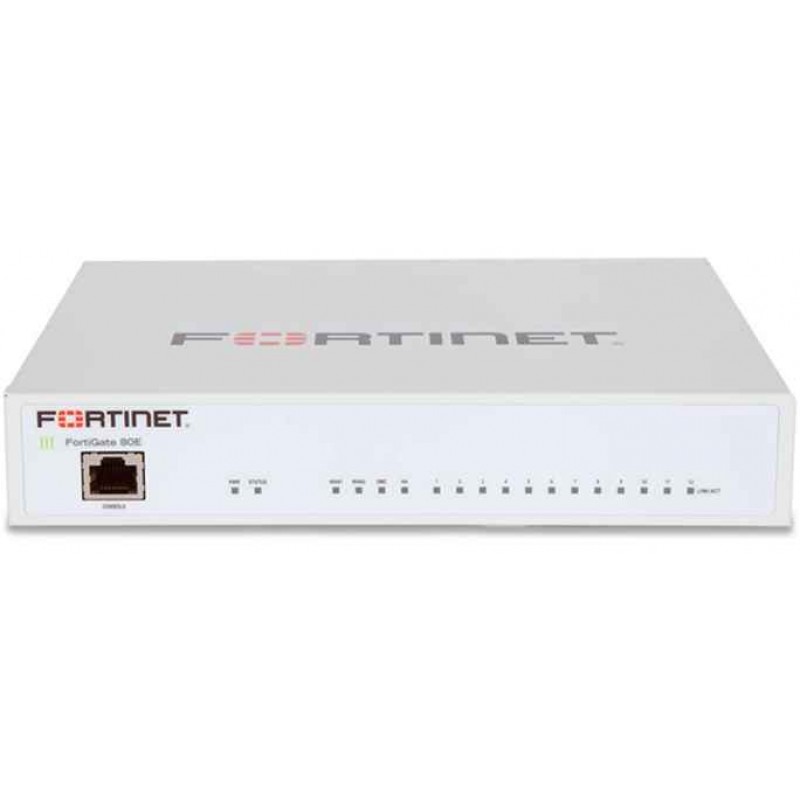

FG-81E Hardware Appliances

FG-81E Hardware

$1,129.92
Manufacturer:Fortinet
Model:FG-81E
Condition:New
Availability:Out Of Stock

Available Options

Download PDF datasheet for detailed product information Download PDF datasheet for included services The Fortinet Enterprise Firewall Solution delivers end-to-end network security with one platform, one network security operating system and unified policy management with a single pane of glass - for the industry's best protection against the most advanced security threats and targeted attacks.
Download PDF datasheet for detailed product information Download PDF datasheet for included services
Compliance
Safety FCC Part 15B, Class B, CE, RCM, VCCI, UL/cUL, CB, BSMI
Dimensions
Form Factor Desktop
Height X Width X Length (inches) 1.65 x 8.5 x 7
Height X Width X Length (mm) 42 x 216 x 178
Weight 2.65 lbs (1.2 kg)
Environment
Heat Dissipation 467.5 BTU/h
Humidity 20-90% non-condensing
Maximum Current 115V AC / 1.2A, 230V AC / 0.6A
Operating Altitude Up to 16,404 ft (5,000 m)
Operating Temperature 32-104°F (0-40°C)
Power Consumption (Average / Maximum) 20 / 137 W
Power Required 100-240V AC, 50-60 Hz
Storage Temperature -31-158°F (-35-70°C)
Hardware Specifications
Console (RJ45) 1
GE RJ45 DMZ/HA Ports 2
GE RJ45 PoE/+ Ports 12
GE RJ45/SFP Shared Media Pairs 2
Internal Storage 128 GB
USB Ports 1
System Performance
Application Control Throughput 800 Mbps
CAPWAP Throughput 2.2 Gbps
Client-to-Gateway IPsec VPN Tunnels 1,000
Concurrent Sessions (TCP) 1.3 Million
Concurrent SSL-VPN Users (Recommended Maximum) 200
Firewall Policies 5,000
Firewall Throughput (1518 / 512 / 64 Byte UDP Packets) 4 / 4 / 4 Gbps
Firewall Throughput (Packets Per Second) 6 Mpps
Gateway-to-Gateway IPsec VPN Tunnels 200
High Availability Configurations Active / Active, Active / Passive, Clustering
IPS Throughput (HTTP / Enterprise Mix) 1.5 Gbps / 450 Mbps
IPsec VPN Throughput (512 Byte Packets) 2.5 Gbps
Maximum Number Of FortiAPs (Total / Tunnel Mode) 32 / 16
Maximum Number Of FortiTokens 100
Maximum Number Of Registered FortiClients 200
New Sessions/Second (TCP) 30,000
NGFW Throughput 360 Mbps
SSL Inspection Throughput 350 Mbps
SSL-VPN Throughput 200 Mbps
Threat Protection Throughput 250 Mbps
Virtual Domains (Default / Maximum) 10 / 10
