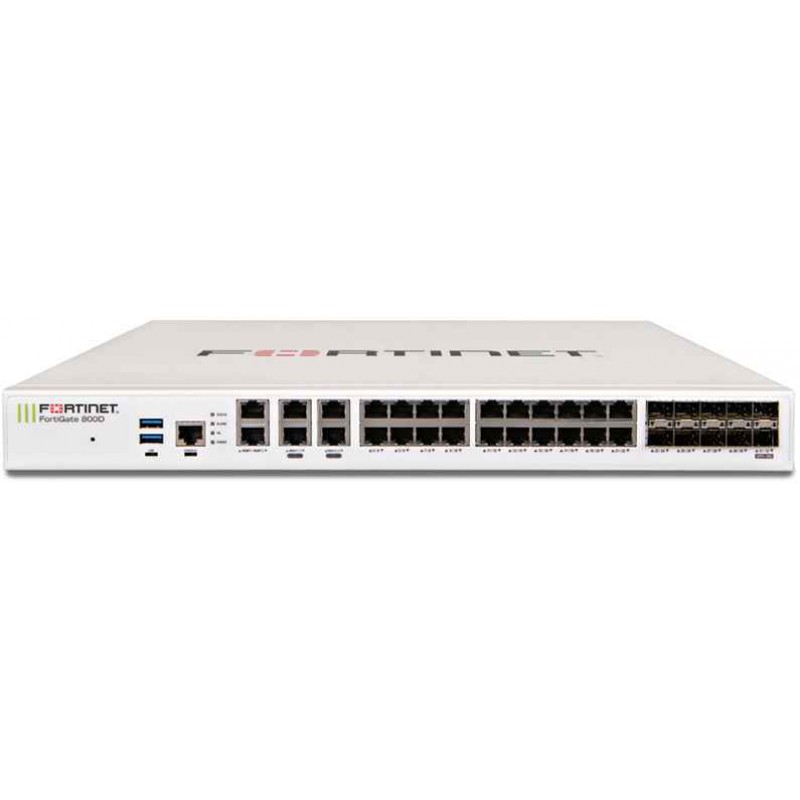

FG-800D Hardware
$10,429.85
Manufacturer:Fortinet
Model:FG-800D
Condition:New
Availability:Out Of Stock
Condition:New
Availability:Out Of Stock
- Networking
- Network Security
- Fortinet
- FortiGate
- FortiGate 800 Series
- FortiGate-800D
- Appliances
- FortiGate 800D Hardware Appliance
This breakthrough threat prevention performance allows organizations to run NSS Labs Recommended intrusion prevention and application control and VB100 certified antimalware capabilities for deeper inspection. Rich console views and reports together with a flexible policy engine provide the visibility and control to empower employees yet secure your enterprise.
Download PDF datasheet for detailed product information
Download PDF datasheet for included services
Dimensions and power | |
AC Power Supply | 100-240V AC, 60-50 Hz |
Current (Maximum) | 110V/7A, 220V/3.5A |
Form Factor | 1 RU |
Heat Dissipation | 636 BTU/h |
Height X Width X Length (inches) | 1.77 x 17.0 x 16.4 |
Height X Width X Length (mm) | 45 x 432 x 416 |
Power Consumption (Average / Maximum) | 128 W / 187 W |
Redundant Power Supplies | (Hot Swappable) optional |
Wall Mountable | No |
Weight | 19.0 lbs (8.6 kg) |
Interfaces and modules | |
Accelerated GE RJ45 Bypass Interfaces | 4 |
Console Port | 1 |
GE RJ45 Management / HA Ports | 2 |
Hardware Accelerated GE RJ45 Ports | 20 |
Hardware Accelerated GE SFP Slots | 8 |
Included Transceivers | 2x SFP (SX 1 GE) |
Onboard Storage | 240 GB |
USB Ports (Client / Server) | 1 / 2 |
Operating environment and certifications | |
Certifications | ICSA Labs |
Compliance | FCC Part 15 Class A, C-Tick, VCCI, CE, UL/cUL, CB |
Humidity | 20-90% non-condensing |
Operating Altitude | Up to 7,400 ft (2,250 m) |
Operating Temperature | 32-104°F (0-40°C) |
Storage Temperature | -31-158°F (-35-70°C) |
System performance and capacity | |
Application Control Throughput | 6 Gbps |
CAPWAP Throughput | 5.5 Gbps |
Client-to-Gateway IPsec VPN Tunnels | 10,000 |
Concurrent Sessions (TCP) | 5 Million |
Concurrent SSL-VPN Users (Recommended Maximum) | 5,000 |
Firewall Policies | 10,000 |
Firewall Throughput (Packet Per Second) | 33 Mpps |
Gateway-to-Gateway IPsec VPN Tunnels | 2,000 |
High Availability Configurations | Active-Active, Active-Passive, Clustering |
IPS Throughput (HTTP / Enterprise Mix) | 8 / 4.2 Gbps |
IPsec VPN Throughput (512 Byte) | 20 Gbps |
IPv4 Firewall Throughput (1518 / 512 / 64 Byte, UDP) | 36 / 36 / 22 Gbps |
IPv6 Firewall Throughput (1518 / 512 / 86 Byte, UDP) | 36 / 36 / 22 Gbps |
Maximum Number Of FortiAPs (Total / Tunnel) | 1024 / 512 |
Maximum Number Of FortiTokens | 1,000 |
Maximum Number Of Registered Endpoints | 2,000 |
New Sessions/Second (TCP) | 280,000 |
NGFW Throughput | 3.5 Gbps |
SSL Inspection Throughput | 4 Gbps |
SSL-VPN Throughput | 2.2 Gbps |
Threat Protection Throughput | 2.4 Gbps |
Virtual Domains (Default / Maximum) | 10 / 10 |
