FG-500E Hardware plus 24x7 FortiCare and FortiGuard UTM Protection (1 Year) Appliances

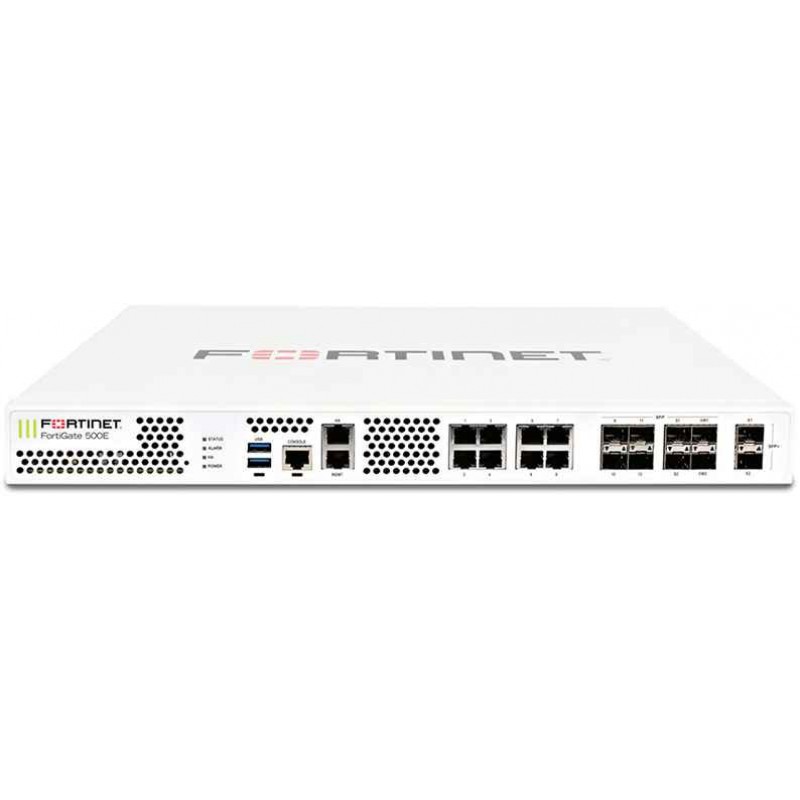

FG-500E Hardware plus 24x7 FortiCare and FortiGuard UTM Protection (1 Year)

$10,462.36
Manufacturer:Fortinet
Model:FG-500E-BDL-950-12
Condition:New
Availability:Out Of Stock
Download PDF datasheet for detailed product information Download PDF datasheet for included services The FortiGate 500E delivers next generation firewall capabilities for mid-sized to large enterprises, with the flexibility to be deployed at the campus or enterprise branch. Protects against cyber threats with security processor powered high performance, security efficacy and deep visibility.
Download PDF datasheet for detailed product information Download PDF datasheet for included services
Dimensions
Current (Maximum) 6A
Form Factor Rack Mount, 1 RU
Heat Dissipation 613 BTU/h
Height X Width X Length (inches) 1.77 x 17.0 x 15.0
Height X Width X Length (mm) 45 x 432 x 380
Power Consumption (Average / Maximum) 100 W / 188 W
Power Source 100-240V 60-50Hz
Weight 16.1 lbs (7.3 kg)
Environment
Certifications ICSA Labs
Compliance FCC Part 15 Class A, C-Tick, VCCI, CE, UL/cUL, CB
Humidity 10-90% non-condensing
Noise Level 43 dBA
Operating Altitude Up to 7,400 ft (2,250 m)
Operating Temperature 32-104°F (0-40°C)
Storage Temperature -31-158°F (-35-70°C)
Hardware Specifications
10 GE SFP+ Slots 2
GE RJ45 Interfaces 8
GE RJ45 Management Ports 2
GE SFP Slots 8
Included Transceivers 2x SFP (SX 1 GE)
Local Storage NL
RJ45 Console Port 1
USB Ports 2
System Performance - Enterprise Traffic Mix
NGFW Throughput 5 Gbps
Threat Protection Throughput 4.7 Gbps
System Performance - Optimal Traffic Mix
IPS Throughput 5.2 Gbps
System performance and capacity
Application Control Throughput (HTTP 64K) 14 Gbps
CAPWAP Throughput (1444 Byte, UDP) 18 Gbps
Client-to-Gateway IPsec VPN Tunnels 50,000
Concurrent Sessions (TCP) 8 Million
Concurrent SSL-VPN Users (Recommended Maximum, Tunnel Mode) 500
Firewall Policies 10,000
Firewall Throughput (1518 / 512 / 64 Byte UDP Packets) 36 / 36 / 32 Gbps
Firewall Throughput (Packets Per Second) 33 Mpps
Gateway-to-Gateway IPsec VPN Tunnels 2,000
High Availability Configurations Active-Active, Active-Passive, Clustering
IPsec VPN Throughput (512 Byte) 20 Gbps
IPv4 Firewall Throughput (1518 / 512 / 64 Byte, UDP) 36 / 36 / 32 Gbps
Maximum Number Of FortiAPs (Total / Tunnel) 512 / 256
Maximum Number Of FortiTokens 1,000
Maximum Number Of Registered Endpoints 600
Maximum Number Of Switches Supported NA
New Sessions/Second (TCP) 300,000
SSL Inspection Throughput 6.8 Gbps
SSL-VPN Throughput 5 Gbps
Virtual Domains (Default / Maximum) 10 / 10
