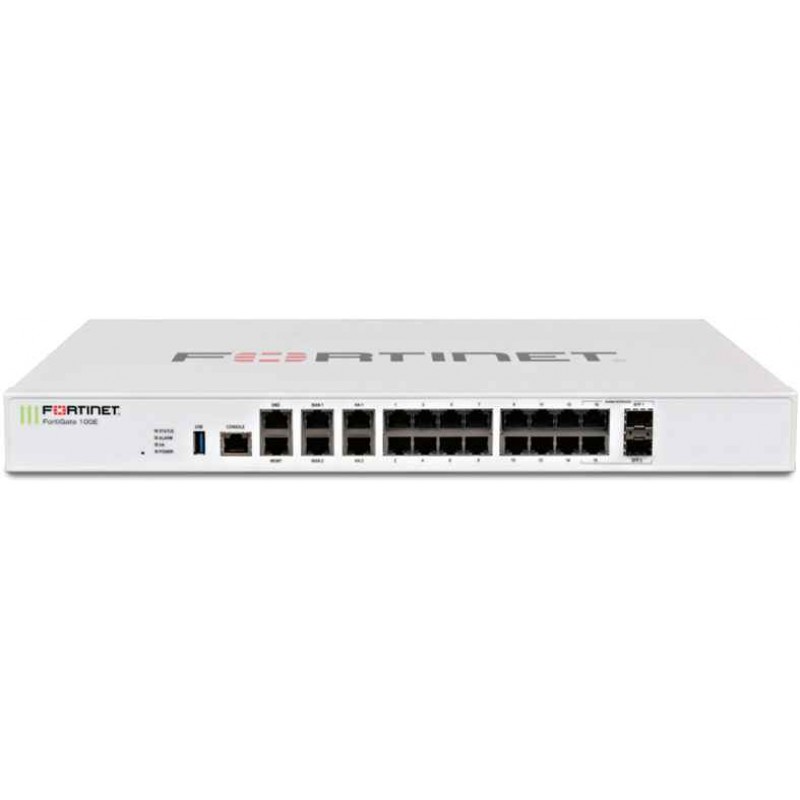

The Fortinet Enterprise Firewall Solution delivers end-to-end network security with one platform, one network security operating system and unified policy management with a single pane of glass - for the industry's best protection against the most advanced security threats and targeted attacks
Download PDF datasheet for detailed product information
Download PDF datasheet for included services
| Dimensions |
| Form Factor |
Rack Mount, 1 RU |
| Height X Width X Length (inches) |
1.75 x 17 x 15.5 |
| Height X Width X Length (mm) |
44.45 x 432 x 394 |
| Weight |
12.4 lbs (5.6 kg) |
| Environment |
| Certifications |
ICSA Labs |
| Compliance |
FCC Part 15B, Class A, CE, RCM, VCCI, UL/cUL, CB, BSMI |
| Heat Dissipation |
136.48 BTU/h |
| Humidity |
10-90% non-condensing |
| Maximum Current |
100V / 0.4A |
| Noise Level |
40.4 dBA |
| Operating Altitude |
Up to 7,400 ft (2,250 m |
| Operating Temperature |
32-104°F (0-40°C) |
| Power Consumption (Average / Maximum) |
34.4 W / 40.0 W |
| Power Required |
100-240V AC, 60-50 Hz |
| Storage Temperature |
-31-158°F (-35-70°C) |
| Total Available PoE Power Budget |
- |
| Hardware Specifications |
| Console Port |
1 |
| GE RJ45 Management/HA/DMZ Ports |
1 / 1 / - |
| GE RJ45 Or SFP Shared Ports |
- |
| GE RJ45 PoE/+ Ports |
- |
| GE RJ45 Ports |
38 |
| GE RJ45 WAN Ports |
2 |
| GE SFP Slots |
2 |
| Internal Storage |
- |
| USB Port |
1 |
| System Performance |
| Application Control Throughput (HTTP 64K) |
1 Gbps |
| CAPWAP Throughput (1444 Byte, UDP) |
1.5 Gbps |
| Client-to-Gateway |
IPsec VPN Tunnels 10,000 |
| Concurrent Sessions |
(TCP) 2 Million |
| Concurrent SSL-VPN Users (Recommended Maximum, Tunnel Mode) |
300 |
| Firewall Latency |
(64 byte UDP packets) 3 ??s |
| Firewall Policies |
10,000 |
| Firewall Throughput |
(Packets Per Second) 6.6 Mpps |
| Gateway-to-Gateway |
IPsec VPN Tunnels 2,000 |
| High Availability Configurations |
Active / Active, Active / Passive, Clustering |
| IPsec VPN Throughput |
(512 byte) 1 4 Gbps |
| Maximum Number Of FortiAPs (Total / Tunnel Mode) |
64 / 32 |
| Maximum Number Of FortiTokens |
1,000 |
| Maximum Number Of Registered FortiClients |
600 |
| Maximum Number Of Switches Supported |
24 |
| New Sessions/Second |
(TCP) 30,000 |
| SSL Inspection Throughput (IPS, HTTP) |
190 Mbps |
| SSL-VPN Throughput |
250 Mbps |
| Virtual Domains (Default / Maximum) |
10-Oct |
| System Performance - Enterprise Traffic Mix |
| NGFW Throughput |
360 |
| Threat Protection Throughput |
250 |
| System Performance - Optimal Traffic Mix |
| IPS Throughput |
500 |
