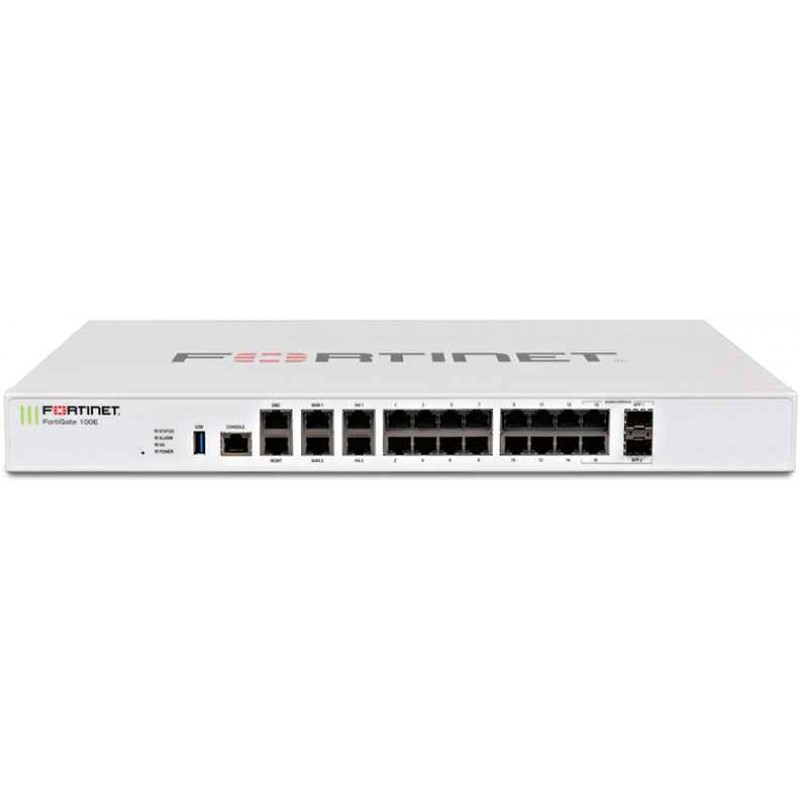

FG-101E Hardware Appliances

FG-101E Hardware

$2,640.00
Manufacturer:Fortinet
Model:FG-101E
Condition:New
Availability:Out Of Stock

Available Options

The Fortinet Enterprise Firewall Solution delivers end-to-end network security with one platform, one network security operating system and unified policy management with a single pane of glass - for the industry's best protection against the most advanced security threats and targeted attacks.
Certification
ICSA Labs Firewall, IPsec, IPS, Antivirus, SSL-VPN; IPv6
Compliance
Safety FCC Part 15B, Class A, CE, RCM, VCCI, UL/cUL, CB, BSMI
Dimensions
Form Factor Rack Mount, 1 RU
Height X Width X Length (inches) 1.73 x 17.00 x 10.00
Height X Width X Length (mm) 44 x 432 x 254
Weight 7.28 lbs (3.3 kg)
Environment
Heat Dissipation 93.8 BTU/h
Humidity 20-90% non-condensing
Maximum Current 100V / 1A, 240V / 0.5A
Operating Altitude Up to 7,400 ft (2,250 m)
Operating Temperature 32-104°F (0-40°C)
Power Consumption (Average / Maximum) 24.8 W / 27.5 W
Power Required 100-240V AC, 60-50 Hz
Storage Temperature -31-158°F (-35-70°C)
Hardware Specifications
Console (RJ45) 1
GE RJ45 HA Ports 2
GE RJ45 Management/DMZ Ports 1 / 1
GE RJ45 Or SFP Shared Ports 2
GE RJ45 Ports 14
GE RJ45 WAN Ports 2
Internal Storage 480 GB
USB Ports 1
System Performance
Client-to-Gateway IPsec VPN Tunnels 5,000
Concurrent Sessions (TCP) 2 Million
Concurrent SSL-VPN Users (Recommended Maximum) 300
Firewall Policies 10,000
Firewall Throughput (1518 / 512 / 64 Byte UDP Packets) 7.4 / 7.4 / 4.4 Gbps
Firewall Throughput (Packets Per Second) 6.6 Mpps
Gateway-to-Gateway IPsec VPN Tunnels 2,000
High Availability Configurations Active / Active, Active / Passive, Clustering
IPsec VPN Throughput (512 Byte Packets) 4 Gbps
Maximum Number Of FortiAPs (Total / Tunnel Mode) 64 / 32
Maximum Number Of FortiTokens 1,000
Maximum Number Of Registered FortiClients 600
New Sessions/Second (TCP) 30,000
SSL-VPN Throughput 250 Mbps
Virtual Domains (Default / Maximum) 10 / 10
