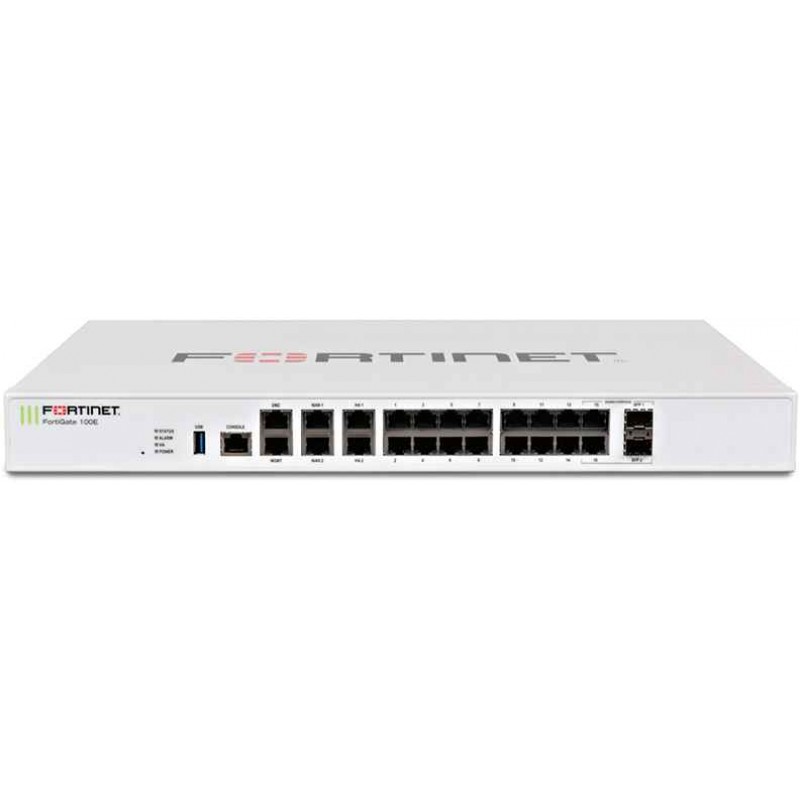

FG-100EF Hardware plus 24x7 FortiCare and FortiGuard UTM Protection (1 Year) Appliances

FG-100EF Hardware plus 24x7 FortiCare and FortiGuard UTM Protection (1 Year)

Availability:Out Of Stock
The Fortinet Enterprise Firewall Solution delivers end-to-end network security with one platform, one network security operating system and unified policy management with a single pane of glass - for the industry's best protection against the most advanced security threats and targeted attacks.
Download PDF datasheet for detailed product information Download PDF datasheet for included services
ICSA Labs Firewall, IPsec, IPS, Antivirus, SSL-VPN; IPv6
Safety FCC Part 15B, Class A, CE, RCM, VCCI, UL/cUL, CB, BSMI
Form Factor Rack Mount, 1 RU
Height X Width X Length (inches) 1.73 x 17.00 x 10.00
Height X Width X Length (mm) 44 x 432 x 254
Weight 7.28 lbs (3.3 kg)
Heat Dissipation 87.0 BTU/h
Humidity 20-90% non-condensing
Maximum Current 100V / 1A, 240V / 0.5A
Operating Altitude Up to 7,400 ft (2,250 m)
Operating Temperature 32-104°F (0-40°C)
Power Consumption (Average / Maximum) 23.0 W / 25.5 W
Power Required 100-240V AC, 60-50 Hz
Storage Temperature -31-158°F (-35-70°C)
Hardware Specifications
Console (RJ45) 1
GE RJ45 HA Ports 2
GE RJ45 Management/DMZ Ports 1 / 1
GE RJ45 Or SFP Shared Ports 2
GE RJ45 Ports 14
GE RJ45 WAN Ports 2
Internal Storage -
USB Ports 1
System Performance
Client-to-Gateway IPsec VPN Tunnels 5,000
Concurrent Sessions (TCP) 2 Million
Concurrent SSL-VPN Users (Recommended Maximum) 300
Firewall Policies 10,000
Firewall Throughput (1518 / 512 / 64 Byte UDP Packets) 7.4 / 7.4 / 4.4 Gbps
Firewall Throughput (Packets Per Second) 6.6 Mpps
Gateway-to-Gateway IPsec VPN Tunnels 2,000
High Availability Configurations Active / Active, Active / Passive, Clustering
IPsec VPN Throughput (512 Byte Packets) 4 Gbps
Maximum Number Of FortiAPs (Total / Tunnel Mode) 64 / 32
Maximum Number Of FortiTokens 1,000
Maximum Number Of Registered FortiClients 600
New Sessions/Second (TCP) 30,000
SSL-VPN Throughput 250 Mbps
Virtual Domains (Default / Maximum) 10 / 10
