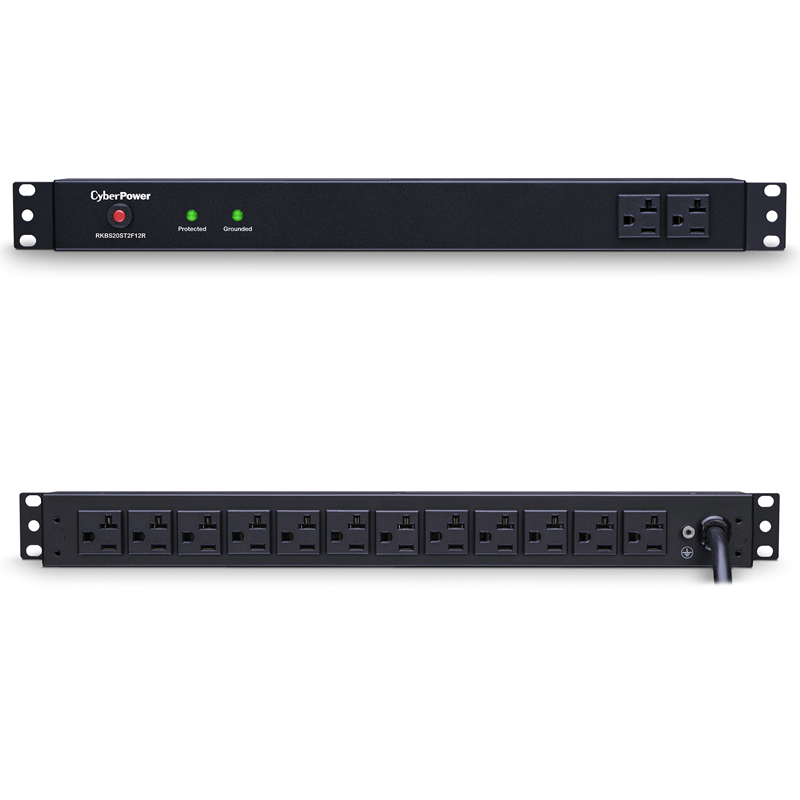

Engineered for the most demanding applications, the professional-grade Rackbar Surge Protector RKBS20ST2F12R from CyberPower safeguards systems and networking equipment by absorbing spikes in energy caused by storms and electrical power surges. Designed for network environments, the 20-Amp RKBS20ST2F12R also performs superbly for home office use, providing 1800 joules of protection, 20-Amp electrical capacity with circuit breaker, and 14 surge-protected outlets (2 front, 12 rear). Industrial-grade metal housing keeps this Rackbar performing flawlessly. Two sets of mounting brackets provide flexible installation options: 1U rackmount (19 in.); 0U vertical rackmount and under-counter configurations).
| Certifications |
| Environmental |
RoHS Compliant |
| Safety |
UL1363.UL1449.CSA C22.2 |
| Environmental |
| Maximum Operating Elevation |
10,000 ft (3,000 m) |
| Maximum Storage Elevation |
50,000 ft (15,000 m) |
| Operating Humidity |
0 |
| Operating Temperature |
32 |
| Storage Temperature |
5 |
| Input |
| Cord Length |
15 ft |
| Frequency |
50/60 Hz |
| Maximum Input Current |
20A |
| Plug Style |
Straight |
| Plug Type |
NEMA L5-20P |
| Voltage |
120 V |
| Physical |
| Adjustable Mounting Brackets |
2 sets (L-short, L-long) |
| Cord Retention Tray/Cord Organizers |
Yes |
| External Site Ground Pin |
Yes |
| Form Factors Supported |
1U rackmount. 0U vertical rackmount undercounter installation supported |
| Material Of Construction |
Metal |
| Rack Size |
1U |
| Style |
Rackmount. Vertical Rackmount Under-Counter |
| Weight (lbs) |
4.90 lbs |
| Surge Protection & Filtering |
| Attenuation |
Up to 50 dB |
| Clamping Voltage |
400 V (N-H, H-G )500 V (N-G) |
| EMI/RFI Filtration |
Yes |
| Maximum Surge Current |
90,000 amps |
| Maximum Surge Voltage |
6,000 volts |
| Protection Modes |
N-H, N-G, and H-G |
| Response Time |
1 nanosecond |
| Surge Suppression |
1,800 joules |
| Warranty |
| CEG Amount |
150000 |
| Connected Equipment Guarantee |
Lifetime |
| Product Warranty |
Limited Lifetime |
