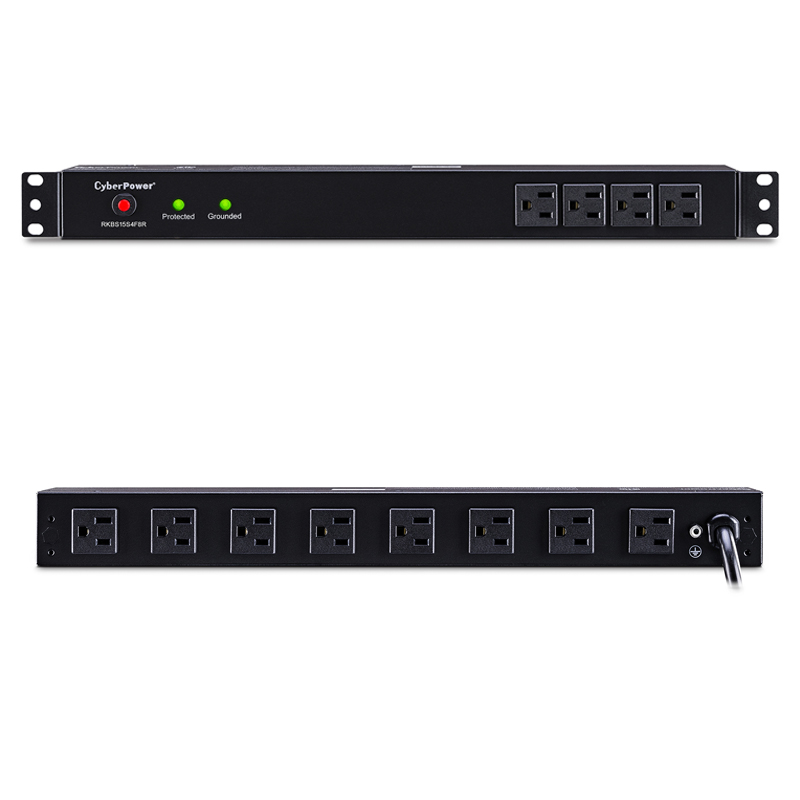

The CyberPower 12-outlet (4 front and 8 rear) rack mounted Rackbar Surge Protector (RKBS15S4F8R) provides 120V 15A output and a surge suppression rating of 3,600 joules. It distributes power to 12 NEMA 5-15R receptacles from a single NEMA 5-15P plug.
Designed for datacenters and other electrically demanding applications, this unit has a rugged, industrial-grade metal housing and a 15-foot AC power cord. It can be mounted either horizontally or vertically, includes a cord retention tray and is ETL/RoHS certified.
A Lifetime Warranty and $150,000 Connected Equipment Guarantee ensures that this Rackbar Surge Protector has passed our highest quality standards in design, assembly, material and workmanship.
Typical Applications
- Servers
- Network Devices
- Telecom Equipment
Features
- (4) Front NEMA 5-15R Receptacles
- (8) Rear NEMA 5-15R Receptacles
- 120V AC - 15A Electrical Capacity
- 1U Rack Mount Design
- Durable Metal Housing
- 15 ft. Power Cord
- Lifetime Warranty
| Certifications |
| Environmental |
RoHS Compliant |
| Safety |
UL1363.UL1449.CSA C22.2 |
| Environmental |
| Maximum Operating Elevation |
10,000 ft (3,000 m) |
| Maximum Storage Elevation |
50,000 ft (15,000 m) |
| Operating Humidity |
0 |
| Operating Temperature |
32 |
| Storage Temperature |
5 |
| Input |
| Cord Length |
15 ft |
| Frequency |
50/60 Hz |
| Maximum Input Current |
15A |
| Plug Style |
Straight |
| Plug Type |
NEMA 5-15P |
| Voltage |
120 V |
| Physical |
| Adjustable Mounting Brackets |
2 sets (L-short, L-long) |
| Cord Retention Tray/Cord Organizers |
Yes |
| External Site Ground Pin |
Yes |
| Form Factors Supported |
1U rackmount.0U vertical rackmount undercounter installation supported |
| Material Of Construction |
Metal |
| Rack Size |
1U |
| Style |
Rackmount.Vertical Rackmount Under-Counter |
| Weight (lbs) |
4.10 lbs |
| Surge Protection & Filtering |
| Attenuation |
Up to 50 dB |
| Clamping Voltage |
400 V (N-H, N-G, H-G) |
| EMI/RFI Filtration |
Yes |
| Maximum Surge Current |
180,000 amps |
| Maximum Surge Voltage |
6,000 volts |
| Protection Modes |
N-H, N-G, and H-G |
| Response Time |
1 nanosecond |
| Surge Suppression |
3,600 joules |
| Warranty |
| CEG Amount |
150000 |
| Connected Equipment Guarantee |
Lifetime |
| Product Warranty |
Limited Lifetime |
