CyberPower RELAYIO500 Network Power Management UPS System Network Power Management

CyberPower RELAYIO500 Network Power Management UPS System

$125.67
Use coupon techie for a 5% discount
Manufacturer:CyberPower
Model:RELAYIO500
Condition:New
Availability:Backorder

Available Options

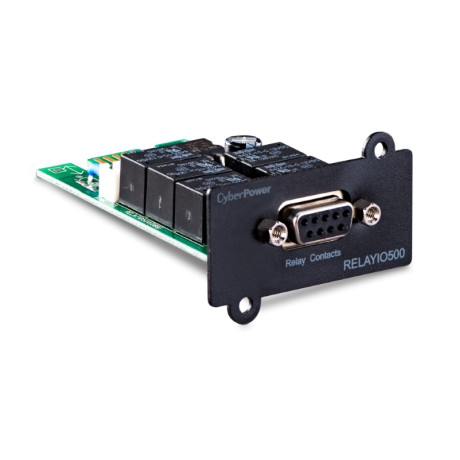

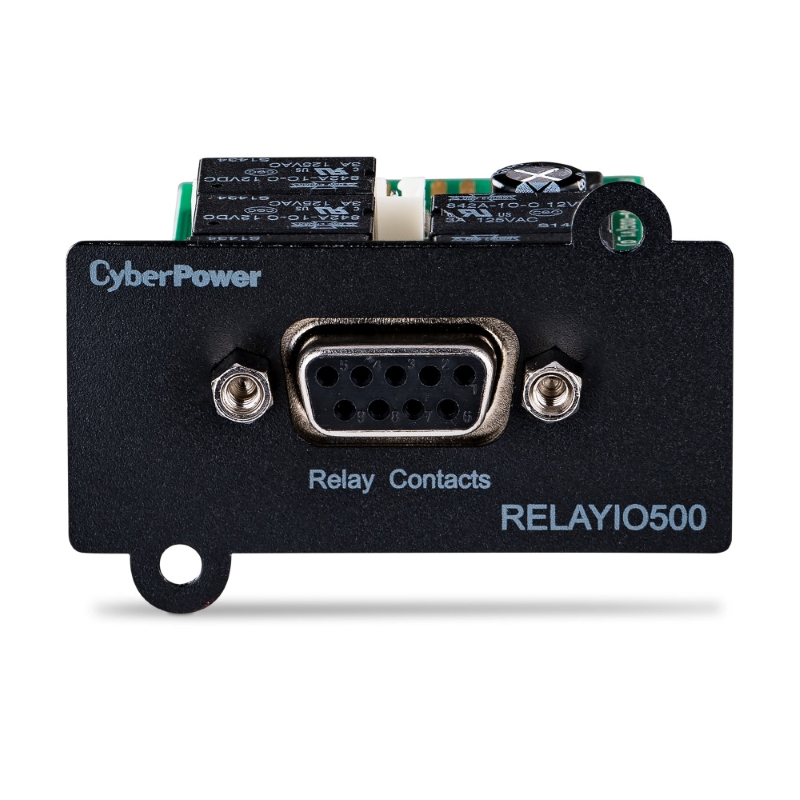

CyberPower's RELAYIO500 is a local management solution that provides users the ability to monitor UPS status and events via 5 contact closure outputs. Easy to install in any compatible CyberPower Smart App UPS with expansion slot.

Input contact closure allows the UPS to be shutdown remotely while on Battery Mode to preserver battery power in the event of a prolonged power outage.

FEATURES

  • Relay I/O Card for UPS status monitoring
  • 5 relay output contact closures indicating UPS status info
  • 1 relay input contact closure to shutdown UPS on Battery Mode
  • Connections via DB9 port
  • Hot-swappable (Plug-n-Play)

COMPATIBILITY

  • OR Series UPS systems
  • PR Series UPS systems
  • OL1000RTXL2U, OL1500RTXL2U, OL1500RTXL2UN, OL2200RTXL2U, OL3000RTXL2U and OL3000RTXL2UHV
Certifications
Environmental RoHS Compliant
Communication
Connection Port DB9
Dimensions (WxHxD) (in) 6.6 x 2.3 x 6.4
Dimensions (WxHxD) (mm) 168 x 58 x 162
Physical RELAYIO500
Weight (kg.) 0.16
Weight (lbs.) 0.35
Compatibility
UPS Models OR Series UPS systems,PR Series UPS systems,OL1000RTXL2U,L1500RTXL2U,OL1500RTXL2UN,OL2200RTXL2UOL3000RTXL2U,OL3000RTXL2UHV
Environmental
Operating Elevation 0
Operating Humidity 0%
Operating Temperature 32
Storage Elevation 0
Storage Relative Humidity 0%
Storage Temperature 14
General
Contact Closure Outputs 5
External S/D Voltage 7.5V
Input Signal Contact 1
Output Relay Rating (Max.) 30VCD/125VAC, 3A (per relay)
Type Relay I/O UPS Monitoring Card
Warranty
Product Warranty 3 Years Limited
