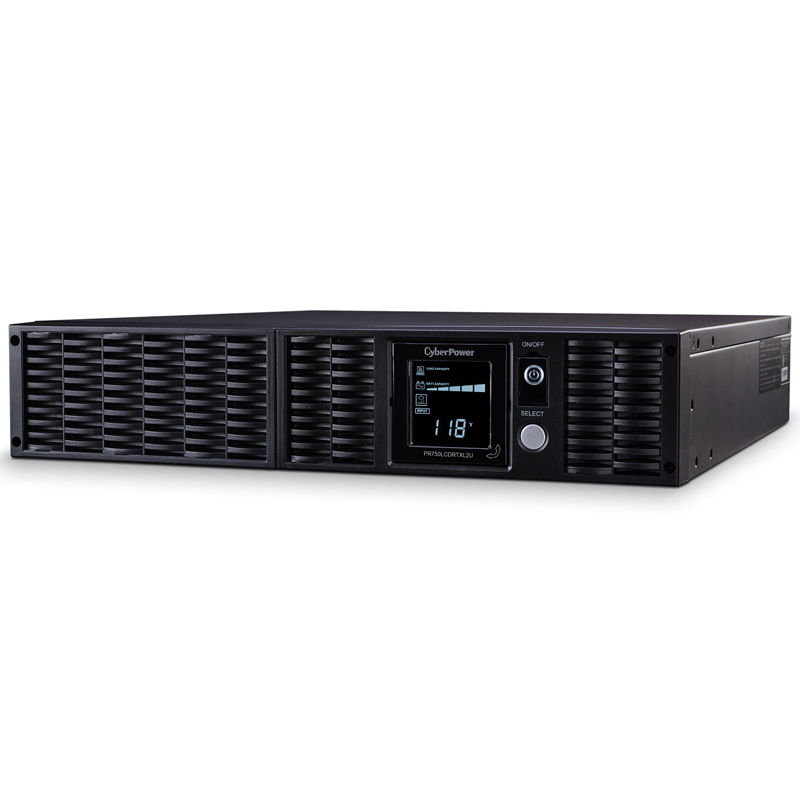

The CyberPower Smart App Sinewave PR750LCDRTXL2U uninterruptible power supply (UPS) with LCD panel and sine wave output is Active PFC compatible for safeguarding mission-critical servers, telecom equipment, and VoIP and internetworking hardware that require seamless pure sine wave power.
This UPS unit incorporates microprocessor -based digital control and includes PowerPanel Business Edition Software providing the user unsurpassed flexibility and control.
A Three-Year Warranty ensures that this UPS has passed our highest quality standards in design, assembly, material or workmanship and further protection is offered by a $400,000 Connected Equipment Guarantee.
Typical Applications
- Servers
- Workstations
- Network Devices
- Telecom Equipment
Features
- 750VA / 675W
- Line Interactive Topology
- Full AVR Buck/Boost
- GreenPower UPS
- 2U Rack Mount/Tower Convertible
- Multifunction Rotatable LCD
- SNMP/HTTP Remote Management
- 8 Outlets / USB, Serial, and EPO Ports
- EMI/RFI Filters
- PowerPanel Business Software
- 3-Year Warranty
| Battery |
| Battery Quantity |
4 |
| Battery Size |
12V/7Ah |
| Battery Type |
Sealed Lead-Acid |
| EMI/RFI Filtration |
Yes |
| Extended Battery Option |
BP48V45ART2U |
| Hot-Swappable |
Yes |
| Replacement Battery Cartridge |
RB1270X4F |
| Replacement Battery Cartridge Quantity |
1 |
| Runtime At Full Load |
13 Minutes |
| Runtime At Half Load |
30 Minutes |
| Surge Suppression |
2,060 J |
| Typical Recharge Time |
Less than 6 hours (90% charged) |
| User Replaceable |
Yes |
| Certifications |
| Environmental |
RoHS Compliant |
| Safety |
UL1778.CSA C22.2 NO.107.3.FCC DOC Class A |
| Environmental |
| AC Mode Thermal Dissipation |
60 BTU/Hr |
| Maximum Operating Elevation |
10,000 ft (3,000 m) |
| Maximum Storage Elevation |
50,000 ft (15,000 m) |
| Operating Humidity |
0 |
| Operating Temperature |
32 |
| Storage Temperature |
5 |
| General |
| Active PFC Compatible |
Yes |
| Energy Saving |
GreenPower UPS Bypass |
| UPS Topology |
Line Interactive |
| Input |
| Cord Length |
10 ft |
| Frequency Range |
47 |
| Input Voltage Range |
80 |
| Plug Style |
Right Angle, 45.Deg Offset Right |
| Plug Type |
NEMA 5-15P |
| Voltage |
Nominal 120V VAC |
| Management & Communications |
| Audible Alarms |
On Battery.Low Battery.Overload. |
| Cable Management |
USB Cable, Serial Cable, EPO Cable |
| Contact Closure |
Yes |
| Emergency Power Off (EPO) Port |
Yes |
| HID Compliant USB Port |
Yes |
| Led Indicators |
Power On.Wiring Fault |
| Multifunction LCD Panel |
Displays |
| Serial Port |
Yes |
| SNMP / HTTP Remote Monitoring |
Yes, with optional RMCARD205 |
| Software |
PowerPanel Business Edition |
| Output |
| Automatic Voltage Regulation |
Boost 1 +30%.Boost 2 +14%.Buck -12% |
| On Battery Frequency |
50/60 Hz |
| On Battery Voltage |
120 VAC |
| On Battery Waveform |
Sine Wave |
| Outlet Type |
NEMA 5-15R |
| Overload Protection |
Internal Circuitry Limiting.Circuit Breaker |
| Rated Power Factor |
0.9 |
| Transfer Time |
4 ms |
| VA |
750 VA |
| Watts |
675 W |
| Physical |
| Form Factor |
Rack/Tower |
| Rack Size |
2U |
| Shipping Weight (lbs) |
59.7 lbs |
| Weight (lbs) |
53 lbs |
| Warranty |
| CEG Amount |
400000 |
| Connected Equipment Guarantee |
Lifetime |
| Product Warranty |
3 Years Limited |
